Overview

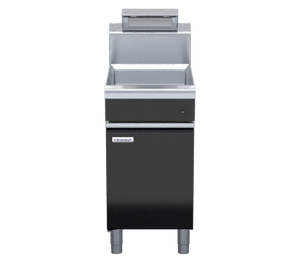

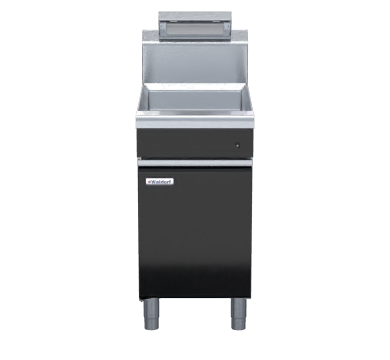

Waldorf Bold CSB8450E 450mm Electric Chip Scuttle

The Waldorf Bold CSB8450E is a 450mm electric chip scuttle designed to work in conjunction with a deep fryer, holding freshly cooked chips at serving temperature using a 1.0kW infrared ceramic heater. Built from heavy-gauge 304 stainless steel throughout, it is engineered for the demands of high-volume commercial kitchens where consistent chip quality and rapid service are essential.

Part of Waldorf's fully modular Bold range, the CSB8450E integrates seamlessly alongside other Bold series equipment to create a cohesive cooking line. The unit arrives in a default black finish with additional colour options available, and its straightforward on/off switch, removable drain screen, and stainless steel pan make daily operation and cleaning quick and practical.

Key Benefits

• Keeps chips warm and crisp at service temperature immediately after frying, reducing waste and maintaining food quality during busy periods.
• Infrared ceramic heater delivers gentle, even radiant heat that warms without over-drying chips sitting in the pan.
• Removable stainless steel drain screen allows excess oil to drain away from finished chips, improving product presentation and texture.
• Fully modular Bold range design means the unit aligns perfectly with other Waldorf Bold cooking equipment for a neat, space-efficient kitchen line.
• Heavy-gauge stainless steel construction throughout resists corrosion and withstands the rigours of continuous commercial use.
• Simple on/off power and heater switch minimises training requirements and speeds up start-of-service setup.
• Adjustable feet on heavy-duty 63mm diameter legs allow levelling on uneven floors, ensuring stable and safe operation.
• Easy-access components and straightforward construction support fast, low-cost servicing and minimal downtime.

Key Features

• 450mm wide unit sized to complement standard commercial deep fryers in a cooking line.
• 1.0kW infrared ceramic heater maintains chip temperature without excessive drying.
• Stainless steel pan provides a hygienic, easy-clean holding vessel for cooked chips.
• Lift-out stainless steel drain screen separates excess oil from chips during holding.
• Bull-nose welded 1.5mm stainless steel construction on main body for durability.
• Splashback and side panels fabricated from 1.2mm stainless steel.
• Front panels finished in black vitreous enamel as standard; additional colour options available.
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet.
• On/off power and heater switch for straightforward single-point control.
• 240V single-phase power supply; 1kW rated, supplied with 1P+N+E 4.5A three-pin 10A cordset fitted.
• Fully modular design for integration within the Waldorf Bold cooking suite.
• Manufactured in New Zealand.
• 24-month warranty.

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1224
• Weight (kg): 340.0
• Colour: Custom
• Material: 304 Stainless Steel
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 24.0
• Temperature Range: Warming
• Fuel Type: Electric
• Power Rating: 1kW|1P+N+E 4.5A 3 pin 10A cordset fitted|220-240Vac|50/60Hz
• Power Supply: 240V Single Phase
• Voltage (V): 240
• Interior Lighting: Infrared Heat Lamp
