Overview

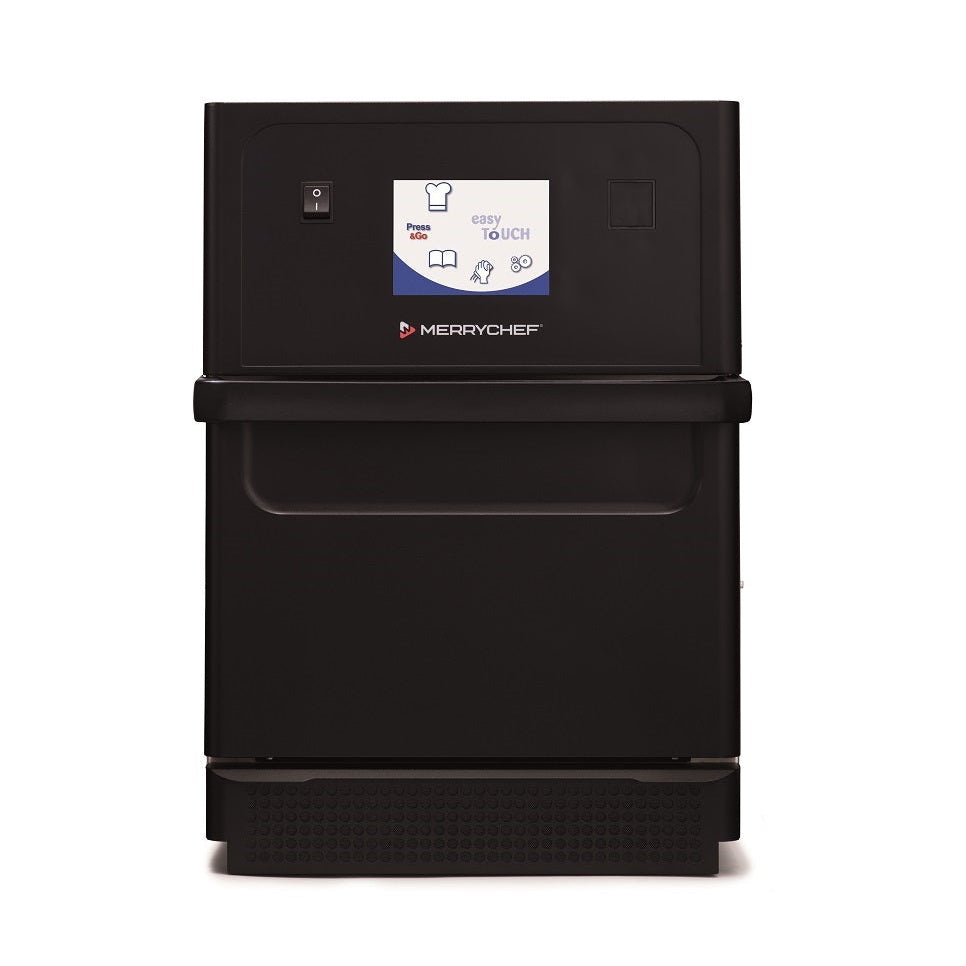

Merrychef e1s Advanced High Speed Combination Oven - Black

The Merrychef e1s is a commercial-grade high speed combination oven that harnesses Accelerated Cooking Technology, simultaneously combining impingement, microwave and convection heat to cook up to 10 to 12 times faster than a conventional oven. Designed for busy cafes, restaurants and commercial kitchens, it operates on a standard single-phase 15A supply with a standard 3-pin plug, making installation straightforward and eliminating the need for dedicated electrical infrastructure.

Despite its compact 407mm wide footprint, the e1s delivers serious throughput with an oven cavity accommodating plates up to 306mm x 308mm (12 inches). A ventless design via a built-in catalytic converter means it can be positioned without a canopy exhaust, while a cool-to-touch black exterior over stainless steel allows zero clearance at the sides and back, maximising placement flexibility on benches as shallow as 500mm.

Key Benefits

• Cooks up to 10 to 12 times faster than a conventional oven, dramatically reducing ticket times during service peaks.
• Plug-and-play 15A single-phase connection means no costly electrical upgrades or hardwiring are required.
• Ventless operation through a built-in catalytic converter allows installation without an overhead exhaust canopy, reducing fitout costs.
• Zero side and back clearance requirement makes it practical for tight bench spaces and compact kitchens.
• Stores up to 1,024 multi-stage recipe programs, ensuring consistent results across staff and shifts.
• Best-in-class standby energy consumption of just 0.7 kWh keeps running costs low during quieter trading periods.
• Quiet operation at 52 dBA in standby mode supports a comfortable front-of-house or open-kitchen environment.
• USB connectivity enables fast menu updates and recipe data transfer without manual reprogramming.
• Built-in diagnostic testing simplifies troubleshooting and helps minimise unplanned downtime.

Key Features

• Accelerated Cooking Technology combining impingement, microwave and convection heat simultaneously for rapid, even results.
• 2,200W convection element and 800W microwave output.
• Oven cavity sized to suit plates up to 306mm x 308mm (12 inch).
• Compact 407mm wide footprint compatible with 500mm bench depths.
• Cool-to-touch black exterior over stainless steel construction with zero required clearance at sides and back.
• Ventless design via integrated catalytic converter, no exhaust canopy required.
• Colour easyTouch icon-driven touchscreen control panel.
• Capacity to store up to 1,024 multi-stage recipe programs.
• Each program supports up to 6 cooking stages with individually programmable time, microwave power level and user instructions.
• Precise temperature range adjustable from 100°C to 260°C.
• USB port for easy menu updates and recipe data transfer.
• Built-in diagnostic testing function.
• Standby energy consumption of 0.7 kWh for efficient power use.
• Quiet operation rated at 52 dBA in standby mode.
• Front-mounted air filter for easy access and routine maintenance.
• Large rounded-edge cavity interior for straightforward cleaning.
• Single-phase 230-240V, 50Hz, 1P+N+E, 15A, 3-pin plug supply.
• Weight: 46kg.
• Dimensions: 407mm wide x 538mm deep x 588mm high.
• 2-year parts and labour warranty.

Specifications

• Width (mm): 407
• Depth (mm): 538
• Height (mm): 588
