Overview

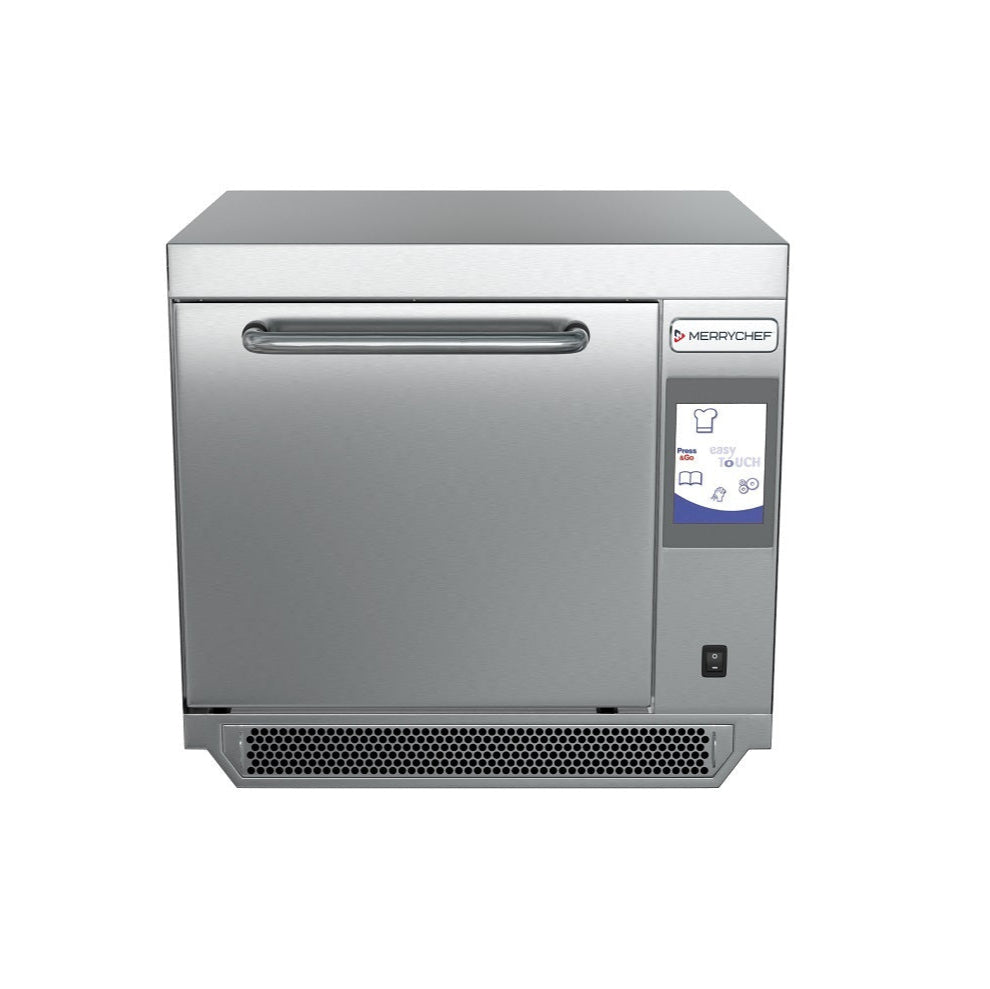

Merrychef e3 HP Commercial High-Speed Convection Microwave Oven

The Merrychef e3 HP is a professional-grade high-speed cook oven that pairs a 1kW microwave output with 3kW convection heating, achieving cook times up to five times shorter than those of a standard convection oven. It is purpose-built for demanding food service settings such as cafes, bakeries, quick-service restaurants, convenience stores, and hotels, delivering reliably consistent browning, crisping, and heating results across diverse menu items including sandwiches, pastries, pizzas, breakfast dishes, and grab-and-go snacks.

Constructed from heavy-duty stainless steel and suited to countertop or benchtop installation, the e3 HP incorporates a built-in catalytic converter that enables ventless operation, removing the requirement for a traditional extraction hood in most installations. The colour easyTouch icon-driven touchscreen gives operators access to an extensive bank of stored recipe programs, while USB and ethernet connectivity, self-diagnostics, and a cool-to-touch door exterior keep daily operation and upkeep straightforward even in fast-paced, high-turnover environments.

Key Benefits

• Delivers cook times up to five times faster than a conventional convection oven, cutting customer wait times and lifting throughput during peak service.
• Ventless operation through the integrated catalytic converter enables flexible placement in front-of-house or space-restricted locations where a traditional extraction hood is not practicable.
• Holds a library of up to 1,024 multi-stage recipe programs, with as many as six independently programmable stages per program, ensuring repeatable outcomes and reducing the training burden on staff.
• Three selectable cooking power levels allow operators to balance speed against energy use, making the oven equally suited to busy rush periods and quieter trading windows.
• USB port and MenuConnect ethernet connectivity support rapid remote menu updates and diagnostics, minimising downtime and streamlining program management across multiple sites.
• The turntable cooking system distributes heat evenly throughout the cavity, producing consistent browning without the need to manually reposition food items.
• Quick preheat function reduces idle time at start-up, allowing kitchens to reach service-ready temperature with minimal delay.
• Self-diagnostics capability continuously monitors internal components, supporting proactive maintenance and lowering the likelihood of unplanned breakdowns.
• Cool-to-touch door exterior and a front-access air filter enhance day-to-day safety and hygiene, making routine cleaning and servicing simple for kitchen staff.

Key Features

• Advanced cooking technology combining 1kW microwave output and 3kW convection heating for a total power consumption of approximately 4.7kW.
• Oven cavity sized to accept trays measuring up to 297mm x 321mm (11 inches x 12.7 inches).
• Two rack positions for flexible loading and simultaneous cooking of multiple items.
• Turntable system included for even heat distribution and consistent browning.
• Ventless cooking capability via an integrated catalytic converter; no extraction hood required in most installations.
• Colour easyTouch icon-driven touchscreen control panel for intuitive, icon-based operation.
• Program storage accommodating up to 1,024 multi-stage recipes, each supporting as many as six individual stages with independently configurable cook times, microwave power settings, and user instructions.
• Three cooking power levels available for energy-efficient operation across varying menu requirements.
• Quick preheat function for rapid start-up.
• Precise temperature setting range from 100°C to 275°C.
• USB port for straightforward menu updates and data transfer.
• MenuConnect ethernet connectivity enabling off-site menu management and remote diagnostic access.
• Self-diagnostics system for continuous component monitoring.
• Cool-to-touch door exterior for operator safety.
• Easy-to-clean stainless steel interior.
• Front-facing air filter with easy access for routine maintenance.
• Stainless steel construction throughout.
• Countertop/benchtop installation.
• easyTouch touchscreen control interface.
• Electrical supply: 400-415V, 50Hz, 2P+N+E, 20A, 5-pin plug.
• Country of origin: United Kingdom.

Specifications

• Width (mm): 590
• Depth (mm): 559
• Height (mm): 551
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 71
• Packed Width (mm): 600.0
• Packed Height (mm): 570.0
• Packed Depth (mm): 570.0
• Shipping Cubic: 0.194940000m3
• Material: Stainless Steel
• Country of Origin: UK
• Warranty (months): 24
• Installation Type: Countertop
• Control Type: easyTouch Touchscreen
• Mounting Type: Benchtop
• Fuel Type: Electric
• Power Rating: 20A 5 pin plug|2P+N+E|4.7 kW|400-415V|50Hz
• Power Supply: 400-415V 50Hz 2P+N+E 20A
• Voltage/Phase: 230V 50Hz Single Phase
• Temperature Range: 100°C to 275°C
