Overview

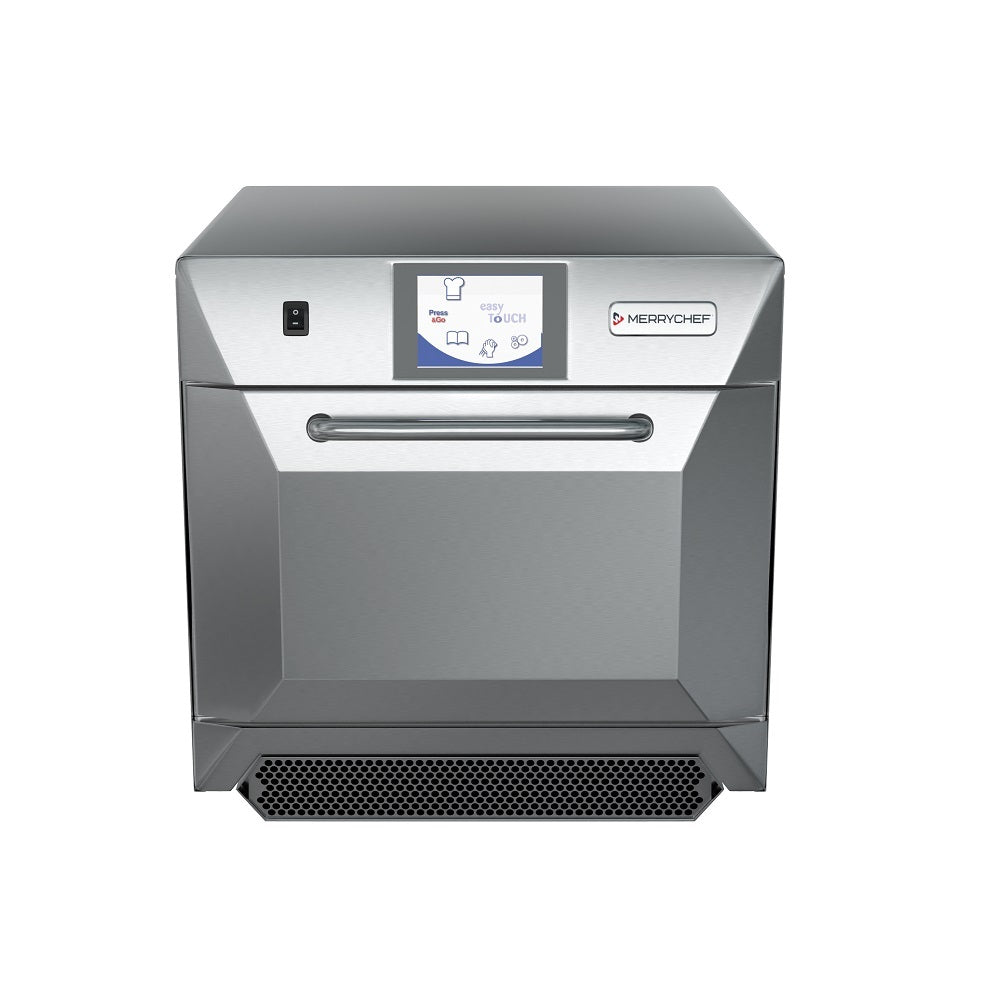

Merrychef e4 HP Rapid High Speed Cook Oven

The Merrychef e4 HP is a commercial countertop rapid cook oven that combines three heat technologies — microwave, convection, and impingement — through Merrychef's Accelerated Cooking Technology to deliver cooking speeds up to 15 times faster than a conventional convection oven. Delivering 1.5kW microwave output alongside 3.2kW convection heating at a total draw of 6.2kW, it suits cafés, quick service restaurants, bakeries, hotels, convenience stores, and food court operations demanding consistent, high-throughput results without sacrificing food quality.

The e4 HP's built-in catalytic converter enables ventless operation in many installations, removing the requirement for a traditional extraction hood and allowing flexible placement including front-of-house positions. Its wide cavity accommodates up to a 305mm x 369mm (12-inch) plate, while the colour easyTouch icon-driven touchscreen stores up to 1,024 programmable multi-stage recipes for fast, repeatable output with minimal staff training.

Key Benefits

• Cooks up to 15 times faster than a conventional convection oven, dramatically increasing throughput during peak service periods.
• Ventless catalytic converter technology eliminates the need for a traditional extraction hood in many settings, reducing installation costs and allowing flexible bench placement.
• Stores up to 1,024 multi-stage recipe programs so staff can achieve consistent results at the touch of an icon, reducing errors and training time.
• USB menu transfer and Ethernet (MenuConnect) connectivity allow remote menu updates and diagnostics, minimising downtime and simplifying menu management across multiple sites.
• Cool-to-touch door exterior and front-accessible air filter improve operator safety and make routine cleaning and maintenance straightforward in a busy kitchen.
• Self-diagnostics capability continuously monitors key components, enabling early identification of issues before they cause service disruption.
• Precise temperature control across a 100°C to 275°C range suits a wide variety of menu items from delicate pastries through to proteins and plated meals.
• Countertop form factor with stainless steel construction keeps the footprint compact while providing the durability required for demanding daily commercial use.

Key Features

• Accelerated Cooking Technology combining three heat technologies: microwave, convection, and impingement for rapid, even cooking results.
• 1.5kW microwave output combined with 3.2kW convection heating; approximately 6.2kW total power consumption.
• Cooking speeds up to 15 times faster than a conventional convection oven.
• Oven cavity suits up to 305mm x 369mm / 12-inch plate size.
• 2 rack positions for flexible load configuration.
• Turntable included for even browning.
• Built-in catalytic converter enabling ventless cooking capability in suitable installations.
• Colour easyTouch icon-driven touchscreen control panel.
• Capacity to store up to 1,024 multi-stage recipe programs.
• Each program supports up to six stages with individually programmable cooking times, microwave power settings, and operator instructions.
• 3 cooking power levels for energy-efficient operation and versatile baking performance.
• Quick preheat function to reduce wait times at start of service.
• Precise temperature setting range from 100°C to 275°C.
• USB port for easy menu updates and data transfer.
• MenuConnect Ethernet connectivity for remote menu updating and remote diagnostics.
• Self-diagnostics system for continuous component monitoring.
• Cool-to-touch door exterior for operator safety.
• Front-facing air filter with easy access for routine cleaning and maintenance.
• Easy-clean interior cavity.
• Stainless steel construction throughout.
• Countertop / benchtop installation type.
• Electrical supply: 400–415V, 50Hz, 2P+N+E, 20A, 5-pin plug.
• Country of origin: United Kingdom.
• Dimensions: 584mm (W) x 719mm (D) x 591mm (H).

Specifications

• Width (mm): 584
• Depth (mm): 719
• Height (mm): 591
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 102
• Packed Width (mm): 600.0
• Packed Height (mm): 600.0
• Packed Depth (mm): 800.0
• Shipping Cubic: 0.288000000m3
• Material: Stainless Steel
• Country of Origin: UK
• Warranty (months): 12
• Installation Type: Countertop
• Control Type: easyTouch Touchscreen
• Mounting Type: Benchtop
• Fuel Type: Electric
• Power Rating: 20A 5 pin plug|2P+N+E|400-415V|50Hz|6.2 kW
• Power Supply: 400-415V 50Hz 2P+N+E 20A
• Voltage/Phase: 230V 50Hz Single Phase
• Temperature Range: 100°C to 275°C
