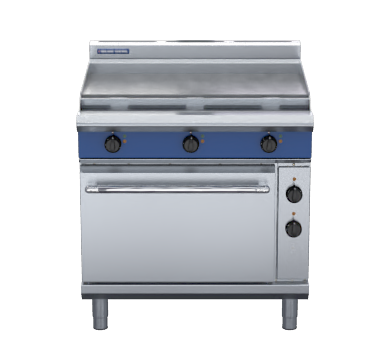

Blue Seal E506A Evolution Series 900mm Electric Range Static Oven

The Blue Seal E506A Evolution Series combines a full 900mm electric griddle cooktop with a 2/1 GN electric static oven in a single freestanding unit, purpose-built for high-volume commercial kitchens. Manufactured in New Zealand from heavy-duty 304 stainless steel, it delivers consistent, reliable performance across both grilling and baking applications in one compact footprint.

The griddle section runs on three 3.4kW elements across the 900mm cooking surface, while the oven below operates on a dedicated 6.5kW heating element with six temperature settings and a simmer option, covering a range of 90 to 300°C. Practical design details throughout — including a vitreous enamelled oven liner, cool-touch door handle, adjustable feet and integrated rollers — make this range suitable for demanding daily service.

Key Benefits

• Combines a 900mm griddle and a full-size 2/1 GN static oven in one unit, reducing the equipment footprint while expanding cooking capability.
• GN 2/1 oven capacity with four rack positions accommodates large gastronorm trays, supporting high-volume baking and roasting in a single cook cycle.
• Six temperature settings plus a dedicated simmer setting give chefs precise control across a wide range of cooking tasks, from gentle sauces to high-heat roasting.
• The vitreous enamelled oven liner resists baked-on residue and wipes clean quickly, reducing cleaning time between services.
• Cool-touch stainless steel door handle protects staff during busy service periods when the oven is operating at high temperatures.
• Adjustable feet and two additional rollers make repositioning straightforward during cleaning or kitchen reconfiguration without requiring additional tools.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use and are easy to operate even with wet or gloved hands.
• Optional hot plate elements provide added cooking versatility, allowing the unit to be configured to suit evolving menu requirements.
• Designed for straightforward installation, cleaning and servicing, minimising downtime and reducing total cost of ownership.

Key Features

• 900mm wide electric griddle cooktop with smooth mild steel surface (ribbed or chrome optional)
• Three griddle heating elements rated at 3.4kW each, totalling 10.2kW across the cooktop
• 2/1 GN electric static oven with 6.5kW heating element
• Oven cavity dimensions: 665mm wide x 590mm deep x 400mm high
• GN 2/1 capacity with four rack positions; rack size 650mm x 600mm
• Six temperature settings including a simmer setting; thermostat range 90-300°C
• Total power rating: 16.7kW, 400-415Vac, 50/60Hz, 3P+N+E, 30A
• Drop-down oven door with welded frame for ease of access
• Fully welded and vitreous enamelled oven liner for durability and easy cleaning
• Cool-touch stainless steel door handle for operator safety
• Heavy-duty 304 stainless steel construction throughout
• Heavy-duty reinforced control knobs
• 165mm splashback included; overall height including splashback 1085mm
• Adjustable feet with two additional rollers for mobility and levelling
• Freestanding, freestanding mounting with 12mm griddle plate thickness
• Optional hot plate elements available
• Manufactured in New Zealand
• Designed for easy cleaning, installation and servicing

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 260
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Smooth Mild Steel (Ribbed or Chrome Optional)
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 6
• Power Rating: 16.7 kW|3P+N+E; Phase loading|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
