Overview

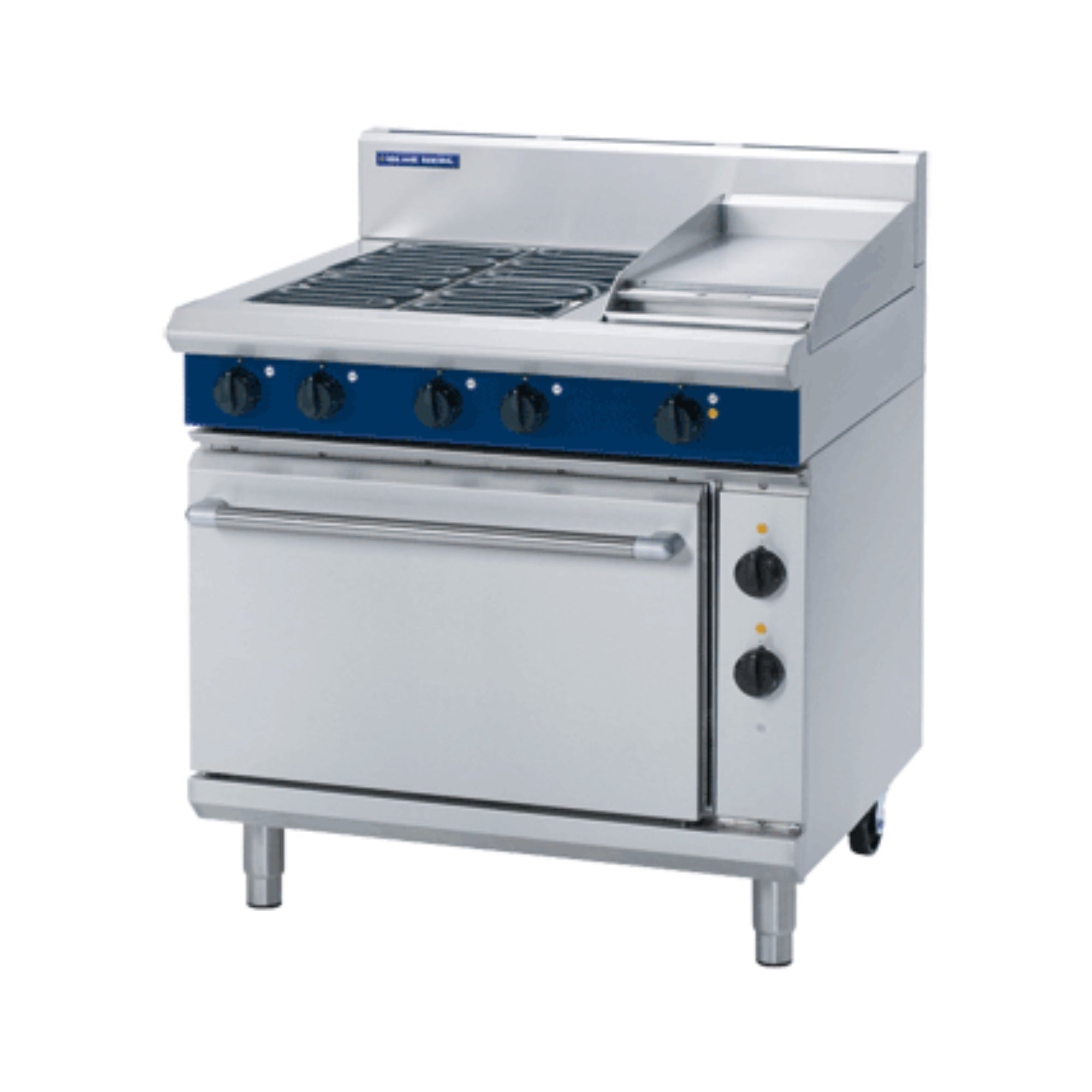

Blue Seal E506C Evolution Series 900mm Electric Range Static Oven

The Blue Seal E506C Evolution Series is a 900mm freestanding electric range combining a four-burner radiant element cooktop, a 300mm right-hand griddle, and a full-size 2/1 GN static oven into a single heavy-duty unit purpose-built for high-volume commercial kitchens. Constructed from heavy-duty stainless steel with a fully welded and vitreous enamelled oven liner, the E506C delivers consistent performance across all cooking zones while standing up to the rigours of daily professional use.

The cooktop features four 2.4kW open radiant elements alongside a 3.4kW griddle element, giving chefs flexible, simultaneous cooking options. Inside the oven, 6.5kW heating elements work across six temperature settings from simmer to 300°C, with GN 2/1 capacity and four-position racking to accommodate large batch output. Practical design details including a cool-touch door handle, drop-down door with welded frame, adjustable feet, and two additional rollers make the unit straightforward to operate, clean, position, and service.

Key Benefits

• Four radiant elements plus a dedicated griddle zone allow multiple cooking methods to run simultaneously, reducing ticket times during peak service.
• Full GN 2/1 oven cavity with four rack positions handles large batch baking and roasting in a single load, supporting high-volume output.
• Six oven temperature settings including a simmer setting give precise control over a wide range of dishes from gentle sauces to high-heat roasting.
• Vitreous enamelled oven liner resists grease build-up and wipes clean quickly, reducing downtime between services.
• Cool-touch stainless steel door handle and drop-down door design improve safety and access when loading or checking large trays.
• Adjustable feet combined with two integrated rollers make repositioning the unit easy during cleaning or kitchen reconfiguration.
• Optional hot plate elements allow the cooktop configuration to be tailored to specific kitchen workflows without replacing the unit.
• Heavy-duty reinforced control knobs withstand constant use in a busy kitchen environment, maintaining reliable temperature management over time.

Key Features

• 4 x 2.4kW open radiant elements on the cooktop
• 1 x 3.4kW griddle element; 300mm griddle positioned on the right-hand side as standard
• 2/1 GN electric static oven with 6.5kW heating elements
• Six oven temperature settings including a simmer setting; thermostat range 90–300°C
• GN 2/1 oven capacity with four-position racking
• Oven internal dimensions: 665mm W x 590mm D x 400mm H
• Rack size: 650mm x 600mm
• Fully welded and vitreous enamelled oven liner for durability and easy cleaning
• Heavy-duty stainless steel construction throughout
• Heavy-duty reinforced control knobs
• Drop-down oven door with welded frame
• Cool-touch stainless steel door handle
• 165mm splashback included
• Adjustable feet and 2 additional rollers for mobility and levelling
• Electrical requirements: 19.5kW, 400–415Vac, 50/60Hz, 3P+N+E, 30A per phase
• Freestanding installation; manual knob temperature control
• Optional hot plate elements available in place of radiant elements
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 260
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Smooth Mild Steel (Ribbed or Chrome Optional)
• Number of Burners: 6
• Cooking Surface Area (mm): 900 x 480
• Power Rating: 19.5 kW|3P+N+E; Phase loading|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
