Overview

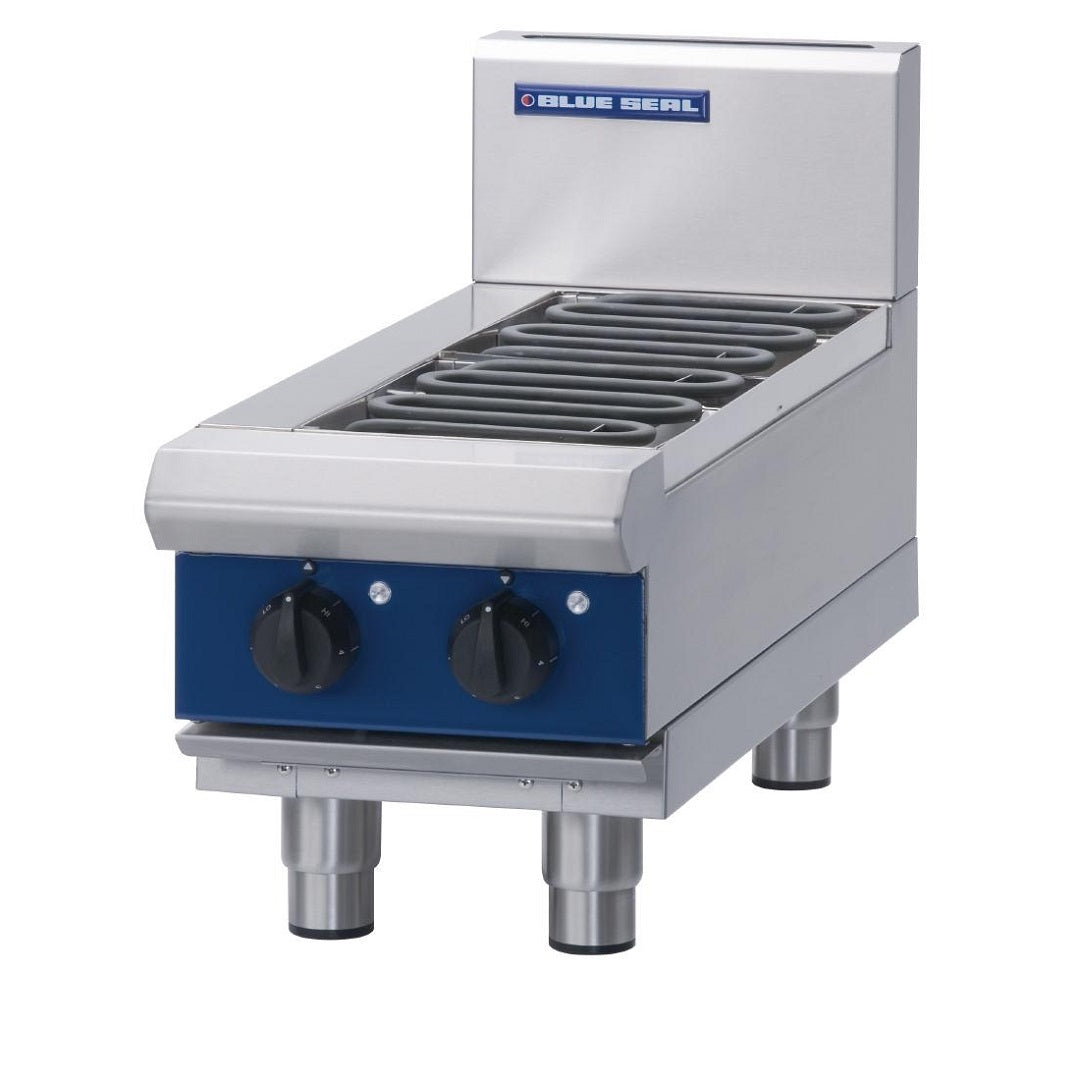

Blue Seal E512D-B Evolution Series 300mm Electric Cooktop – Bench Model

The Blue Seal E512D-B is a compact 300mm bench-model electric cooktop from the Evolution Series, purpose-built for commercial kitchens, cafés, restaurants, and food service operations where reliable electric cooking performance is needed in a space-efficient footprint. Equipped with two 2.4 kW radiant elements and energy regulator controls, it delivers fast heat-up times, even heat distribution, and precise temperature adjustment across the full cooking range, supporting everything from rapid boiling to gentle simmering.

Manufactured in New Zealand from heavy-duty 304 stainless steel, the E512D-B is engineered to withstand the rigours of daily commercial use. Its fully modular design integrates seamlessly with other Blue Seal Evolution Series equipment, making it equally suited as a standalone cooking station or as part of a larger modular cooking suite. Optional solid hot plate elements are available for operators requiring a different cooking surface, and the unit's straightforward layout simplifies cleaning, installation, and servicing.

Key Benefits

• Two independent 2.4 kW radiant elements provide a combined 4.8 kW of cooking power, allowing simultaneous preparation of multiple dishes at different heat settings.
• Energy regulator controls on each element enable precise heat adjustment from high to low and simmer, giving chefs consistent control throughout busy service periods.
• Compact 300mm width minimises bench space consumption, making the unit ideal as a primary or secondary cooking station in tight commercial kitchen layouts.
• Fully modular Evolution Series compatibility allows the cooktop to be paired with other Blue Seal units to build a custom cooking suite that grows with operational needs.
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves withstand repeated daily use without requiring frequent replacement.
• Four stainless steel bench legs with adjustable feet, plus two additional rollers, allow the unit to be levelled on uneven surfaces and repositioned with ease.
• Straightforward design with easy-access components simplifies routine cleaning and reduces downtime during service intervals.
• Optional solid hot plate elements offer an alternative cooking surface to suit different menu requirements without needing a separate appliance.

Key Features

• 2 x 2.4 kW radiant elements, 4.8 kW total power output
• Energy regulator controls on each element for variable heat adjustment
• Power indicator lights for each element control
• Heavy-duty 304 stainless steel construction throughout
• 165 mm splashback included
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves
• Four stainless steel bench legs with adjustable feet
• Two additional rollers for repositioning
• Removable spill tray for easy cleaning
• Bench model – no undershelf
• Fully modular design compatible with the Blue Seal Evolution Series cooking suite
• Optional solid hot plate elements (2 kW) available as an alternative cooking surface
• Electrical requirements: 4.8 kW, 230–240 V AC, 1P+N+E, 20 A, 50/60 Hz
• Dimensions: 300 mm (W) x 812 mm (D) x 485 mm (H, including splashback)
• Manufactured in New Zealand
• 12-month warranty

Specifications

• Width (mm): 300
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 70
• Packed Width (mm): 870.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 350.0
• Shipping Cubic: 0.202493000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 2
• Cooking Surface Area (mm): 300 x 480
• Power Rating: 1P+N+E|20A|230-240Vac|4.8 kW|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230V Single Phase
