Overview

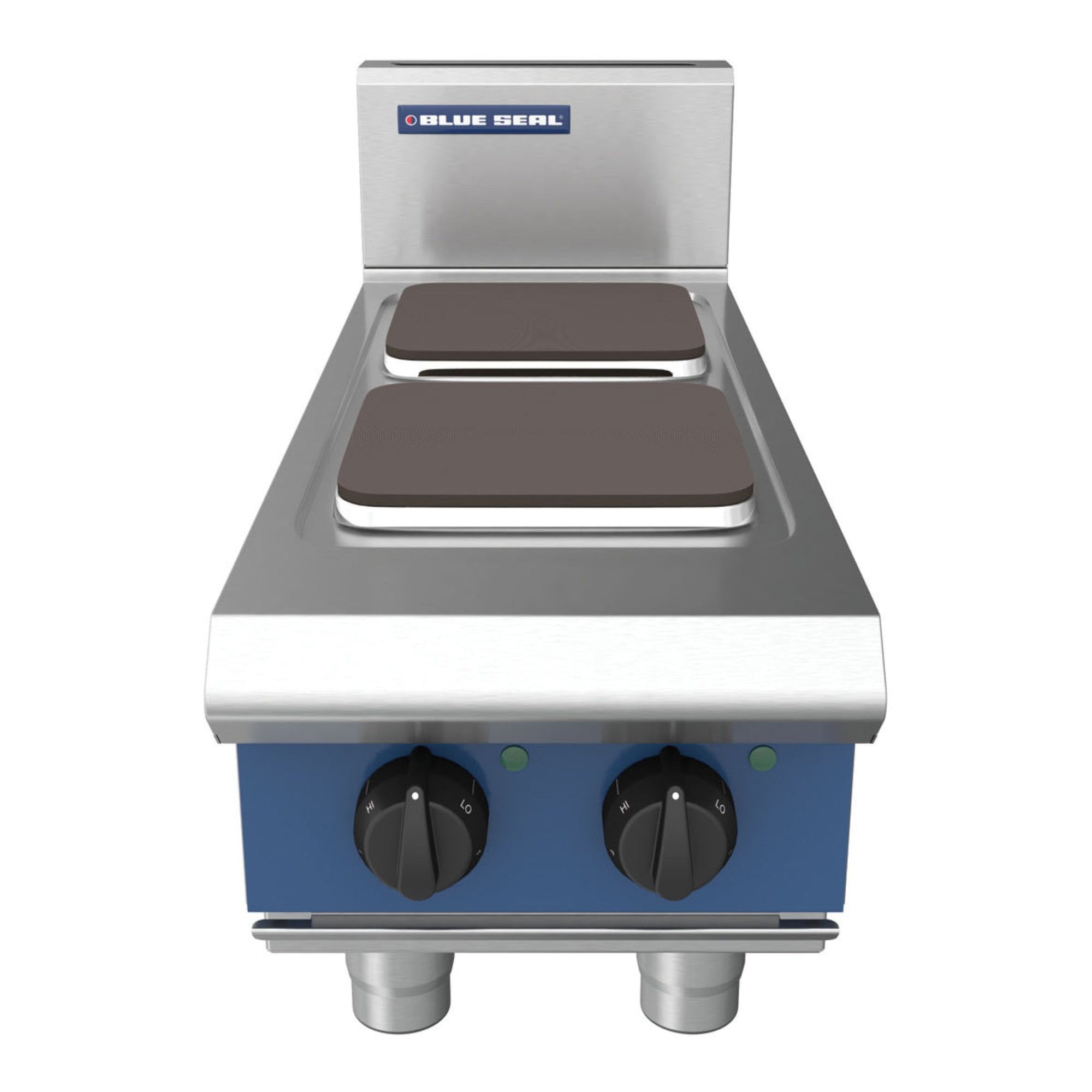

Blue Seal E512S-B Evolution Series 300mm Electric Cooktop Sealed Hobs – Bench Model

The Blue Seal E512S-B is a compact 300mm bench model electric cooktop from the Evolution Series, purpose-built for commercial kitchens, cafés, food kiosks, and hospitality venues where reliable cooking performance is required in a tight footprint. Fitted with two 2.6 kW sealed cast iron hot plate elements, it delivers consistent, even heat across a range of cooking tasks including boiling, simmering, sautéing, and pan cooking, all on a single-phase power supply.

Constructed from heavy-duty 304 stainless steel with an aluminised steel internal construction, the E512S-B is designed for long-term durability and easy day-to-day maintenance. Its bench model format allows flexible placement on existing benchtops, equipment stands, or refrigeration bases, making it a practical choice for modular kitchen layouts or operations where floor space is limited.

Key Benefits

• Compact 300mm width makes it well suited to smaller kitchens, food kiosks, and modular cooking setups without sacrificing usable cooking area.
• Sealed cast iron hot plate elements prevent spills and food debris from reaching internal components, improving hygiene and reducing cleaning time.
• Each 2.6 kW element includes thermal protection, helping prevent damage from overheating and extending the working life of the cooktop.
• Individual power indicator lights give staff instant visual confirmation of which elements are active, supporting safer, more efficient kitchen operation.
• Large, heat-resistant reinforced control knobs are easy to operate in a fast-paced commercial environment, even with wet or gloved hands.
• Four adjustable stainless steel bench legs allow the unit to be levelled on uneven surfaces, ensuring stable, safe operation.
• Bench model configuration enables flexible installation on existing surfaces or equipment, avoiding the cost and complexity of floor-mounted or built-in solutions.
• Single-phase electrical connection simplifies installation in venues where three-phase power is unavailable or impractical.
• Part of the Blue Seal Evolution Series, ensuring compatibility with other modular units for a coordinated, scalable kitchen layout.

Key Features

• Two 2.6 kW sealed cast iron hot plate elements, totalling 5.2 kW output
• Thermal protection on each element to guard against overheating
• Two-position heat switch per element for variable power control
• Individual power indicator light for each element
• Vitreous enamelled control panel for durability and easy cleaning
• Large heat-resistant reinforced control knobs
• 304 stainless steel exterior construction
• Aluminised steel internal construction
• Four adjustable stainless steel bench legs (80 mm to 105 mm height range)
• 165 mm stainless steel splashback included
• Bench model design for placement on benchtops, equipment stands, or refrigeration bases
• Freestanding installation type
• Single-phase power supply: 230–240 V AC, 1P+N+E, 22 A, 50/60 Hz
• Cooking surface area: 300 mm x 480 mm
• Country of origin: New Zealand

Specifications

• Width (mm): 300
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Sealed Hob Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Cooking Surface Area (mm): 300 x 480
• Number of Burners: 2
• Power Rating: 1P+N+E|22A|230-240Vac|5.2 kW|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230V Single Phase
