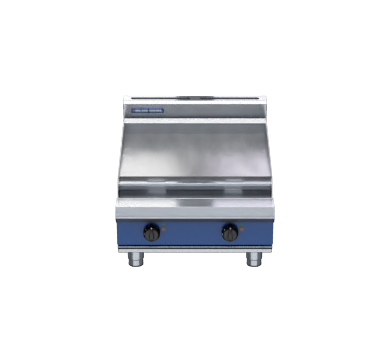

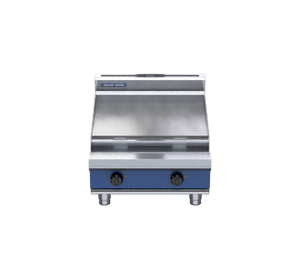

Blue Seal E514B-B Evolution Series 600mm Electric Griddle Cooktop - Bench Model

The Blue Seal E514B-B is a 600mm bench-mounted electric griddle cooktop from the Evolution Series, purpose-built for busy commercial kitchens, restaurants, cafés, hotels, and catering operations. It features two radiant griddle elements with individual energy regulator controls and independent thermostats per 300mm section, delivering consistent, controllable heat across the full cooking surface for a wide range of food preparation tasks including searing, sautéing, simmering, and continuous high-volume cooking.

Constructed from heavy-duty stainless steel with reinforced control knobs and four stainless steel bench legs with adjustable feet, the E514B-B is engineered for durability, ease of cleaning, and straightforward servicing. Its compact bench model footprint suits both standalone installations and modular commercial cooking lines, and optional hot plate elements extend its versatility to suit evolving kitchen requirements.

Key Benefits

• Independent thermostat control per 300mm griddle section allows simultaneous cooking at different temperatures, improving kitchen flexibility during service.
• Radiant elements with energy regulator controls provide precise, stable cooking temperatures suited to everything from gentle simmering to high-heat searing.
• Individual power and heating indicator lights give operators at-a-glance confirmation of element status, reducing the risk of unintended heat exposure.
• Adjustable feet on all four stainless steel bench legs allow for level installation on uneven floors, important for safe and stable operation.
• Easy-clean construction minimises downtime between service periods, supporting high hygiene standards in commercial environments.
• Straightforward installation and serviceability help reduce maintenance costs and keep the unit in operation with minimal disruption.
• Optional hot plate elements allow the cooktop configuration to be adapted to changing menu or operational needs without replacing the unit.
• Compact 600mm bench model footprint integrates neatly into modular Evolution Series kitchen suites or fits standalone into tight kitchen layouts.
• Heavy-duty stainless steel finish and reinforced control knobs withstand the rigours of continuous commercial use, extending equipment lifespan.

Key Features

• 600mm bench model electric griddle cooktop, part of the Blue Seal Evolution Series
• 2 x 3.4kW radiant griddle elements, totalling 6.8kW
• Independent 50-320°C thermostat for each 300mm griddle section
• Energy regulator controls for precise heat adjustment on each element
• Individual indicator lights for power and heating status per griddle control
• Heavy-duty stainless steel construction throughout
• Heavy-duty reinforced control knobs rated for demanding commercial use
• Four stainless steel bench legs with adjustable feet for levelling on uneven surfaces
• Electrical requirements: 6.8kW, 230-240V AC, 50/60Hz, single phase (1P+N+E), 28.3A
• Optional hot plate elements available for added cooking versatility
• Easy-clean surfaces and straightforward installation and servicing design
• Dimensions: 600mm W x 812mm D x 315mm H (485mm H including splashback)
• Compatible with modular Blue Seal Evolution Series kitchen configurations

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Shipping Weight: 110
• Packed Width (mm): 645.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.373165000m3
