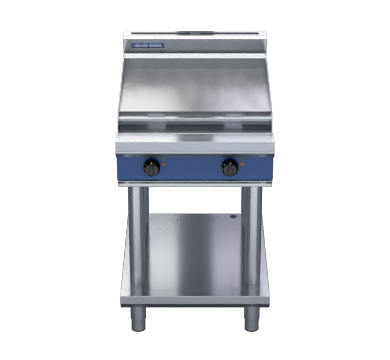

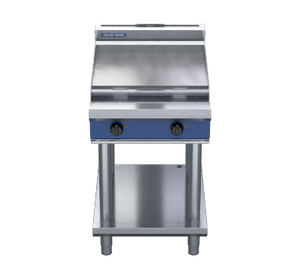

Blue Seal E514B-LS Evolution Series 600mm Electric Griddle Cooktop on Leg Stand

The Blue Seal E514B-LS is a 600mm electric griddle cooktop mounted on a heavy-duty leg stand, forming part of the Evolution Series range manufactured in New Zealand. It features two 3.4 kW radiant elements beneath a 20 mm thick smooth mild steel griddle plate, delivering a generous 595 x 530 mm cooking surface with thermostat control across two independent 300 mm zones, each running from 90 to 300°C.

Constructed from 304 stainless steel with heavy-duty reinforced control knobs, the unit is engineered for demanding commercial kitchen environments. The leg stand incorporates adjustable feet and two additional rollers for both stable positioning and easy repositioning on the floor, while a 165 mm splashback, suite-matching undershelf, and optional hot plate elements add practical versatility to the installation.

Key Benefits

• Two independently controlled 300 mm griddle zones allow different foods to be cooked simultaneously at different temperatures, maximising menu flexibility.
• The 20 mm thick smooth mild steel griddle plate retains and distributes heat evenly across the full 595 x 530 mm surface, reducing hot spots and improving cook consistency.
• Per-zone indicator lights for power and heating give kitchen staff instant visual confirmation of operating status, reducing the risk of leaving elements on unattended.
• Adjustable feet combined with two rollers make it straightforward to level the unit on uneven floors and reposition it for cleaning or reconfiguration without heavy lifting.
• Single-phase electrical connection (230–240 V, 1P+N+E, 28.3 A) simplifies installation in venues without three-phase supply.
• Heavy-duty reinforced control knobs withstand the rigours of continuous high-volume service and resist the accidental damage common in busy kitchens.
• The optional hot plate element upgrade broadens cooking capability without requiring a separate appliance, saving bench and floor space.
• Smooth griddle surface and accessible component layout make daily cleaning, routine maintenance, and servicing faster and less labour-intensive.

Key Features

• 600 mm wide Evolution Series electric griddle cooktop on integrated leg stand
• 2 x 3.4 kW radiant griddle elements, totalling 6.8 kW output
• 20 mm thick smooth mild steel griddle plate
• Cooking surface area: 595 x 530 mm
• Two independent 300 mm griddle zones, each with individual thermostat control (90–300°C)
• Energy regulator controls on radiant elements for precise heat adjustment
• Per-zone power and heating indicator lights
• Heavy-duty reinforced control knobs
• 304 stainless steel construction throughout
• 165 mm rear splashback included
• Suite-matching undershelf included
• Leg stand with adjustable feet for levelling on uneven surfaces
• Two additional rollers integrated into leg stand base for easy mobility
• Optional hot plate elements available for added cooking versatility
• Freestanding, single-phase installation: 230–240 V AC, 1P+N+E, 50/60 Hz, 28.3 A
• Height including splashback: 1085 mm; base unit height: 915 mm
• Designed for easy cleaning, installation, and servicing
• Country of origin: New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 131
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 4
• Power Rating: 1P+N+E|230-240Vac|28.3A|50/60Hz|6.8 kW
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
