Overview

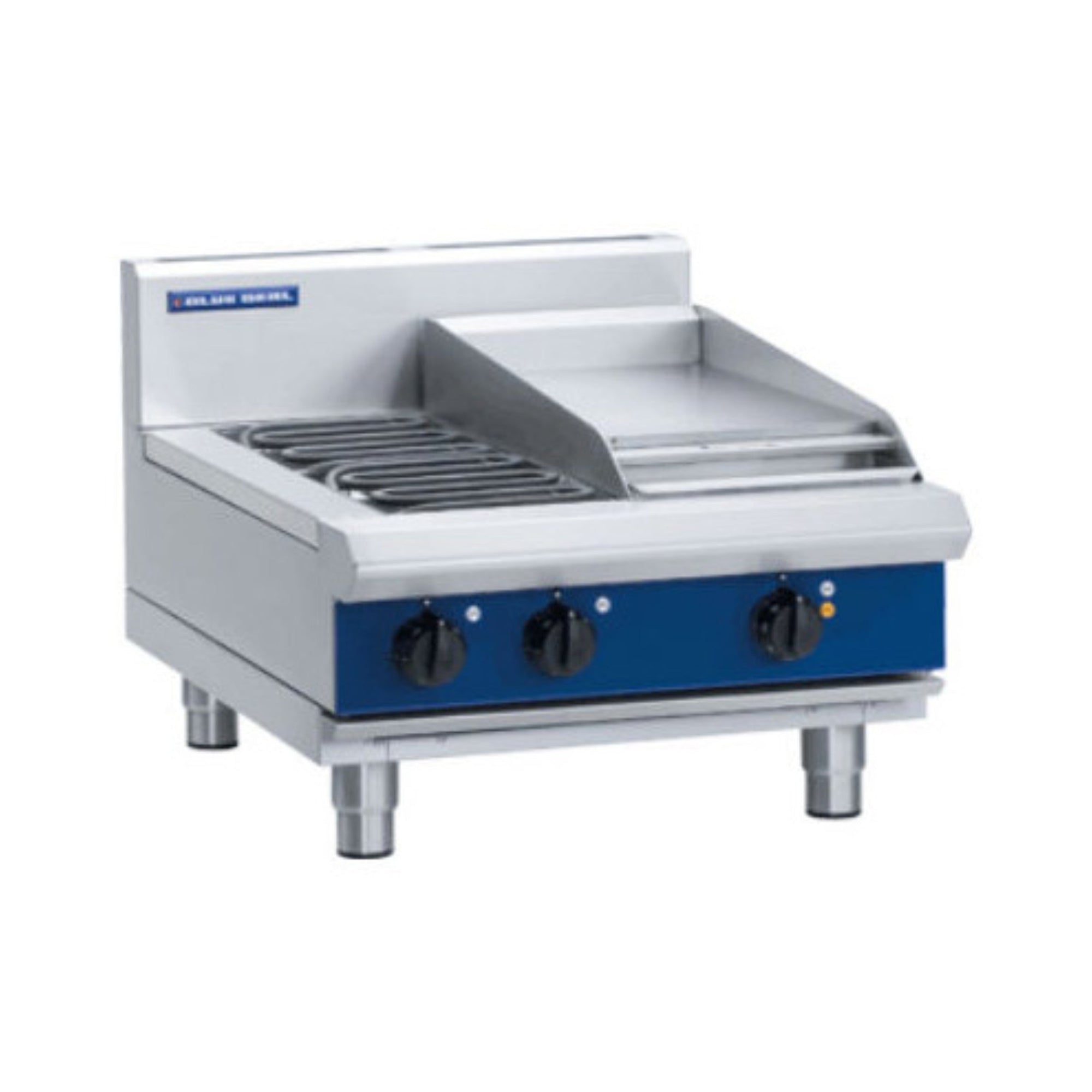

Blue Seal E514C-B Evolution Series 600mm Electric Cooktop - Bench Model

The Blue Seal E514C-B is a 600mm bench-model electric cooktop from the Evolution Series, combining two 2.4kW radiant elements with a 300mm smooth mild steel griddle plate on the right-hand side as standard. Manufactured in New Zealand from heavy-duty 304 stainless steel, it is engineered to withstand the demands of high-volume commercial kitchens while remaining straightforward to clean, install, and service.

Radiant elements are governed by energy regulator controls for precise low-to-high heat adjustment, while the 300mm griddle section features a dedicated thermostat spanning 50 to 320°C. The bench configuration sits on four stainless steel legs with adjustable feet, and the unit ships with two additional rollers for easy repositioning on the kitchen floor. Optional 2kW solid hotplate elements are available as an upgrade to suit varying menu requirements.

Key Benefits

• Dual radiant elements deliver consistent, responsive heat across a wide temperature spectrum, from a gentle simmer right through to high-output cooking.
• The integrated 300mm smooth mild steel griddle with its own 50-320°C thermostat gives chefs a dedicated flat-top surface without needing a separate piece of equipment.
• Energy regulator controls on the radiant elements allow fine, repeatable heat adjustments, reducing the risk of overcooked product during busy service periods.
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves withstand constant daily use and resist the need for frequent replacement.
• Adjustable stainless steel feet and two included rollers make levelling on uneven floors quick and repositioning the unit straightforward during kitchen changeovers.
• Indicator lights for power and heating status on each griddle control give kitchen staff an at-a-glance confirmation of operating conditions, improving safety and workflow.
• The 165mm splashback protects the wall behind the unit, while the stainless steel construction and accessible design keep cleaning and routine servicing fast and uncomplicated.
• Optional 2kW solid hotplate elements allow the cooktop to be reconfigured as cooking requirements evolve, protecting the equipment investment over time.

Key Features

• 2 x 2.4kW radiant elements with individual energy regulator controls
• 1 x 3.4kW griddle element powering a 300mm smooth mild steel griddle plate
• Griddle positioned on the right-hand side as standard
• Thermostat control per 300mm griddle section, ranging from 50°C to 320°C
• Indicator lights for power and heating status on each griddle control
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves
• Heavy-duty 304 stainless steel construction throughout
• 165mm splashback included
• Four stainless steel bench legs with adjustable feet for levelling on uneven surfaces
• Two additional rollers included for floor repositioning
• Cooking surface area: 295mm x 530mm
• Griddle plate thickness: 20mm smooth mild steel
• Electrical supply: 400-415Vac, 2P+N+E, 50/60Hz, 20A per phase maximum, 8.2kW total
• Secondary single-phase supply option: 230-240Vac, 1P+N+E, 50/60Hz
• Freestanding bench model; no undershelf
• Optional 2kW solid hotplate elements available as an upgrade
• Designed for easy cleaning, installation, and servicing
• Country of origin: New Zealand
• Dimensions: 600mm W x 812mm D x 485mm H (including splashback)

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 110
• Packed Width (mm): 645.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.373165000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Number of Burners: 4
• Cooking Surface Area (mm): 295 x 530
• Power Rating: 20A/phase max.|2P+N+E|400-415Vac|50/60Hz|8.2 kW
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
