Overview

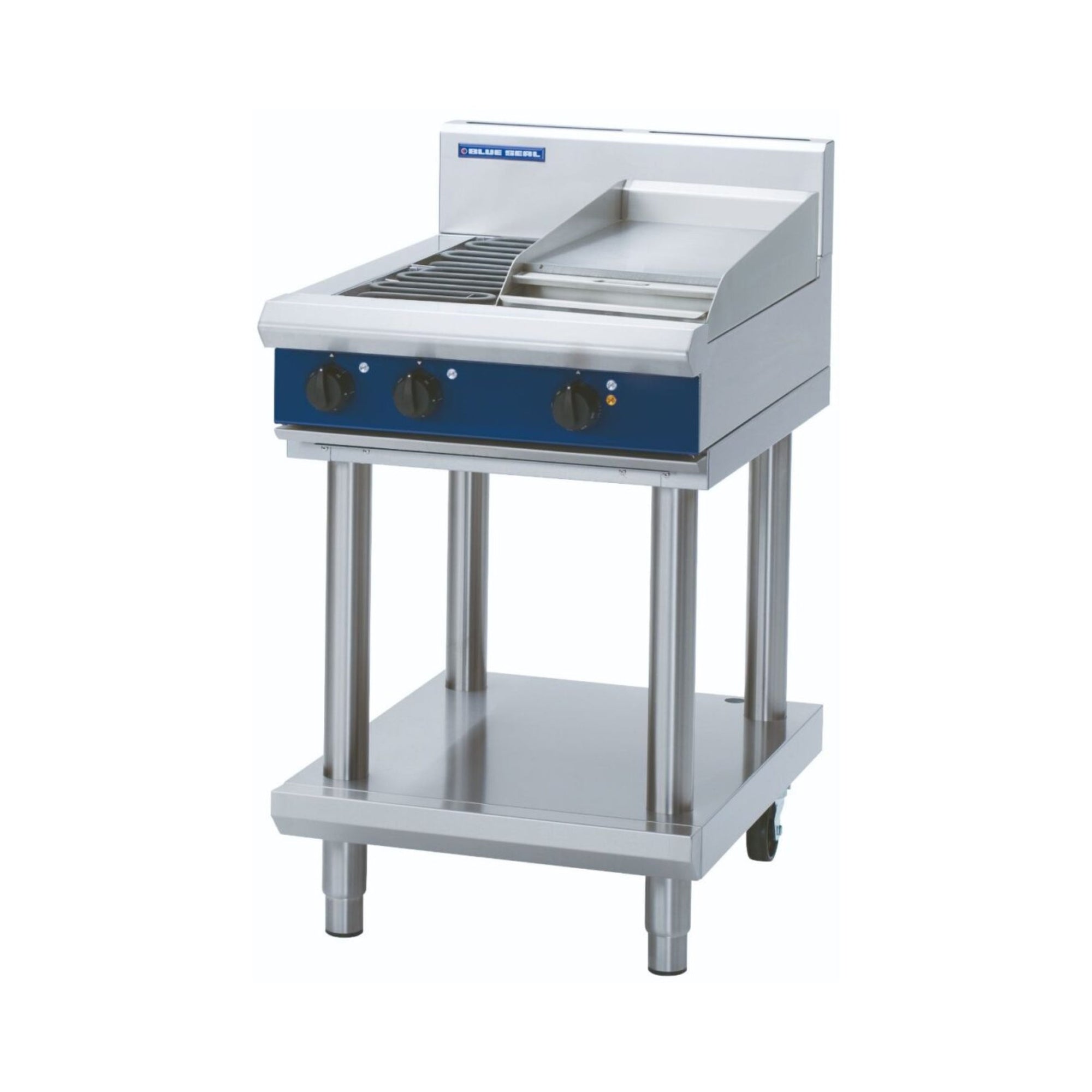

Blue Seal E514C-LS Evolution Series 600mm Electric Cooktop with Leg Stand

The Blue Seal E514C-LS Evolution Series is a freestanding 600mm electric cooktop mounted on a leg stand, combining two 2.4kW radiant elements with a 300mm smooth mild steel griddle plate powered by a 3.4kW element. Manufactured in New Zealand from 304 stainless steel, this unit is engineered for the demands of busy commercial kitchens where consistent, reliable cooking performance across multiple cooking styles is essential.

The cooktop features energy regulator controls on the radiant elements for precise heat adjustment from a gentle simmer to high heat, while the griddle is positioned on the right-hand side as standard. A 165mm splashback, a suite-matching undershelf, adjustable feet, and two integrated rollers complete a practical, easy-to-maintain setup. Optional hot plate elements are available to extend the unit's cooking configuration.

Key Benefits

• Dual cooking methods on a single unit allow kitchens to run radiant element cooking and griddle work simultaneously, reducing equipment footprint.
• Energy regulator controls on the radiant elements deliver accurate, stepless heat adjustment from a gentle simmer through to full power, supporting a wide range of cooking techniques.
• Non-fade dial markings and reinforced shaft sleeves on the control knobs extend service life and reduce the frequency and cost of knob replacements.
• Adjustable feet combined with two integrated rollers make repositioning the unit straightforward and allow precise levelling on uneven kitchen floors.
• The 20mm thick smooth mild steel griddle plate retains and distributes heat evenly, producing consistent results across the full 295 x 530mm cooking surface.
• Heavy-duty 304 stainless steel construction withstands the rigours of high-volume kitchen use while remaining straightforward to wipe down and sanitise.
• Optional hot plate elements provide flexibility to reconfigure the cooking surface as menu demands change, without replacing the entire unit.
• The leg stand design elevates the cooktop to a comfortable working height and includes a suite-matching undershelf for additional storage or equipment placement.

Key Features

• 2 x 2.4kW radiant elements with energy regulator controls for precise temperature management
• 1 x 3.4kW griddle element powering a 300mm smooth mild steel griddle plate
• Griddle positioned on the right-hand side as standard configuration
• 20mm thick smooth mild steel griddle plate across a 295 x 530mm cooking surface
• Temperature range of 90-300°C controlled via thermostat
• Heavy-duty reinforced control knobs with non-fade markings and reinforced shaft sleeves
• 165mm stainless steel splashback included
• Suite-matching undershelf included
• Adjustable feet and 2 additional rollers for mobility and levelling
• Freestanding leg stand mount raising overall height to 1085mm (including splashback)
• 304 stainless steel construction throughout
• Optional hot plate elements available for alternative cooking surface configurations
• Electrical requirements: 8.2kW total, 400-415V AC, 2P+N+E, 20A per phase max, 50/60Hz
• Compatible with single-phase supply: 230-240V AC, 1P+N+E, 50/60Hz
• Manufactured in New Zealand
• Designed for straightforward cleaning, installation, and servicing

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 131
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Number of Burners: 4
• Cooking Surface Area (mm): 295 x 530
• Power Rating: 20A/phase max.|2P+N+E|400-415Vac|50/60Hz|8.2 kW
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
