Overview

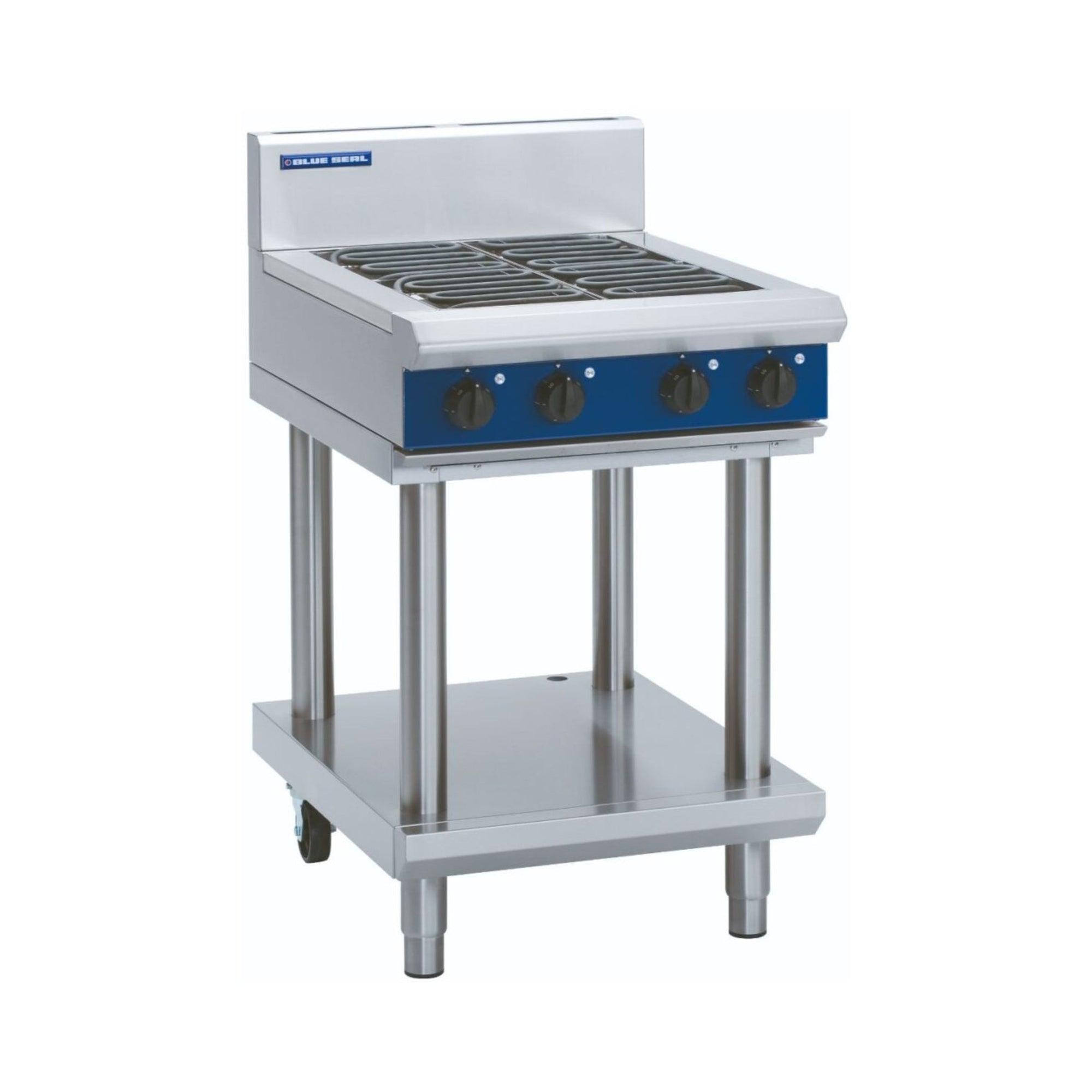

Blue Seal E514D-LS Evolution Series 600mm Electric Radiant Cooktop on Leg Stand

The Blue Seal E514D-LS is a 600mm wide commercial electric cooktop from the Evolution Series, mounted on a heavy-duty leg stand for freestanding installation. It features four 2.4 kW radiant elements delivering a total output of 9.6 kW, giving busy commercial kitchens consistent, controllable heat across the full cooking surface. Manufactured in New Zealand from 304 stainless steel, it is built to withstand the rigours of high-volume professional cooking environments.

Each element is governed by an energy regulator control, allowing precise variable power adjustment from a full rolling boil down to a gentle simmer. The leg stand includes adjustable feet and two additional rollers for ease of positioning, while the 165 mm splashback and suite-matched undershelf complete the installation. Optional solid hot plate elements are available for operators who require an alternative cooking surface.

Key Benefits

• Four independent energy regulator controls let chefs dial in precise heat levels for each zone, from high-heat searing down to low simmering, improving cooking accuracy.
• Adjustable feet combined with two integrated rollers make repositioning and levelling straightforward, reducing setup time during installation or kitchen reconfiguration.
• Non-fade control markings and reinforced knob shaft sleeves extend the service life of controls, reducing the frequency and cost of replacement parts.
• The 165 mm splashback and suite-matching undershelf simplify compliance with hygiene standards and keep the surrounding work area cleaner.
• Optional solid hot plate elements provide operational flexibility, allowing the cooktop to be configured for different menu requirements without purchasing separate equipment.
• 304 stainless steel construction throughout resists corrosion and is straightforward to clean, supporting food safety and reducing downtime between services.
• Freestanding leg-stand configuration eliminates the need for bench space or built-in installation, making the unit suitable for kitchens where counter space is at a premium.
• New Zealand manufacture and a 12-month warranty provide confidence in build quality and access to local service and parts support.

Key Features

• Four 2.4 kW radiant elements with individual energy regulator controls, totalling 9.6 kW output
• Variable power control on each element, spanning the full heat spectrum from maximum to simmer
• Heavy-duty reinforced control knobs with non-fade markings and reinforced shaft sleeves for extended service life
• Freestanding leg stand configuration with adjustable feet and two additional rollers for easy levelling and repositioning
• 165 mm rear splashback included
• Suite-matching undershelf included
• Constructed from 304 stainless steel throughout
• Optional solid hot plate elements available as an alternative to radiant elements
• Electrical requirements: 9.6 kW, 400-415 V, 2P+N+E, 20 A/phase, 50/60 Hz
• Cooking surface area: 600 mm x 480 mm
• Country of manufacture: New Zealand
• 12-month warranty
• Designed for straightforward cleaning, installation, and servicing

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 131
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 4
• Cooking Surface Area (mm): 600 x 480
• Power Rating: 20A/phase|2P+N+E|400-415Vac|50/60Hz|9.6 kW
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
