Overview

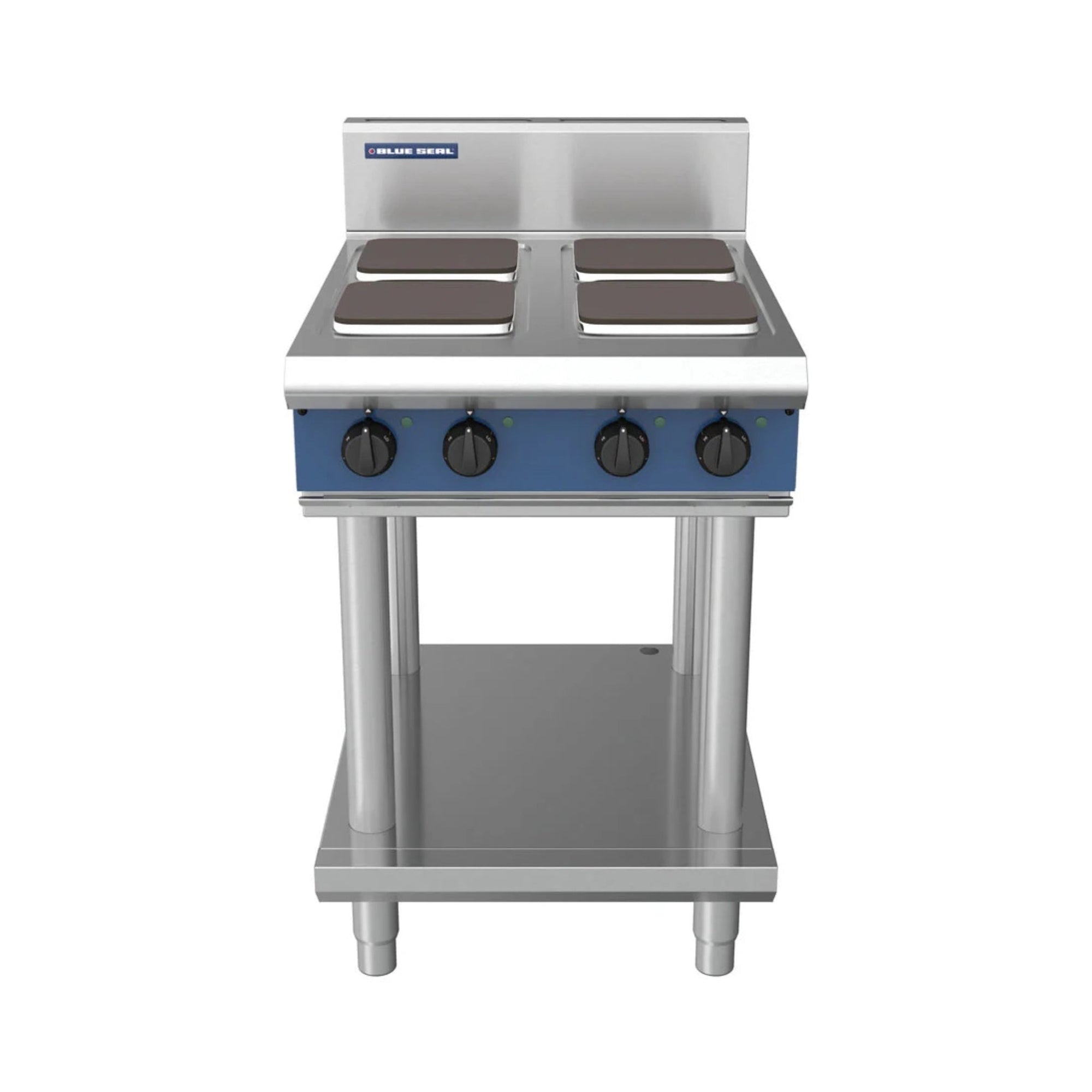

Blue Seal E514S-LS Evolution Series 600mm Electric Cooktop Sealed Hobs – Leg Stand

The Blue Seal E514S-LS is a 600mm freestanding electric cooktop from the Evolution Series, purpose-built for demanding commercial kitchen environments. Mounted on a heavy-duty stainless steel leg stand, it features four cast iron hot plate elements each rated at 2.6kW, delivering a combined output of 10.4kW across a generous 600 x 480mm cooking surface.

Manufactured in New Zealand from 304 stainless steel with an aluminised steel internal construction, the E514S-LS is designed for straightforward operation, cleaning, and servicing. Practical details such as a vitreous enamelled control panel, individual power indicator lights, and stainless steel legs with two adjustable front feet and two rear rollers make it a highly workable solution for everyday high-volume cooking.

Key Benefits

• Four independent 2.6kW cast iron hot plate elements allow multiple dishes to be cooked simultaneously at different heat levels, improving kitchen throughput.
• Each element offers four heat position settings with variable power control, giving chefs precise temperature management suited to a wide range of cooking tasks.
• Individual power indicator lights for each element let staff quickly confirm which zones are active, reducing energy waste and improving safety awareness.
• Thermal protection on each cast iron element guards against overheating, extending the service life of the unit and reducing maintenance downtime.
• Two front adjustable feet and two rear rollers make levelling straightforward and allow the unit to be repositioned easily during kitchen reconfiguration or cleaning.
• The 165mm splashback and vitreous enamelled control panel are resistant to spills and grease buildup, keeping daily cleaning fast and simple.
• Heavy-duty 304 stainless steel construction provides corrosion resistance and a professional finish that withstands the rigours of continuous commercial use.
• Freestanding leg stand design integrates neatly into suite configurations with matching undershelf included, supporting an organised and efficient kitchen layout.

Key Features

• Four cast iron hot plate elements, each rated at 2.6kW, with thermal overload protection
• Four heat position switch on each element for variable power control
• Combined electrical output of 10.4kW; 400-415Vac, 3P+N+E, 50/60Hz
• Cooking surface area of 600 x 480mm across four sealed hob zones
• Vitreous enamelled control panel for durability and easy cleaning
• Large heat-resistant reinforced control knobs for confident operation in a hot kitchen environment
• Individual power indicator light for each element
• Heavy-duty 304 stainless steel exterior construction
• Aluminised steel internal construction
• Stainless steel leg stand with two adjustable feet at front and two rollers at rear
• 165mm stainless steel splashback included
• Suite-matching undershelf included (1 shelf)
• Freestanding installation type
• Overall dimensions: 600mm W x 812mm D x 1085mm H
• Manufactured in New Zealand
• Designed for easy cleaning, installation, and servicing

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Sealed Hob Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Cooking Surface Area (mm): 600 x 480
• Number of Burners: 4
• Power Rating: 10.4 kW|22A|2P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
