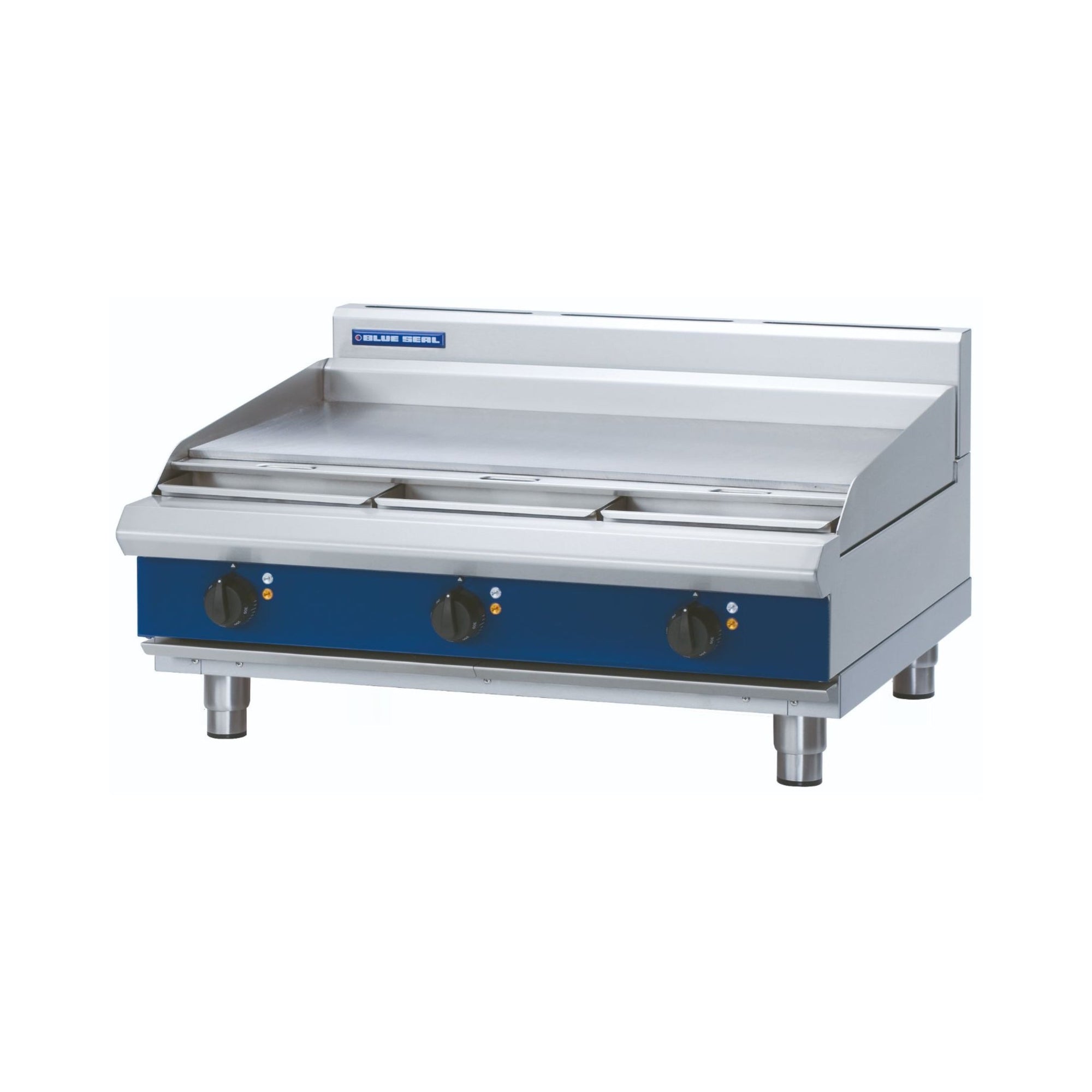

Blue Seal E516A-B Evolution Series 900mm Electric Griddle Cooktop - Bench Model

The Blue Seal E516A-B Evolution Series is a 900mm electric griddle cooktop designed for high-volume commercial kitchens. Built in New Zealand from 304 stainless steel, it features three 3.4kW radiant elements beneath a 20mm smooth mild steel griddle plate, delivering consistent, controllable heat across a generous 892 x 530mm cooking surface. Each 300mm griddle section is independently governed by a 50-320°C thermostat with dedicated power and heating indicator lights, giving chefs precise zone control during service.

Engineered for demanding environments, the E516A-B sits on four stainless steel legs with adjustable feet and two additional rollers for straightforward repositioning and levelling. Heavy-duty reinforced control knobs with clear, non-fade markings allow subtle heat adjustments from simmer to full output without the need for frequent replacement. The bench model configuration suits modular suite installations or standalone benchtop use, and the 165mm splashback, easy-clean surfaces, and accessible design keep maintenance time to a minimum between services.

Key Benefits

• Three independently controlled 300mm griddle zones let you run different temperatures simultaneously, reducing the need to move food around during busy service.
• A 20mm smooth mild steel griddle plate retains heat evenly and recovers quickly after cold food is loaded, keeping cook times consistent.
• Per-zone indicator lights for power and heating give kitchen staff instant visual confirmation that each section is active and up to temperature.
• Adjustable leg feet and two additional rollers make it easy to level the unit on uneven floors and reposition it for cleaning or reconfiguration.
• Heavy-duty reinforced control knobs with non-fade markings withstand daily heavy use and reduce the frequency and cost of knob replacement.
• The 165mm splashback protects walls and adjacent equipment, while the straightforward design streamlines daily cleaning and periodic servicing.
• Optional hot plate elements provide cooking surface flexibility when a different heat transfer method is needed for specific menu items.
• A freestanding bench model format integrates neatly into modular Evolution Series suites or operates as a standalone unit on existing benchtops.

Key Features

• 900mm wide smooth mild steel griddle cooktop in bench model configuration
• Three 3.4kW radiant griddle elements, totalling 10.2kW output
• Independent 50-320°C thermostat control per 300mm griddle section
• Dedicated power and heating indicator lights for each griddle control zone
• 20mm thick smooth mild steel griddle plate for even heat retention and recovery
• Cooking surface area: 892 x 530mm
• Heavy-duty reinforced control knobs with clear, non-fade markings
• 165mm splashback included
• Four stainless steel bench legs with adjustable feet (height adjustable 80-105mm) and two additional rollers
• 304 stainless steel construction throughout
• Electrical supply: 10.2kW, 400-415Vac, 50/60Hz, 3P+N+E, 15A/phase max
• Optional hot plate elements available
• Freestanding installation; compatible with 900mm modular Evolution Series suite
• Designed for easy cleaning, installation, and servicing
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 135
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 6
• Power Rating: 10.2 kW|15A/phase max|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
