Overview

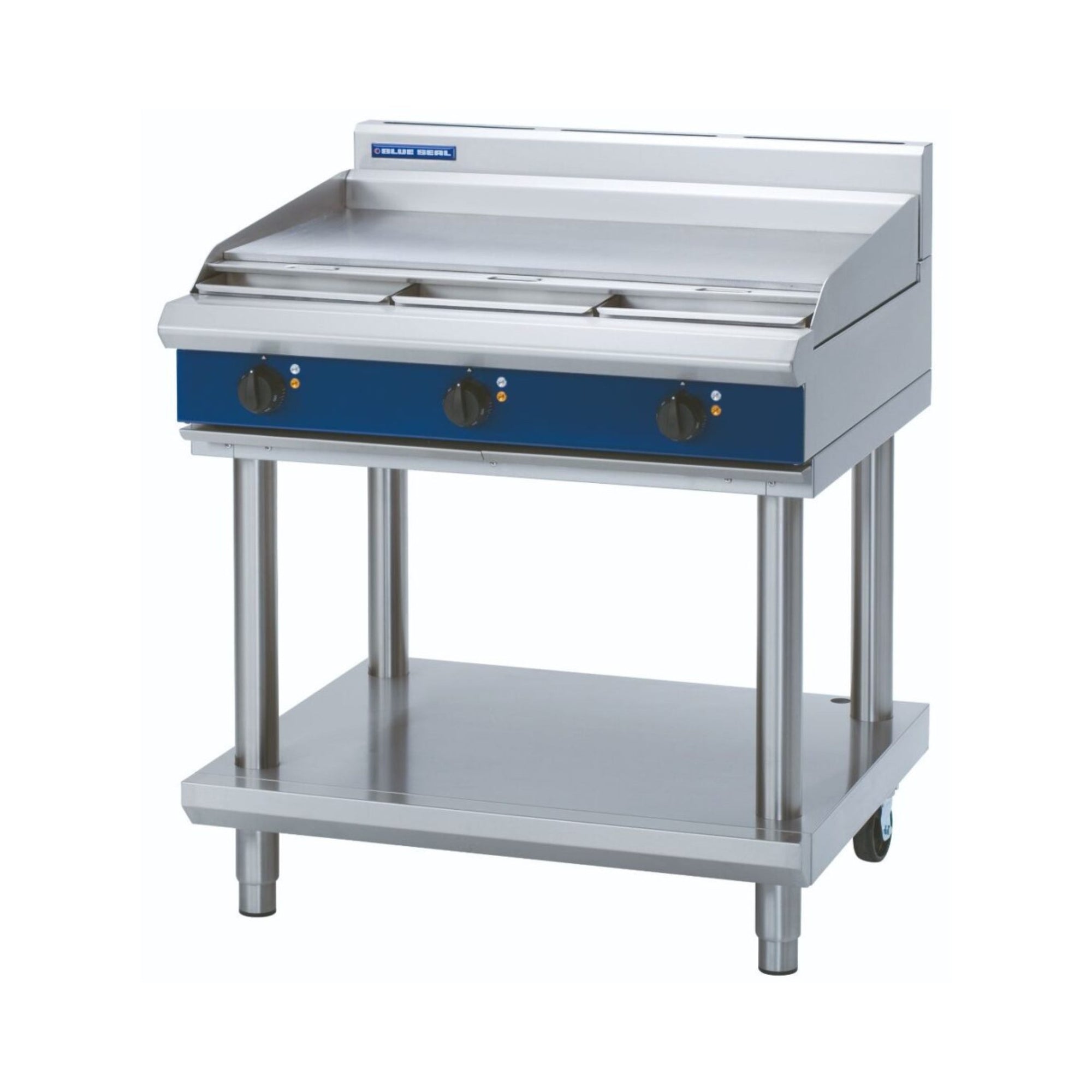

Blue Seal E516A-LS Evolution Series 900mm Electric Cooktop on Leg Stand

The Blue Seal E516A-LS Evolution Series is a 900mm commercial electric cooktop mounted on a freestanding leg stand, built for demanding professional kitchen environments. Manufactured in New Zealand from 304 stainless steel, it features three 3.4kW radiant griddle elements spanning a full 900mm smooth mild steel griddle plate that is 20mm thick, delivering consistent, controllable heat across a generous 892 x 530mm cooking surface.

Designed with both performance and practicality in mind, the E516A-LS includes energy regulator controls with thermostat adjustment from 50–320°C per 300mm griddle section, indicator lights for power and heating status on each control zone, heavy-duty reinforced control knobs with non-fade markings, and a 165mm splashback. Adjustable feet and two additional rollers make positioning and daily service straightforward, while the suite-matching undershelf adds useful storage beneath the unit.

Key Benefits

• Three independently controlled 300mm griddle zones allow simultaneous cooking at different temperatures, improving multi-dish efficiency during a busy service.
• A 20mm thick smooth mild steel griddle plate retains and distributes heat evenly, reducing hot spots and delivering consistent results across the entire cooking surface.
• Per-zone indicator lights for power and heating status give chefs at-a-glance confirmation of each section's operating condition, reducing guesswork during peak periods.
• Thermostat control from 50–320°C per section supports everything from gentle warming through to high-heat searing without switching equipment.
• Adjustable feet and two integrated rollers make levelling on uneven floors easy and allow the unit to be repositioned for cleaning or kitchen reconfiguration without heavy lifting.
• Heavy-duty reinforced control knobs with strengthened shaft sleeves resist the wear of constant adjustment, reducing the frequency and cost of replacement parts.
• The suite-matching undershelf provides convenient storage for cookware or supplies directly beneath the cooktop, keeping the work area organised.
• Optional hot plate elements offer flexibility to change the cooking surface configuration to suit menu requirements without replacing the entire unit.
• New Zealand manufacture and 304 stainless steel construction ensure durability and corrosion resistance suited to the high-moisture, high-heat demands of commercial kitchens.

Key Features

• 900mm smooth mild steel griddle plate, 20mm thick, with a cooking surface area of 892 x 530mm
• 3 x 3.4kW radiant griddle elements, total output 10.2kW
• Independent thermostat control per 300mm griddle section, range 50–320°C
• Energy regulator controls on each zone
• Indicator lights for power and heating status per griddle control zone
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves
• 165mm stainless steel splashback included
• Suite-matching undershelf (1 shelf)
• Adjustable feet for levelling on uneven surfaces
• 2 additional rollers for ease of repositioning
• Freestanding leg stand mount
• 304 stainless steel construction throughout
• Griddle surface: smooth mild steel
• Optional hot plate elements available
• Electrical supply: 10.2kW, 400–415Vac, 50/60Hz, 3P+N+E, 15A per phase maximum
• Country of origin: New Zealand
• Easy clean, installation and service design

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 6
• Power Rating: 10.2 kW|15A/phase max|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
