Overview

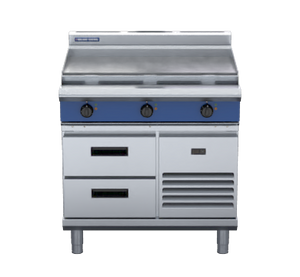

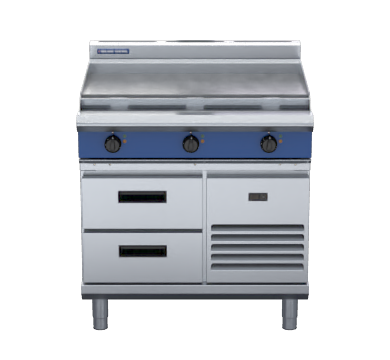

Blue Seal E516A-RB Evolution Series 900mm Electric Cooktop with Refrigerated Base

The Blue Seal E516A-RB Evolution Series combines a 900mm electric griddle cooktop with an integrated refrigerated base, delivering a compact, high-output cooking and cold storage solution purpose-built for busy commercial kitchens. Three 3.4kW radiant griddle elements provide a total of 10.2kW of cooking power across a smooth mild steel surface, while energy regulator controls allow precise heat management from a single unit.

The refrigerated base maintains temperatures between -2°C and +8°C and is tropical climate rated, making it suitable for warmer kitchen environments. Two GN 1/1 drawer compartments with 100mm deep pan capacity sit directly beneath the cooking surface, keeping ingredients cold and within arm's reach during service. Constructed in heavy-duty 304 stainless steel and made in New Zealand, the E516A-RB is engineered for the daily demands of professional catering operations.

Key Benefits

• Combines a full 900mm griddle cooktop and refrigerated ingredient storage in a single 900mm footprint, reducing the need for separate equipment and saving valuable kitchen floor space.
• Tropical climate rated refrigeration holds between -2°C and +8°C, keeping perishable ingredients safe and accessible even in warm or high-ambient kitchen environments.
• Three independent 3.4kW radiant elements with energy regulator controls allow different heat zones across the griddle surface, supporting multiple cooking tasks simultaneously.
• Two GN 1/1 drawer compartments with 100mm pan capacity sit directly below the cook surface, minimising travel distance and keeping prep ingredients cold throughout service.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely and repositioned with ease during cleaning or kitchen reconfiguration.
• Heavy-duty reinforced control knobs and a robust stainless steel construction withstand the repeated daily use typical of high-volume commercial kitchens.
• Smooth mild steel griddle surface with a 20mm plate thickness provides even heat distribution and is straightforward to clean down after service.
• Optional hot plate elements offer cooking surface flexibility, allowing the unit to be configured to suit specific menu or operational requirements.
• A 165mm splashback is included as standard, protecting the wall and simplifying cleaning behind the unit.

Key Features

• 900mm smooth mild steel griddle surface with a 20mm plate thickness and a cooking surface area of 892 x 530mm.
• Three 3.4kW radiant griddle elements totalling 10.2kW of cooking power.
• Energy regulator controls on each radiant element for precise, independent heat zone management.
• Refrigerated base with a -2°C to +8°C operating range, ventilated cooling system, R134a refrigerant, and tropical climate rating.
• Two GN 1/1 drawer-style compartments with 100mm deep pan capacity for cold ingredient storage directly below the cook surface.
• Digital electronic temperature display and thermostat control for the refrigerated base.
• 165mm splashback included as standard.
• Heavy-duty 304 stainless steel construction throughout.
• Heavy-duty reinforced control knobs for long-term durability and ease of use.
• Adjustable feet plus two additional rollers for levelling and repositioning.
• Electrical supply: 10.2kW, 400-415Vac, 50/60Hz, 3P+N+E, 15A per phase maximum.
• Optional hot plate elements available as an upgrade.
• Freestanding installation with a 165mm splashback included.
• Manufactured in New Zealand.
• Overall dimensions: 900mm (W) x 812mm (D) x 1085mm (H) including splashback.

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Refrigerated Base
• Door Type: Drawer
• Splash Back: Yes (165mm)
• No. of Doors: 2
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Ventilated | R134a
• Cooling Type: Ventilated | Tropical Rated
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Display Type: Digital Electronic
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 6
• Power Rating: 10.2 kW|15A/phase max|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
