Overview

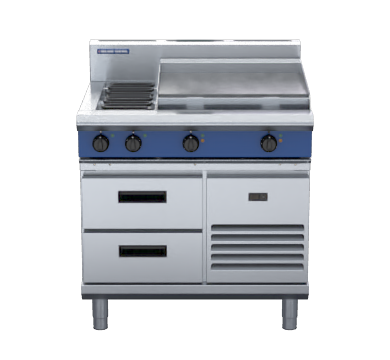

Blue Seal E516B-RB Evolution Series 900mm Electric Cooktop with Refrigerated Base

The Blue Seal E516B-RB Evolution Series combines a 900mm electric cooktop with an integrated refrigerated base, delivering a compact, high-performance cooking and cold storage solution for busy commercial kitchens. The cooktop features two 2.4kW radiant elements alongside a 600mm griddle zone powered by two 3.4kW elements, with the griddle positioned on the right-hand side as standard. The refrigerated underbody maintains temperatures from -2°C to +8°C and is tropical climate rated, keeping prep ingredients safely chilled directly beneath the cooking surface.

Constructed in heavy-duty 304 stainless steel and built in New Zealand, the E516B-RB is engineered to withstand the demands of daily commercial use. The refrigerated base houses two GN 1/1 drawers with 100mm deep pan capacity, providing convenient, organised ingredient access during service. Adjustable feet and two additional rollers offer flexibility in positioning, while the straightforward design makes cleaning, installation, and ongoing servicing uncomplicated for kitchen teams.

Key Benefits

• Combines cooking and refrigerated storage in a single 900mm footprint, reducing the equipment required and maximising valuable kitchen space.
• Tropical climate-rated refrigeration maintains -2°C to +8°C, ensuring perishable ingredients stay food-safe even in high-ambient-temperature environments.
• Two GN 1/1 drawer compartments with 100mm deep pans allow instant ingredient access without leaving the cooking station, speeding up service.
• Radiant elements with energy regulator controls enable precise temperature management for delicate and high-heat cooking alike.
• The 600mm griddle zone with two 3.4kW elements delivers consistent, even surface heat for large-volume cooking tasks.
• Heavy-duty reinforced control knobs resist daily wear, reducing the likelihood of replacement and keeping maintenance costs low.
• Adjustable feet combined with two additional rollers make repositioning straightforward while allowing the unit to be levelled accurately on uneven floors.
• Optional hot plate elements provide flexibility to reconfigure the cooktop surface to suit changing menu requirements.
• Easy-clean construction and accessible service design minimise downtime between shifts and during scheduled maintenance.

Key Features

• 2 x 2.4kW radiant elements with energy regulator controls for precise heat adjustment
• 2 x 3.4kW griddle elements covering a 600mm griddle zone
• Griddle positioned on the right-hand side as standard configuration
• Smooth mild steel griddle surface (ribbed or chrome available as options)
• 12mm griddle plate thickness for heat retention and durability
• 900 x 480mm total cooking surface area
• Total power rating of 11.6kW; 400-415Vac, 3P+N+E, 20A/phase max, 50/60Hz
• Refrigerated base with temperature range of -2°C to +8°C
• Tropical climate-rated ventilated refrigeration system using R134a refrigerant
• Two GN 1/1 drawer compartments with 100mm deep pan capacity
• 165mm splashback included (overall height including splashback: 1085mm)
• Heavy-duty 304 stainless steel exterior construction throughout
• Heavy-duty reinforced control knobs for longevity under intensive use
• Adjustable feet plus two additional rollers for mobility and levelling
• Digital electronic display on refrigerated base with thermostat control
• Freestanding installation type
• Optional hot plate elements available
• Manufactured in New Zealand
• 12-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Refrigerated Base
• Door Type: Drawer
• Splash Back: Yes (165mm)
• No. of Doors: 2
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Ventilated | R134a
• Cooling Type: Ventilated | Tropical Rated
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Display Type: Digital Electronic
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Smooth Mild Steel (Ribbed or Chrome Optional)
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 6
• Power Rating: 11.6 kW|20A/phase max.|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
