Overview

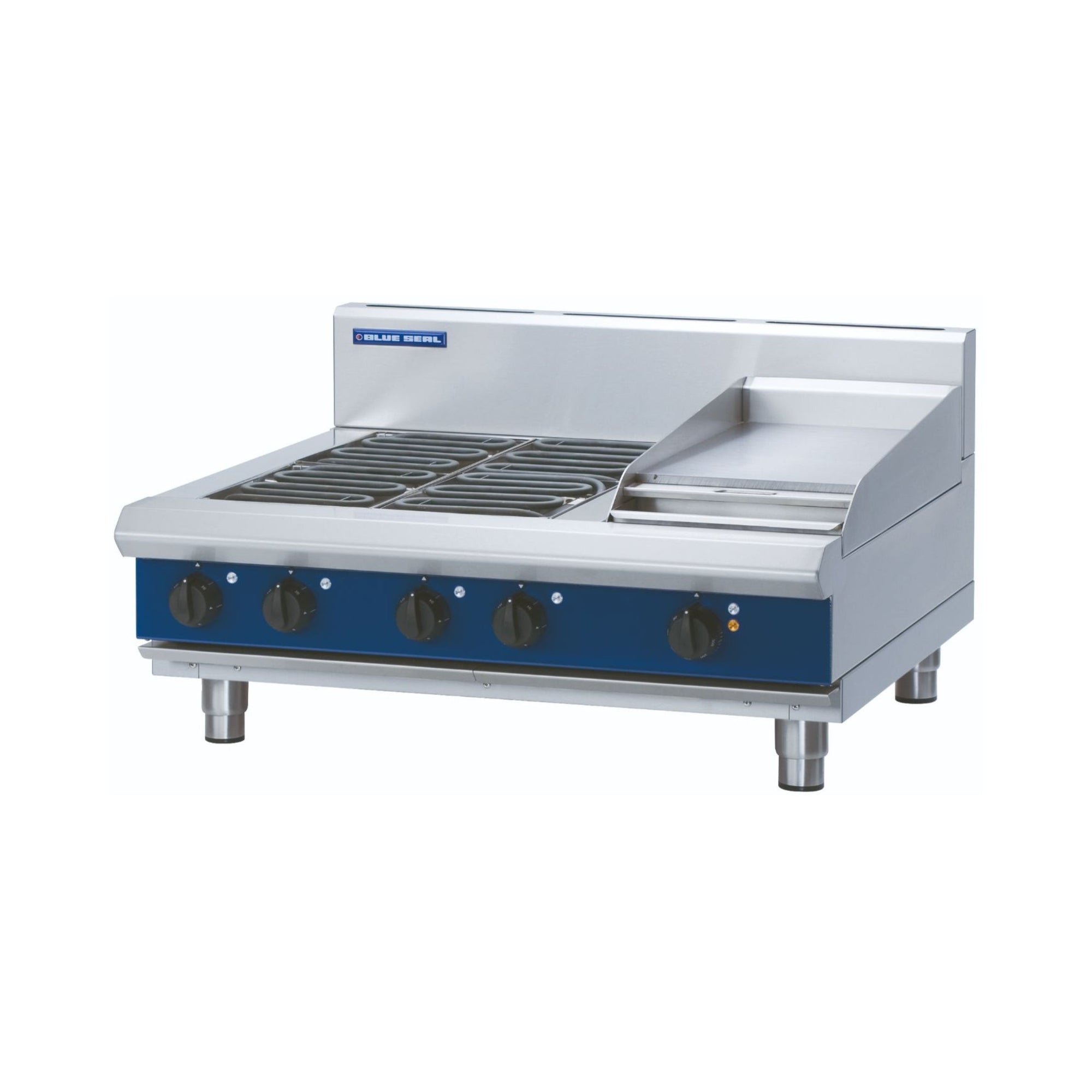

Blue Seal E516C-B Evolution Series 900mm Electric Cooktop - Bench Model

The Blue Seal E516C-B is a 900mm wide bench-model electric cooktop from the Evolution Series, combining four 2.4kW radiant elements with an integrated 300mm smooth mild steel griddle plate powered by a 3.4kW element. Totalling 13kW of cooking power and running on three-phase 400-415V supply, this unit is purpose-built for cafés, restaurants, takeaways, and high-volume hospitality kitchens that demand reliable, multi-zone cooking performance.

Constructed from heavy-duty 304 stainless steel, the E516C-B features reinforced commercial control knobs with clear non-fade markings and strengthened shaft sleeves for long service life without frequent replacement. The bench model format sits on four adjustable stainless steel legs with two additional rear rollers, making it straightforward to position on existing workbenches, equipment stands, or refrigeration bases within a modular kitchen layout. The griddle is positioned on the right-hand side as standard, and optional solid hotplate elements are available for further cooking flexibility.

Key Benefits

• Four independently controlled radiant elements allow simultaneous boiling, sautéing, and simmering across different heat zones, improving kitchen throughput.
• The 300mm smooth griddle plate with a 3.4kW element delivers even, consistent heat retention ideal for breakfast items, burgers, eggs, steaks, and seafood.
• Energy regulator controls on each radiant element provide precise, stepless heat adjustment from high output down to a gentle simmer, reducing the risk of scorching delicate dishes.
• Indicator lights for power and heating on each griddle control let kitchen staff monitor cooking status at a glance, supporting consistent results during busy service.
• Reinforced control knobs with strengthened shaft sleeves and non-fade markings minimise wear, cutting maintenance downtime and the ongoing cost of knob replacement.
• Bench model configuration with adjustable feet and two rear rollers allows flexible, modular installation and straightforward repositioning without specialist trades.
• Heavy-duty 304 stainless steel construction throughout resists corrosion and withstands the rigours of continuous commercial use.
• Optional 2kW solid hotplate elements can replace radiant elements, giving operators the ability to adapt the cooking surface to changing menu requirements.
• Designed for easy cleaning and servicing, reducing downtime between service periods and supporting compliance with commercial kitchen hygiene standards.

Key Features

• 900mm wide bench-model configuration within the Blue Seal Evolution Series modular platform
• 4 x 2.4kW radiant electric elements with individual energy regulator controls
• 1 x 3.4kW smooth mild steel griddle element, 300mm wide, positioned on the right-hand side as standard
• Griddle thermostat range: 50-320°C per 300mm griddle section
• Indicator lights for both power and heating status on each griddle control
• Total power rating: 13kW | 400-415Vac | 3P+N+E | 20A/phase max | 50/60Hz
• Heavy-duty 304 stainless steel construction throughout
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves
• Four stainless steel bench legs with adjustable feet and two additional rear rollers
• 165mm rear splashback included
• Griddle plate thickness: 20mm smooth mild steel surface
• Optional 2kW solid hotplate elements available as an alternative to radiant elements
• Freestanding bench model; no undershelf
• Country of origin: New Zealand
• Easy-clean design with straightforward installation and service access

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 135
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Number of Burners: 6
• Cooking Surface Area (mm): 295 x 530
• Power Rating: 13 kW|20A/phase max.|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
