Overview

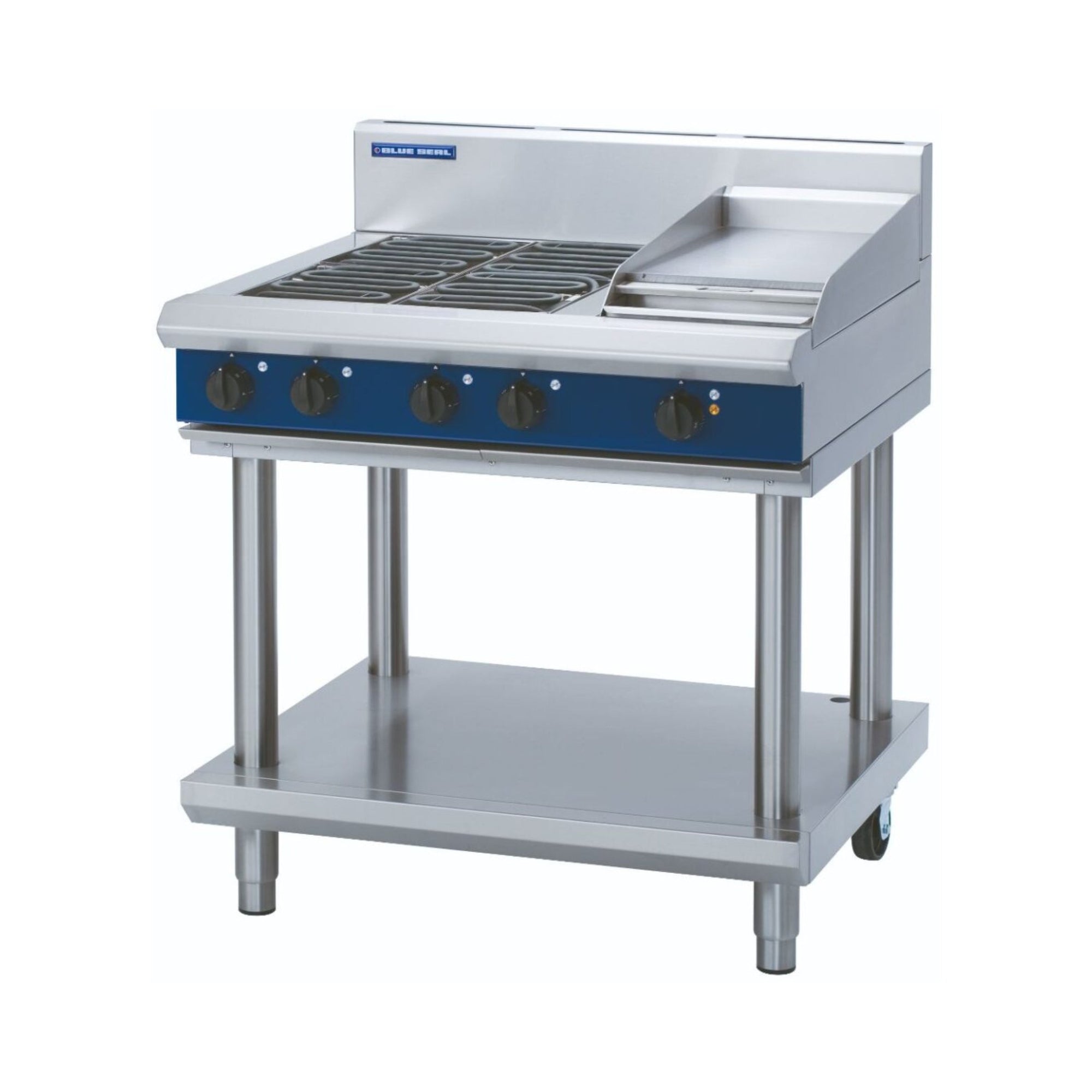

Blue Seal E516C-LS Evolution Series 900mm Electric Cooktop – Leg Stand

The Blue Seal E516C-LS is a 900mm electric cooktop from the Evolution Series, combining four 2.4kW radiant elements with a 300mm smooth mild steel griddle plate (3.4kW element) on a freestanding leg stand. Manufactured in New Zealand from 304 stainless steel, it is engineered for the demands of busy commercial kitchens, offering a total output of 13kW on a three-phase supply.

The griddle is positioned on the right-hand side as standard, with energy regulator controls on the radiant elements and a thermostat (90–300°C) governing the griddle section. The unit is supported by four stainless steel bench legs with adjustable feet and two additional rollers, making it straightforward to reposition during service or cleaning. Optional solid hot plate elements are available for operators who prefer radiant alternatives.

Key Benefits

• Four independent radiant elements with energy regulator controls allow precise, zone-by-zone heat management across the full cooking surface.
• The 3.4kW smooth mild steel griddle (20mm thick plate) delivers consistent, even surface heat for proteins, vegetables and breakfast items at scale.
• Thermostat-controlled griddle temperature (90–300°C) enables confident heat setting from gentle simmering through to high-heat searing.
• Adjustable feet combined with two integrated rollers make levelling the unit simple and allow easy repositioning without heavy lifting.
• Heavy-duty reinforced control knobs with clear, non-fade markings and reinforced shaft sleeves reduce wear and minimise the need for replacement parts over time.
• Three-phase electrical connection (400–415Vac, 3P+N+E, 20A/phase max) ensures a stable power supply suited to high-volume commercial operation.
• 304 stainless steel construction throughout provides corrosion resistance and a professional finish that withstands the rigours of daily kitchen use.
• Designed for easy cleaning, installation and servicing, reducing kitchen downtime and lowering ongoing maintenance costs.
• Optional solid hot plate elements offer configuration flexibility to suit different menu requirements without replacing the entire unit.

Key Features

• 4 x 2.4kW radiant elements with individual energy regulator controls
• 1 x 3.4kW griddle element with thermostat control (90–300°C)
• 300mm smooth mild steel griddle plate, 20mm thick, positioned on the right-hand side as standard
• Total power output: 13kW; 400–415Vac, 50/60Hz, 3P+N+E, 20A/phase max
• Heavy-duty 304 stainless steel construction throughout
• Heavy-duty reinforced control knobs with clear non-fade markings and reinforced shaft sleeves
• Four stainless steel bench legs with adjustable feet for precise levelling
• Two additional rollers integrated into the leg stand for easy repositioning
• 165mm splashback included; overall height including splashback 1085mm
• Suite-matching undershelf included
• Freestanding installation type
• Optional solid hot plate elements available as an upgrade
• Designed for straightforward cleaning, installation and servicing
• Manufactured in New Zealand
• Dimensions: 900mm (W) x 812mm (D) x 915mm (H), 1085mm including splashback

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Number of Burners: 6
• Cooking Surface Area (mm): 295 x 530
• Power Rating: 13 kW|20A/phase max.|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
