Overview

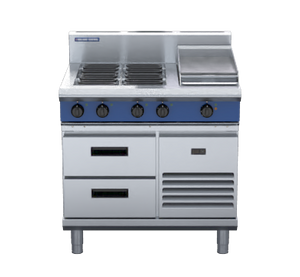

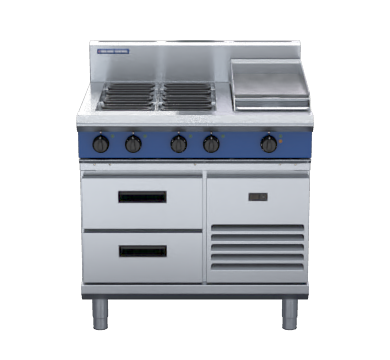

Blue Seal E516C-RB Evolution Series 900mm Electric Cooktop with Refrigerated Base

The Blue Seal E516C-RB Evolution Series combines a high-output 900mm electric cooktop with an integrated refrigerated base, delivering a complete cook-and-store solution in a single freestanding unit. The cooktop surface pairs four 2.4kW radiant elements with a 3.4kW right-hand griddle, while the base maintains temperatures from -2°C to +8°C across two GN 1/1 drawer compartments, making it well suited to high-volume commercial kitchens in tropical climates.

Manufactured in New Zealand from heavy-duty 304 stainless steel, the E516C-RB is engineered for the daily rigours of professional catering. Reinforced control knobs, adjustable feet, and two integrated rollers make the unit practical to operate, reposition, and maintain, while a 165mm splashback and straightforward disassembly keep cleaning and servicing quick and efficient.

Key Benefits

• Four radiant elements plus a dedicated griddle element deliver versatile, high-output cooking across the full 900mm surface in a single unit.
• Tropical Climate rated refrigerated base holds ingredients between -2°C and +8°C, keeping perishables safe and accessible throughout a busy service.
• GN 1/1 drawer storage directly beneath the cooking surface reduces unnecessary movement and keeps prep ingredients within arm's reach.
• Energy regulator controls on radiant elements allow precise heat adjustment from simmer to full power, supporting consistent cooking results.
• Adjustable feet combined with two additional rollers make levelling straightforward and allow the unit to be repositioned safely as kitchen layouts change.
• Heavy-duty reinforced control knobs resist daily wear, reducing the frequency and cost of replacement parts.
• 304 stainless steel construction throughout provides corrosion resistance and withstands the harsh, high-moisture environment of a commercial kitchen.
• Easy-clean design with accessible components simplifies daily hygiene routines and reduces downtime during service periods.
• Optional hot plate elements and griddle surface configurations allow the unit to be customised to specific menu and workflow requirements.

Key Features

• 4 x 2.4kW radiant elements with individual energy regulator controls
• 1 x 3.4kW griddle element; 300mm griddle positioned on the right-hand side as standard
• Griddle surface: smooth mild steel (ribbed or chrome optional)
• Total power rating: 13kW | 400-415Vac | 50/60Hz | 3P+N+E | 20A/phase maximum
• Integrated ventilated refrigerated base with R134a refrigerant
• Refrigerated base temperature range: -2°C to +8°C, Tropical Climate rated
• Two GN 1/1 drawer compartments with 100mm deep pan capacity
• 165mm stainless steel splashback included
• Heavy-duty 304 stainless steel construction throughout
• Heavy-duty reinforced control knobs with clear, durable markings
• Adjustable feet plus 2 additional rollers for levelling and repositioning
• Freestanding, freestanding installation type
• Manufactured in New Zealand
• Optional hot plate elements available
• Designed for easy cleaning, installation, and field servicing

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Refrigerated Base
• Door Type: Drawer
• Splash Back: Yes (165mm)
• No. of Doors: 2
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Ventilated | R134a
• Cooling Type: Ventilated | Tropical Rated
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Display Type: Digital Electronic
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Smooth Mild Steel (Ribbed or Chrome Optional)
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 6
• Power Rating: 13 kW|20A/phase max.|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
