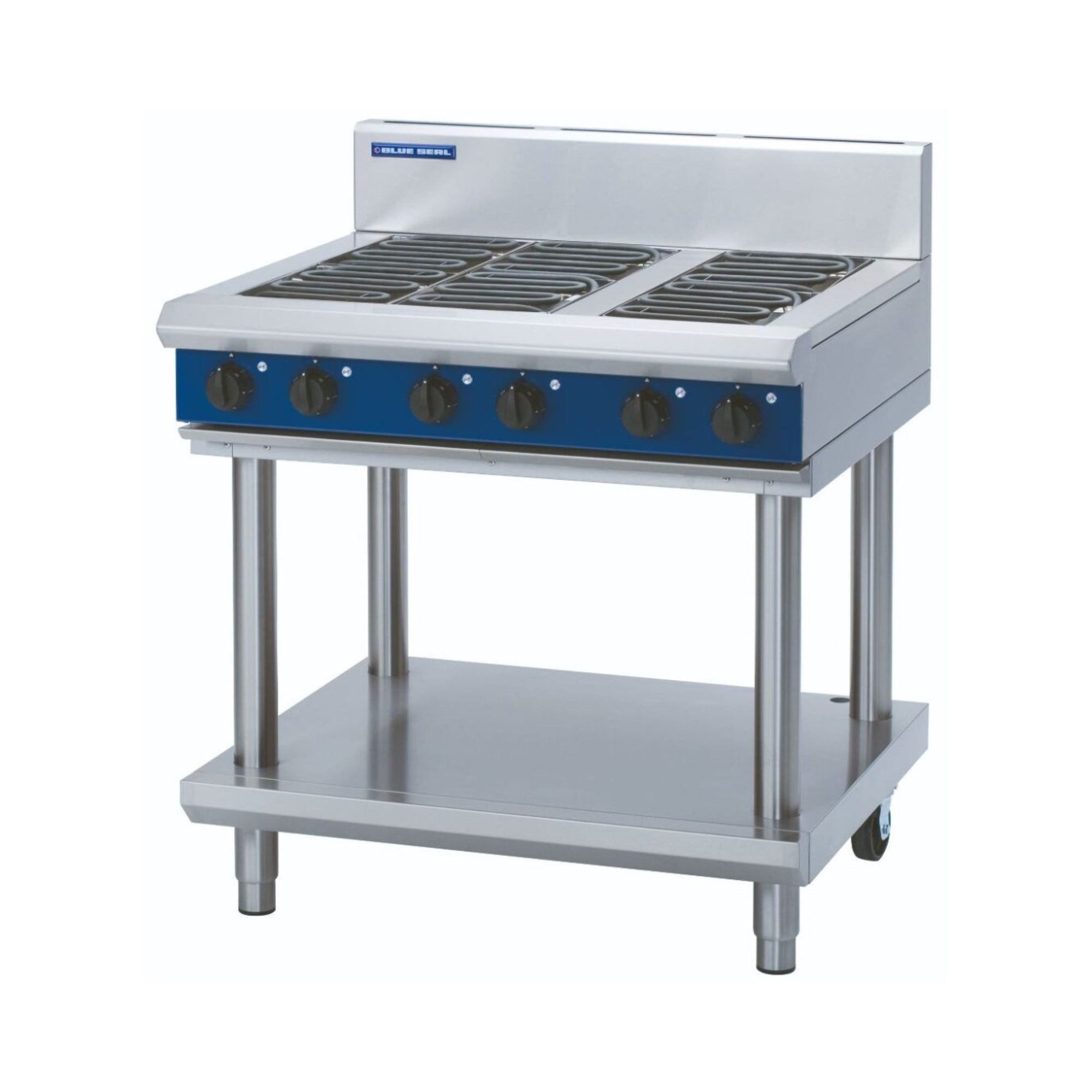

Blue Seal E516D-LS Evolution Series 900mm Electric Cooktop – Leg Stand

The Blue Seal E516D-LS is a 900mm commercial electric cooktop from the Evolution Series, mounted on a freestanding leg stand and built to handle the rigours of a busy professional kitchen. It features six 2.4kW radiant elements totalling 14.4kW of cooking power, each governed by an individual energy regulator control that allows precise adjustment from a full rolling boil down to a gentle simmer.

Manufactured in New Zealand from heavy-duty 304 stainless steel, the E516D-LS is designed with serviceability and cleanliness in mind. Adjustable feet and two additional rollers allow easy repositioning on the kitchen floor, while the reinforced control knobs with non-fade markings and strengthened shaft sleeves are built to withstand constant daily use without requiring frequent replacement. Optional solid hot plate elements can be substituted for the radiant elements where a different cooking surface is preferred.

Key Benefits

• Six independently controlled radiant elements let multiple cooks work different dishes at different heat levels simultaneously, maximising kitchen throughput.
• Energy regulator controls with six temperature settings including a simmer setting give chefs precise, repeatable heat management across the full cooking spectrum.
• Reinforced control knobs with non-fade markings and strengthened shaft sleeves resist the punishment of daily commercial use and reduce the frequency and cost of replacement parts.
• Adjustable feet combined with two integrated rollers make it straightforward to level the unit on uneven floors and reposition it for cleaning or service without heavy lifting.
• The leg stand configuration keeps the underside of the unit accessible, simplifying routine cleaning underneath and around the cooktop.
• An optional upgrade to 2kW solid hot plate elements provides flexibility to adapt the cooking surface to different menu requirements without replacing the whole unit.
• Heavy-duty 304 stainless steel construction resists corrosion and staining, maintaining a professional appearance even under intensive daily use.
• A 165mm splashback and suite-matching undershelf are included, protecting the wall and providing convenient storage to keep the workstation tidy.

Key Features

• Six 2.4kW radiant elements delivering a combined output of 14.4kW across a 900 x 480mm cooking surface
• Individual energy regulator controls per element with six temperature settings, including a simmer setting
• Heavy-duty reinforced control knobs with clear, non-fade markings and strengthened shaft sleeves for lasting durability
• Optional 2kW solid hot plate elements available as an alternative to radiant elements
• Freestanding leg stand design for stability and ease of access during cleaning and servicing
• Adjustable feet and two additional rollers for levelling and repositioning on the kitchen floor
• Heavy-duty 304 stainless steel finish throughout for durability and ease of cleaning
• Integrated 165mm splashback included to protect surrounding surfaces
• Suite-matching undershelf included for additional storage
• Electrical supply: 14.4kW, 400-415Vac, 50/60Hz, 3P+N+E, 20A per phase
• Freestanding, free-standing installation with manual knob variable power control
• Manufactured in New Zealand
• Designed for straightforward cleaning, installation and on-site servicing

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 6
• Cooking Surface Area (mm): 900 x 480
• Power Rating: 14.4 kW|20A/phase|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
