Overview

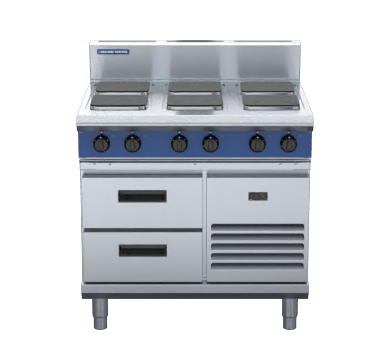

Blue Seal E516S-RB Evolution Series 900mm Electric Cooktop with Sealed Hobs and Refrigerated Base

The Blue Seal E516S-RB is a 900mm combination cooking and refrigeration unit from the Evolution Series, purpose-built for busy commercial kitchens that need to maximise bench space and workflow efficiency. Six sealed cast iron electric hob elements sit directly above an integrated refrigerated base, keeping ingredients cold and within arm's reach during service without the need for a separate underbench fridge.

Constructed from heavy-duty 304 stainless steel with an aluminised steel interior, this self-contained unit is modular and suite-matched to other Blue Seal Evolution Series equipment. The refrigerated base is tropical climate rated with automatic defrost and a digital electronic thermostat, while the cooktop's sealed hob design simplifies cleaning and supports the demanding pace of professional kitchen operations. Manufactured in New Zealand.

Key Benefits

• Combines six-zone electric cooking with integrated cold storage in a single 900mm footprint, freeing up valuable kitchen floor space.
• Ingredients stored in the refrigerated base drawers are immediately accessible during service, reducing movement and improving prep-to-plate efficiency.
• Each 2.6kW cast iron element delivers consistent, even heat across six switch positions, giving chefs precise control over cooking temperatures.
• Sealed hob elements prevent spills and food debris entering the cooktop cavity, making routine cleaning faster and maintaining hygiene standards.
• Tropical-climate-rated refrigeration with automatic defrost maintains a reliable 0°C to 4°C hold (adjustable -2°C to +8°C), keeping ingredients safe throughout a full service period.
• Modular, suite-matched design integrates seamlessly with other Blue Seal Evolution Series units for a cohesive, professional kitchen layout.
• Power indicator lights on each element allow staff to confirm at a glance which zones are active, supporting safe and efficient kitchen operation.

Key Features

• 6 x 2.6kW cast iron hot plate elements with thermal protection, totalling 15.6kW cooking power
• Six heat position switch per element with large, heat-resistant reinforced control knobs
• Power indicator light for each individual element control
• Vitreous enamelled control panel for durability and easy cleaning
• Sealed hob configuration enhances hygiene and simplifies maintenance
• Integrated refrigerated base with two GN 1/1 drawers, each accommodating 100mm deep pans
• Ventilated refrigeration system using R134a refrigerant
• Digital electronic thermostat with automatic defrost for the refrigerated base
• Temperature range: -2°C to +8°C; tropical climate rated
• 304 stainless steel exterior construction with heavy-duty finish
• Aluminised steel internal construction for the refrigerated base
• 165mm splashback included
• Self-contained, suite-matched modular design compatible with Blue Seal Evolution Series
• Freestanding installation; no underbench support required
• Cooktop power supply: 400-415V, 3P+N+E, 22A, 50/60Hz
• Refrigeration power supply: 230-240V, 1P+N+E, 50/60Hz
• Manufactured in New Zealand
• 12-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Refrigerated Base
• Door Type: Drawer
• Splash Back: Yes (165mm)
• No. of Doors: 2
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Ventilated | R134a
• Cooling Type: Ventilated | Tropical Rated
• Installation Type: Freestanding
• Control Type: Sealed Hob Control
• Temperature Control: Digital | -2°C to +8°C
• Mounting Type: Freestanding
• Display Type: Digital Electronic
• Fuel Type: Electric
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 6
• Power Rating: 15.6 kW|22A|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
