Overview

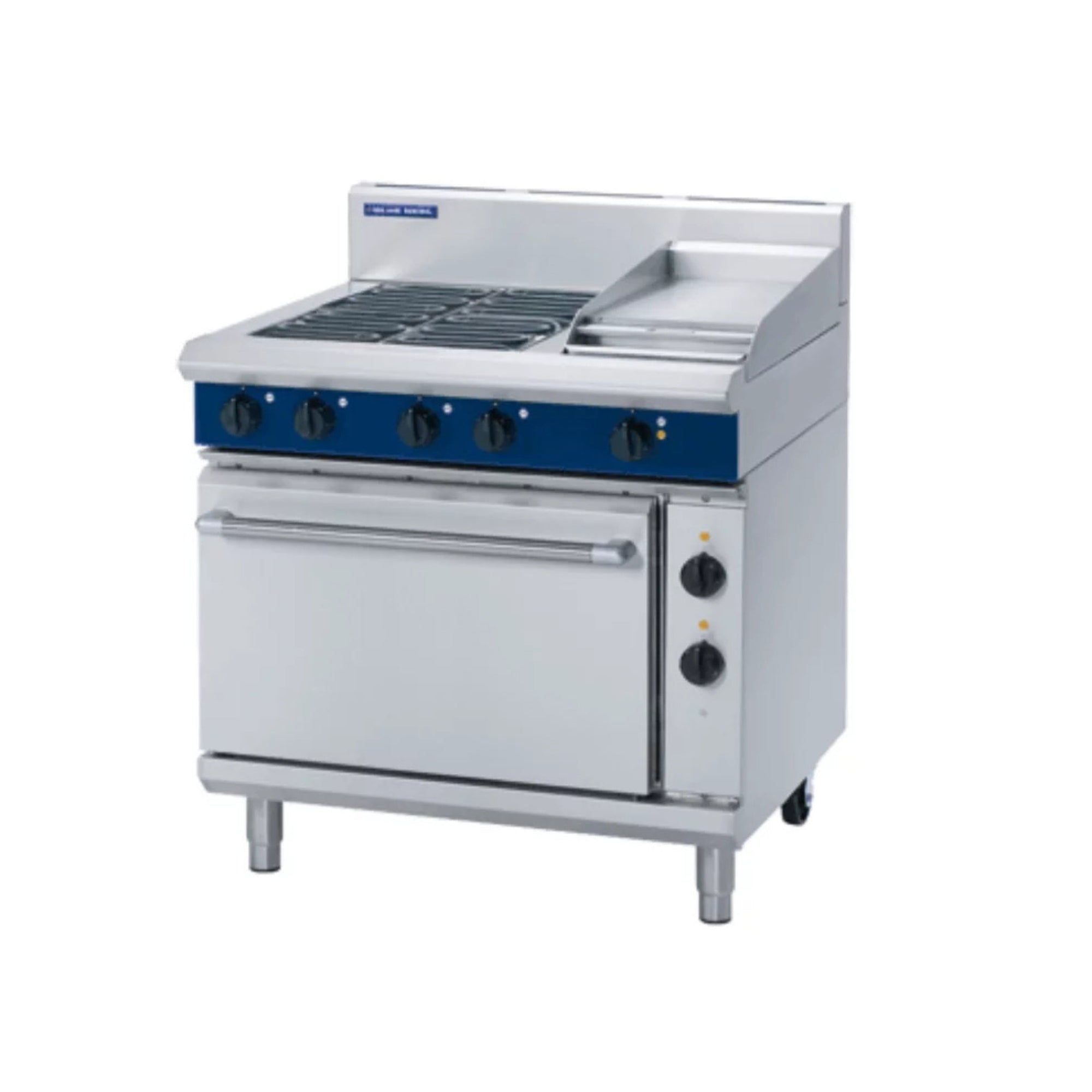

Blue Seal E56C Evolution Series 900mm Electric Range Convection Oven

The Blue Seal E56C Evolution Series is a 900mm wide commercial electric range combining a four-element radiant cooktop with a 300mm griddle and a GN 2/1 fan-forced convection oven. Manufactured in New Zealand from heavy-duty 304 stainless steel, it is engineered to handle the sustained demands of high-volume commercial kitchens, cafes, and bakeries requiring versatile, multi-zone cooking in a single freestanding unit.

The cooktop features four 2.4kW open radiant elements offering rapid heat-up and responsive temperature adjustment across six settings plus a simmer setting, while the 3.4kW griddle element (positioned on the right-hand side as standard) provides a 300mm smooth mild steel grilling surface with a 12mm thick plate. The integrated convection oven uses 6.5kW heating elements, heavy-duty motors, and circulation fans to deliver even heat distribution across four rack positions, reducing cooking times and allowing food to be prepared at lower temperatures with consistent results.

Key Benefits

• Fan-forced convection circulates heat evenly across all four rack positions, reducing cooking times and enabling lower-temperature preparation for more consistent baking and roasting outcomes.
• Four open radiant elements with six heat settings plus a simmer setting give chefs precise, responsive control over multiple cooking zones simultaneously, supporting complex multi-dish service.
• GN 2/1 oven capacity accommodates full-size gastronorm trays, streamlining batch cooking and making the unit suitable for high-volume prep in busy kitchens.
• The integrated 300mm griddle with a 12mm thick mild steel plate delivers sustained, even searing heat ideal for proteins, vegetables, and breakfast items without requiring a separate piece of equipment.
• Cast iron sole plates within the oven ensure uniform heat distribution across the oven floor, improving consistency across all cooking modes including static and convection.
• Adjustable feet and two additional rear rollers make installation, repositioning, and routine servicing straightforward without specialist tools.
• The vitreous enamelled, fully welded oven liner resists staining and grease absorption, reducing cleaning time and effort between services.
• Modular design integrates seamlessly with other Blue Seal Evolution Series equipment, allowing kitchens to build out a coordinated cooking suite as needs grow.
• Optional solid hot plate elements provide an alternative cooktop configuration for kitchens that prefer enclosed-plate cooking surfaces over open radiant elements.

Key Features

• 900mm wide freestanding electric range with integrated GN 2/1 convection oven
• Four 2.4kW open radiant cooktop elements with six temperature settings plus a simmer setting
• One 3.4kW griddle element powering a 300mm smooth mild steel griddle plate, positioned on the right-hand side as standard
• 12mm thick mild steel griddle plate; ribbed or chrome surface available as options
• 6.5kW oven heating elements with heavy-duty motors and circulation fans for fan-forced convection
• GN 2/1 oven capacity with four-position racking system
• Cast iron sole plates for even heat distribution across the oven floor
• Thermostatic oven temperature control ranging from 90°C to 300°C
• Fully welded oven liner with vitreous enamel coating for durability and easy cleaning
• Drop-down oven door with welded frame for robust, long-term use
• Cool-touch stainless steel door handle for safe operation during service
• Heavy-duty reinforced control knobs for reliable manual operation under constant use
• Heavy-duty 304 stainless steel exterior construction throughout
• 165mm splashback included
• Adjustable feet plus two rear rollers for levelling and repositioning
• Optional solid 2kW hot plate elements available as an alternative to open radiant elements
• Power supply: 19.6kW, 400-415Vac, 3P+N+E, 50/60Hz, 30A per phase
• Freestanding installation type; modular compatibility with the Blue Seal Evolution Series
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Smooth Mild Steel (Ribbed or Chrome Optional)
• Number of Burners: 6
• Cooking Surface Area (mm): 900 x 480
• Power Rating: 20.9 kW max 400-415Vac|3P+N+E; Phase loading|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
