Overview

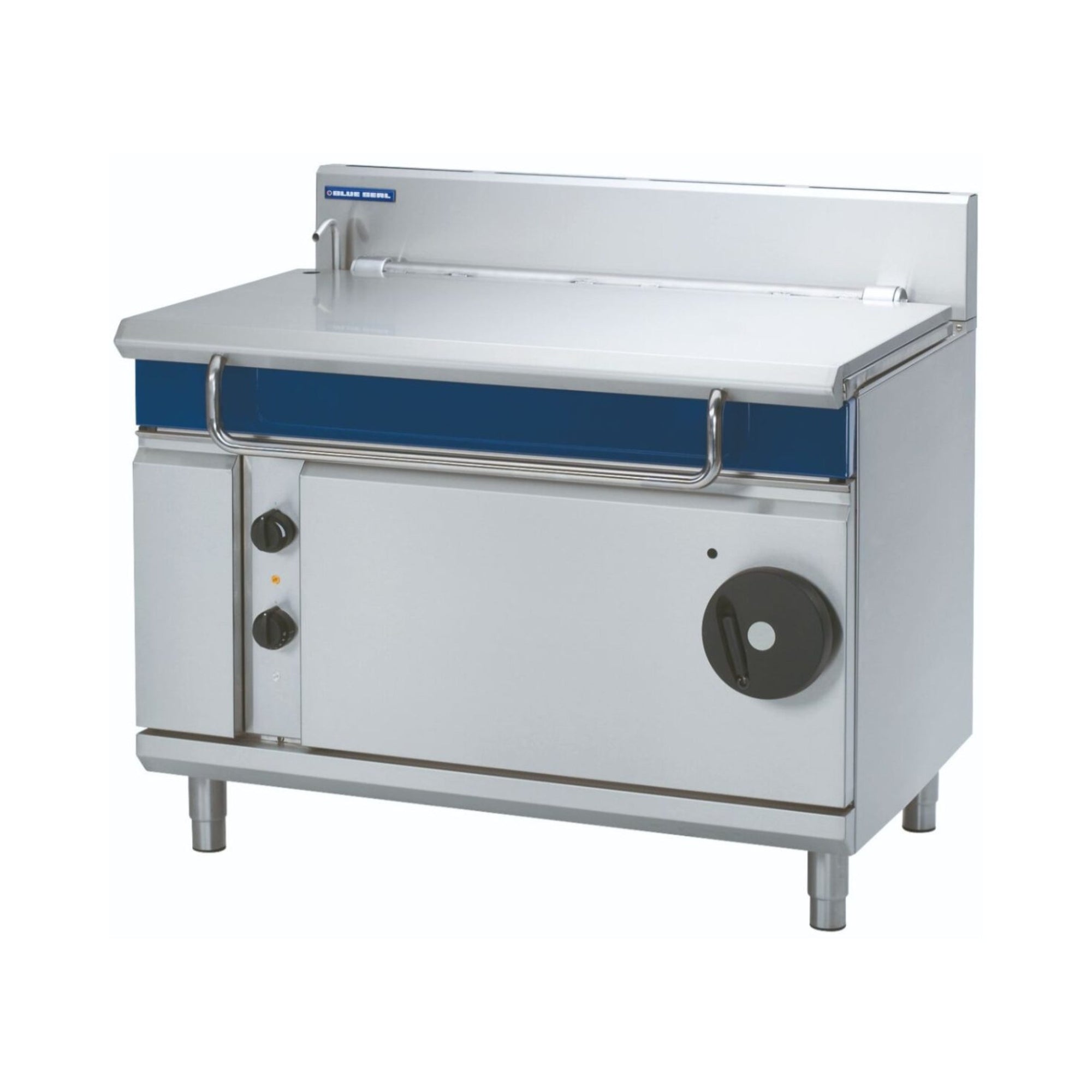

Blue Seal E580-12 Evolution Series 1200mm Electric Tilting Bratt Pan

The Blue Seal E580-12 is a 1200mm wide, 120-litre electric tilting bratt pan from the Evolution Series, designed for high-volume commercial kitchens across restaurants, hotels, hospitals, schools and large-scale catering environments. Three 5.66kW stainless steel heating elements combine to deliver 17kW of total power across a 4,860cm² cooking surface that is 215mm deep, supporting rapid heat-up and consistent results throughout demanding batch cooking operations including braising, boiling, frying, poaching, roasting and steaming.

Built throughout from 304 stainless steel, the E580-12 features a pan base measuring 12mm in thickness that promotes uniform heat spread and excellent retention, paired with a 2mm pan body for lasting durability. A manually operated tilting mechanism with fold-away handle, a generously sized pouring spout engineered for controlled draining, a robust lid and hinge assembly, and a galvanised steel chassis all contribute to a unit that is practical, straightforward to maintain and well suited to the rigours of professional kitchen service.

Key Benefits

• 120-litre capacity and a 4,860cm² cooking surface support large-batch production, reducing the number of cook cycles required during busy service periods.
• A pan base 12mm thick in solid stainless steel promotes even temperature distribution across the entire cooking surface, minimising hot spots and improving consistency batch to batch.
• Thermostatic control spanning 50°C to 320°C means the same unit can handle delicate poaching at low temperatures through to high-heat searing and frying without any reconfiguration.
• The manual tilting mechanism combined with a fold-away handle allows smooth, controlled pouring during service, improving operator safety and reducing food waste when portioning into serving vessels.
• An over-temperature safety cut-out protects both the equipment and the food product, lowering the risk of damage during periods of unattended cooking.
• Robust stainless steel legs fitted with adjustable feet allow precise levelling on uneven floors, which is important for both uniform cooking and safe tilting operation.
• The all-stainless pan interior features rounded corners alongside an oversized spout designed for efficient, mess-free draining, reducing cleaning labour between cooking sessions.
• Freestanding installation requiring only a single electrical connection makes positioning and commissioning straightforward, with no built-in services necessary.

Key Features

• 1200mm wide freestanding electric tilting bratt pan from the Blue Seal Evolution Series
• 120-litre cooking capacity
• Cooking surface dimensions: 1,080mm x 450mm (4,860cm²), 215mm deep
• Three 5.66kW stainless steel heating elements totalling 17kW
• Electrical supply: 400-415V AC, 3P+N+E, 50/60Hz
• Thermostatic temperature control ranging from 50°C to 320°C
• Large, easy-to-use control knobs with heat-resistant reinforced construction
• Over-temperature safety cut-out for added protection
• Pan base constructed from stainless steel at 12mm thickness for superior heat retention and distribution
• Full stainless steel pan with 2mm thick pan body
• Rounded pan corners for easier cleaning and food removal
• Oversized pouring spout for controlled and efficient transfer of food and liquid
• Manually operated tilting mechanism
• Fold-away handle for compact operation during service
• Robust lid and hinge assembly built for heavy-duty use
• Galvanised steel chassis for structural durability
• Sturdy stainless steel legs with height-adjustable feet for precise levelling
• 165mm splashback included
• 304 stainless steel construction throughout
• Height with lid open: 1,566mm
• Overall dimensions: 1,200mm W x 812mm D x 1,085mm H
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Shipping Weight: 300
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 120
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat with Manual Tilt
• Temperature Control: Thermostat | 90-240°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 1
• Power Rating: 17kW 400-415Vac|3P+N+E; Phase loading|50/60Hz
• Power Supply: 400-415 Vac | 3P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E 50/60Hz
