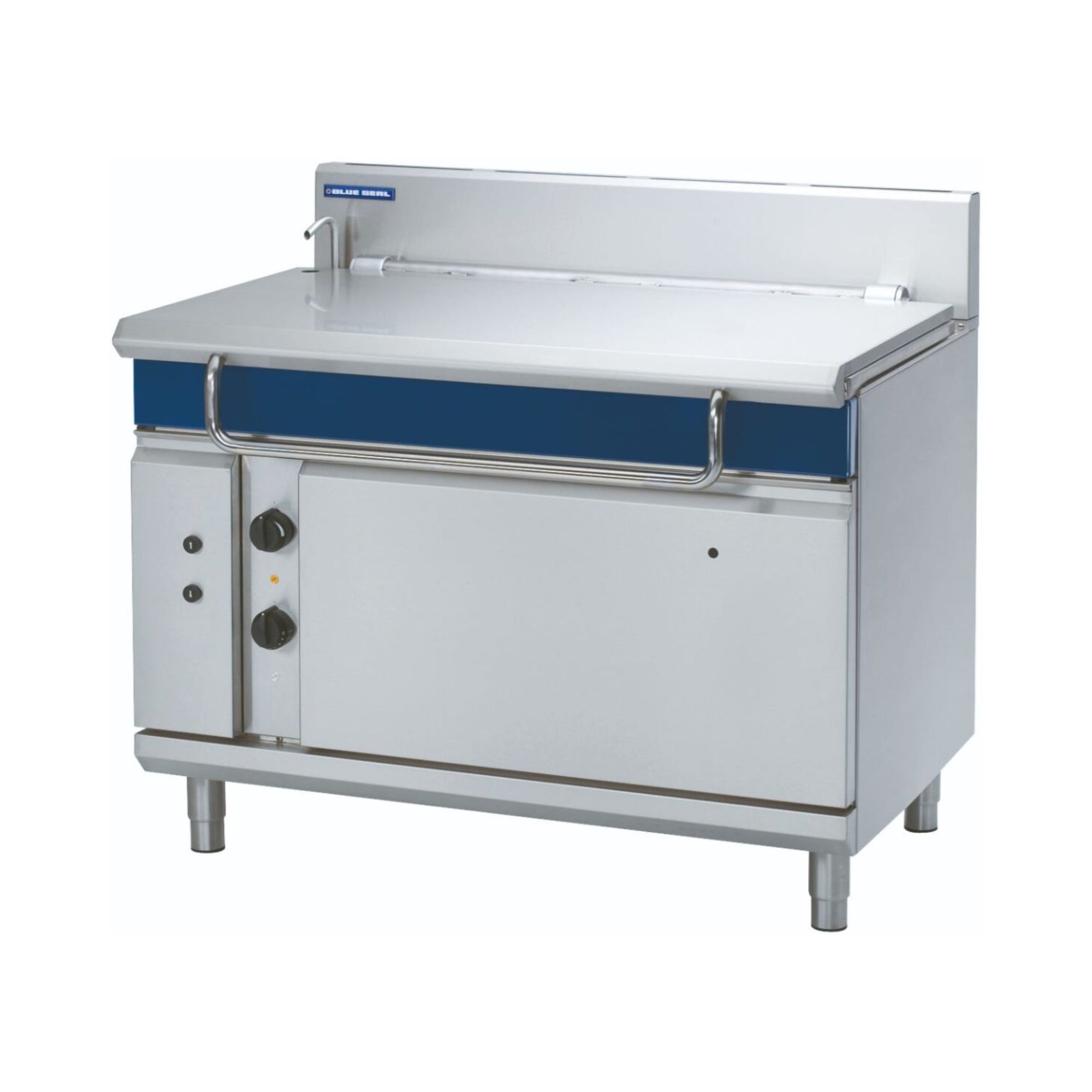

Blue Seal E580-12E Evolution Series 1200mm Electric Tilting Bratt Pan

The Blue Seal E580-12E is a 1200mm electric tilting bratt pan from the Evolution Series, purpose-built for high-volume commercial kitchens in restaurants, hotels, hospitals, schools, aged care facilities, and large-scale catering operations. With a generous 120-litre stainless steel cooking pan and a powerful 17kW heating system comprising three 5.66kW stainless steel elements, it delivers rapid heat-up, precise thermostatic control from 50°C to 320°C, and consistent results across a 4,860cm² cooking surface.

Versatility is a defining strength of the E580-12E, supporting braising, frying, boiling, steaming, poaching, roasting, simmering, and bulk batch cooking all in one unit. The electric power tilting mechanism enables smooth, safe pan operation for effortless pouring and food transfer, while the 12mm thick even-heat pan base, 2mm full stainless steel pan body, heavy-duty galvanised steel chassis, and adjustable stainless steel legs ensure long-term durability and hygiene in the most demanding kitchen environments.

Key Benefits

• Electric power tilting mechanism allows operators to pour, portion, and transfer food safely and effortlessly, reducing manual handling and improving workplace safety.
• The 12mm thick stainless steel even-heat pan base delivers outstanding heat retention and uniform heat distribution across the entire 4,860cm² cooking surface, minimising hot spots and improving cooking consistency.
• Wide thermostatic temperature range of 50°C to 320°C provides precise control across a broad variety of cooking methods, from gentle simmering to high-temperature frying.
• 120-litre capacity makes the E580-12E ideal for high-volume batch cooking, reducing the number of cooking cycles needed during busy service periods.
• Over-temperature safety cut-out protects the equipment and kitchen staff by automatically shutting down heating if a critical temperature is exceeded.
• Large capacity pouring spout combined with rounded pan corners simplifies emptying, portioning, and cleaning, saving time between cooking cycles.
• Heavy-duty lid and hinge system retains heat during cooking and protects contents, contributing to energy efficiency and food safety.
• Reinforced, heat-resistant control knobs and easy-access service design reduce downtime and simplify routine maintenance and cleaning.
• Adjustable stainless steel feet allow the unit to be levelled precisely on uneven floors, ensuring stable operation and consistent cooking performance.

Key Features

• 1200mm wide freestanding electric tilting bratt pan from the Blue Seal Evolution Series
• 120-litre cooking capacity with a cooking surface of 1,080mm x 450mm (4,860cm²) and 215mm pan depth
• Three 5.66kW stainless steel heating elements providing a total power output of 17kW
• Electrical supply: 400–415V AC, 3P+N+E, 50/60Hz
• Thermostatic temperature control ranging from 50°C to 320°C
• Electric power tilting mechanism for smooth, controlled pan operation
• Over-temperature safety cut-out for operator and equipment protection
• Full stainless steel pan construction with a 2mm thick pan body and rounded corners for easy cleaning
• 12mm thick stainless steel even-heat pan base for superior heat retention and uniform cooking results
• Large capacity pouring spout for efficient and controlled emptying
• Heavy-duty lid and hinge system to retain heat and protect contents during cooking
• Galvanised steel chassis for robust structural integrity
• Heavy-duty stainless steel legs with adjustable feet for stable, level installation
• Large, easy-to-use control knobs with heat-resistant reinforced construction
• 165mm splashback included
• 304 stainless steel exterior construction
• Freestanding installation; height with lid open is 1,566mm
• Designed for easy cleaning, installation, and servicing
• Made in New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Shipping Weight: 300
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 120
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat with Electric Tilt
• Temperature Control: Thermostat | 90-240°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 1
• Power Rating: 17kW 400-415Vac|3P+N+E; Phase loading|50/60Hz
• Power Supply: 400-415 Vac | 3P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E 50/60Hz
