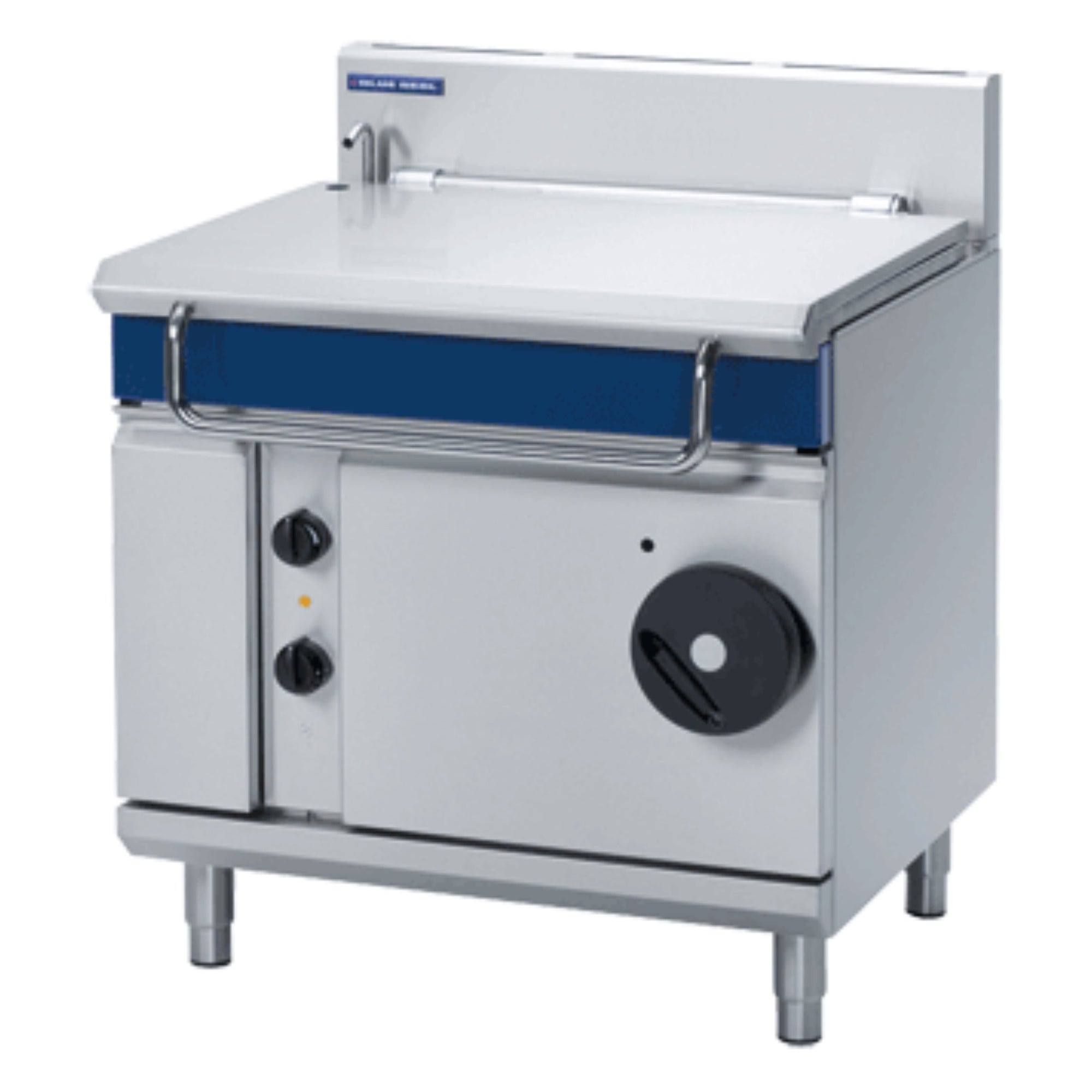

Blue Seal E580-8 Evolution Series 900mm Electric Tilting Bratt Pan

The Blue Seal E580-8 is a 900mm electric tilting bratt pan from the Evolution Series, purpose-built for high-volume commercial kitchens including restaurants, hotels, schools, hospitals, residential aged care settings, and large-scale catering and institutional operations. The 80-litre stainless steel cooking pan delivers versatile performance across braising, boiling, frying, poaching, steaming, and roasting, making it a single-unit solution for demanding foodservice environments.

Three 4kW stainless steel heating elements combine for a 12kW total output, providing rapid heat-up and precise thermostatic control across a wide 50 to 320°C temperature range. Built throughout from 304 stainless steel and manufactured in New Zealand to commercial-grade standards, the E580-8 is engineered for daily heavy-duty use, straightforward cleaning, and long-term reliability in busy kitchen environments.

Key Benefits

• A 50 to 320°C thermostatic temperature range covers every cooking technique from gentle poaching through to high-heat searing and frying, all within a single piece of equipment.
• The 12mm thick pan base spreads heat uniformly across the full 780mm x 450mm cooking surface, eliminating hot spots so every batch is cooked to a consistent standard.
• The fold-away handle and manually operated tilting mechanism give operators smooth, controlled pouring for safe food transfer and accurate portioning during high-pressure service periods.
• An 80-litre capacity supports large-batch production for institutional, catering, and hospitality environments, cutting the number of cook cycles and reducing labour demands at peak times.
• A thermal overload safety cut-out activates automatically if operating temperatures are exceeded, protecting both equipment and kitchen staff and supporting a safer working environment.
• Rounded pan corners, a large-capacity pouring spout, and a full stainless steel interior make cleaning straightforward and keep downtime between service sessions to a minimum.
• Stainless steel legs fitted with adjustable feet compensate for uneven floor surfaces, keeping the unit stable and correctly levelled for safe operation.
• The freestanding 900mm footprint integrates neatly into existing Evolution Series kitchens or operates as a self-contained high-capacity cooking station.
• New Zealand manufactured with 304 stainless steel construction throughout ensures durability and maintains commercial-grade performance under daily heavy-duty use.

Key Features

• 900mm wide freestanding electric tilting bratt pan, Evolution Series
• 80-litre cooking capacity
• Cooking surface: 780mm x 450mm x 215mm deep (3,510cm²)
• Three 4kW stainless steel heating elements, 12kW total output
• Thermostatic temperature control: 50 to 320°C
• Pan base 12mm thick for superior heat retention and even heat distribution across the cooking surface
• Full stainless steel pan with 2mm thick pan body and rounded corners
• Large-capacity pouring spout for controlled food transfer and serving
• Manually operated tilting mechanism with fold-away handle
• Robust lid and hinge system, together with a thermal overload safety cut-out for operator protection
• Heavy-duty galvanised steel chassis
• Stainless steel legs fitted with adjustable feet for levelling on uneven floors
• Large, heat-resistant reinforced control knobs for easy operation
• 165mm splashback included
• 304 stainless steel construction throughout
• Freestanding installation type
• Electrical supply: 12kW, 400–415Vac, 3P+N+E, 50/60Hz
• Height with lid open: 1,566mm
• Manufactured in New Zealand
• Designed for easy cleaning, installation, and servicing

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 80
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat with Manual Tilt
• Temperature Control: Thermostat | 90-240°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 1
• Power Rating: 12kW 400-415Vac|3P+N+E|50/60Hz|Phase loading
• Power Supply: 400-415 Vac | 3P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E 50/60Hz
