Overview

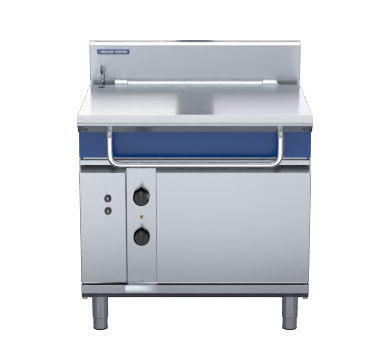

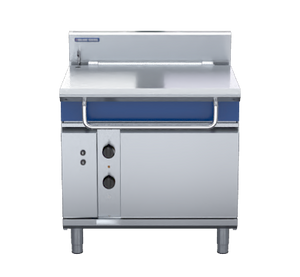

Blue Seal E580-8E Evolution Series 900mm Electric Tilting Bratt Pan

The Blue Seal E580-8E is a 900mm electric tilting bratt pan from the Evolution Series, purpose-built for high-volume commercial kitchens in restaurants, hotels, hospitals, schools, aged care facilities, and catering operations. With an 80-litre cooking capacity, 12kW heating system comprising three 4kW stainless steel elements, and a precise thermostatic control range of 50°C to 320°C, it delivers rapid, even heat across a generous 3,510cm² cooking surface for everything from braising and frying to boiling, poaching, roasting, and simmering.

Constructed from 304 stainless steel throughout, the E580-8E features a 12mm thick even-heat pan base for superior heat retention, a 2mm thick pan body, and an electric power tilting mechanism that makes draining, portioning, and transferring large batches safer and effortless. Manufactured in New Zealand and freestanding in configuration, this bratt pan is engineered for longevity, hygiene, and ease of cleaning and servicing in the most demanding commercial kitchen environments.

Key Benefits

• Electric power tilting mechanism allows smooth, safe pan operation for pouring and food transfer, significantly reducing manual handling strain during high-volume service.
• The 12mm thick stainless steel even-heat pan base retains and distributes heat consistently across the entire 3,510cm² cooking surface, minimising hot spots and ensuring uniform batch cooking results.
• A wide thermostatic control range of 50°C to 320°C gives chefs precise temperature management across a full spectrum of cooking techniques, from gentle simmering to high-temperature searing.
• Three independent 4kW stainless steel heating elements totalling 12kW deliver rapid heat-up times, reducing waiting periods between cooking batches during busy service periods.
• The large capacity pouring spout and rounded interior corners simplify emptying and cleaning, cutting downtime between cooking cycles.
• An over-temperature safety cut-out protects both the pan and its contents, reducing the risk of equipment damage or food spoilage during unattended cooking.
• Heavy-duty stainless steel legs with adjustable feet allow the unit to be levelled precisely on uneven kitchen floors, improving both safety and pan drainage.
• The galvanised steel chassis and heavy-duty lid and hinge system provide a robust structural foundation built to withstand the rigours of continuous commercial use.
• Freestanding and easy-to-service design simplifies installation, routine maintenance, and cleaning, reducing operational downtime.

Key Features

• 900mm wide freestanding electric tilting bratt pan from the Blue Seal Evolution Series
• 80-litre cooking capacity
• Cooking surface: 780mm x 450mm x 215mm deep, providing 3,510cm² of usable cooking area
• 3 x 4kW stainless steel heating elements, totalling 12kW
• Thermostatic temperature control range: 50°C to 320°C
• Electric power tilting mechanism for smooth, effortless pan operation
• 12mm thick stainless steel even-heat pan base for superior heat retention and distribution
• Full stainless steel pan with 2mm thick pan body
• Large capacity pouring spout for efficient and controlled emptying
• Over-temperature safety cut-out for added operator and equipment protection
• Heavy-duty lid and hinge system
• Galvanised steel chassis for structural rigidity
• Heavy-duty stainless steel legs with adjustable feet
• Large, heat-resistant reinforced control knobs for ease of use
• 165mm splashback included
• 304 stainless steel construction throughout
• Height with lid open: 1,566mm
• Electrical requirements: 12kW, 400-415Vac, 50/60Hz, 3P+N+E
• Manufactured in New Zealand
• Designed for easy cleaning, installation, and servicing

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 80
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat with Electric Tilt
• Temperature Control: Thermostat | 90-240°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 1
• Power Rating: 12kW 400-415Vac|3P+N+E; Phase loading|50/60Hz
• Power Supply: 400-415 Vac | 3P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E 50/60Hz
