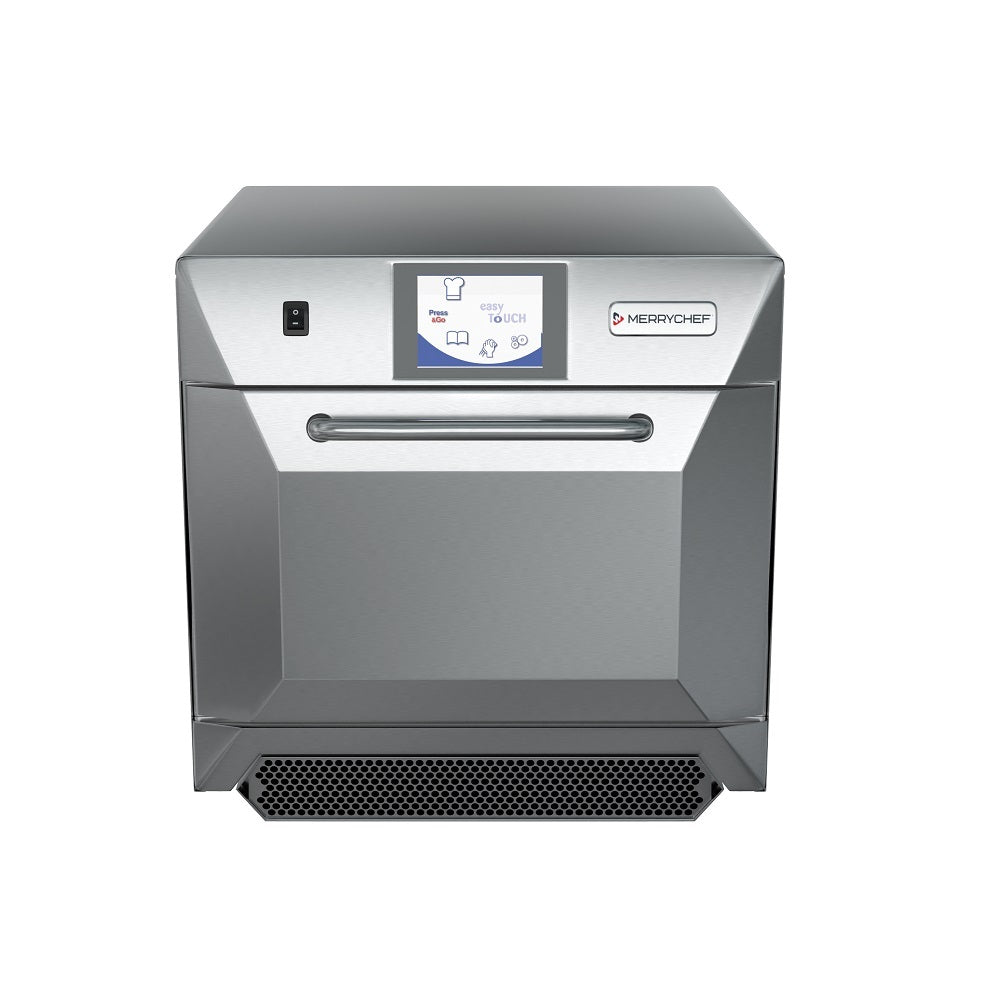

Merrychef e5 HP Advanced High Speed Cook Oven

The Merrychef e5 HP is a commercial advanced high speed cook oven that combines microwave and convection heat through Merrychef's Advanced Cooking Technology, delivering cooking speeds up to five times faster than a conventional convection oven. With a 1.4 kW microwave output paired with 3.2 kW convection heating, it rapidly cooks, toasts, bakes, reheats, and regenerates both fresh and frozen menu items with consistent browning, crisping, and heating results across every serve.

Designed for restaurants, cafes, hotels, canteens, and high-volume hospitality venues, the e5 HP features a 2/3 GN compatible cavity with dual rack positions, a ventless catalytic converter system for flexible kitchen placement, and a colour easyTouch icon-driven touchscreen capable of storing up to 1,024 multi-stage programmable recipes. Stainless steel construction, cool-to-touch door exteriors, self-diagnostics, USB menu transfer, and ethernet connectivity via MenuConnect make this oven a practical, low-maintenance workhorse for demanding foodservice environments.

Key Benefits

• Cooks up to five times faster than a conventional convection oven, dramatically increasing throughput during peak service periods.
• Combined microwave and convection cooking delivers thorough, even results with quality browning and crisping rather than simply reheating food.
• Ventless operation through the built-in catalytic converter removes the need for traditional extraction canopies in many installations, reducing setup costs and allowing flexible bench positioning.
• Storage of up to 1,024 multi-stage programmable recipes with up to six stages per program minimises staff training time and ensures repeatable, consistent results across different operators and shifts.
• Three selectable cooking power levels balance energy efficiency against speed, allowing operators to optimise output for quieter or busier service periods.
• Quick preheat function reduces waiting time between service periods and after startup, keeping the oven ready when demand is unpredictable.
• MenuConnect ethernet connectivity enables remote menu updates and remote diagnostics, reducing downtime and simplifying menu rollouts across multiple sites.
• Front-accessible air filter and easy-clean stainless steel interior reduce the time and effort required for routine maintenance and end-of-day cleaning.
• Self-diagnostic capability continuously monitors internal components, supporting proactive servicing and minimising unexpected breakdowns in busy kitchen environments.

Key Features

• Advanced Cooking Technology combining 1.4 kW microwave output with 3.2 kW convection heating for a total of approximately 6.2 kW
• Oven cavity compatible with up to 2/3 gastronorm (GN) tray size
• Two rack positions to accommodate multi-portion dishes and larger menu items
• Cooking speeds up to five times faster than a conventional convection oven
• Ventless cooking capability via integrated catalytic converter
• Colour easyTouch icon-driven touchscreen control panel
• Stores up to 1,024 multi-stage programmable recipe programs
• Each recipe program offers up to six individual stages with programmable cooking times, microwave power settings, and user instructions per stage
• Three cooking power levels for flexible energy-saving or high-speed operation
• Quick preheat function for fast oven readiness
• Includes turntable for even browning
• Precise temperature setting range from 100°C to 275°C
• Easy menu updates and data transfer via USB
• MenuConnect ethernet connection for remote menu updating and diagnostics
• Self-diagnostics system to monitor internal components
• Cool-to-touch door exterior for operator safety
• Stainless steel construction throughout
• Easy-clean interior surfaces
• Front-facing air filter with easy access for routine maintenance
• Countertop/benchtop installation
• Electrical: 400-415 V, 50 Hz, 2P+N+E, 20 A, 5-pin plug
• Country of origin: UK
• 2-year parts and labour warranty

Specifications

• Width (mm): 711
• Depth (mm): 643
• Height (mm): 644
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 118
• Packed Width (mm): 770.0
• Packed Height (mm): 940.0
• Packed Depth (mm): 860.0
• Shipping Cubic: 0.622468000m3
• Material: Stainless Steel
• Country of Origin: UK
• Warranty (months): 24
• Installation Type: Countertop
• Control Type: easyTouch Touchscreen
• Mounting Type: Benchtop
• Fuel Type: Electric
• Power Rating: 20A 5 pin plug|2P+N+E|400-415V|50Hz|6.2 kW
• Power Supply: 400-415V 50Hz 2P+N+E 32A
• Voltage/Phase: 230V 50Hz Single Phase
• Temperature Range: 100°C to 275°C
