Overview

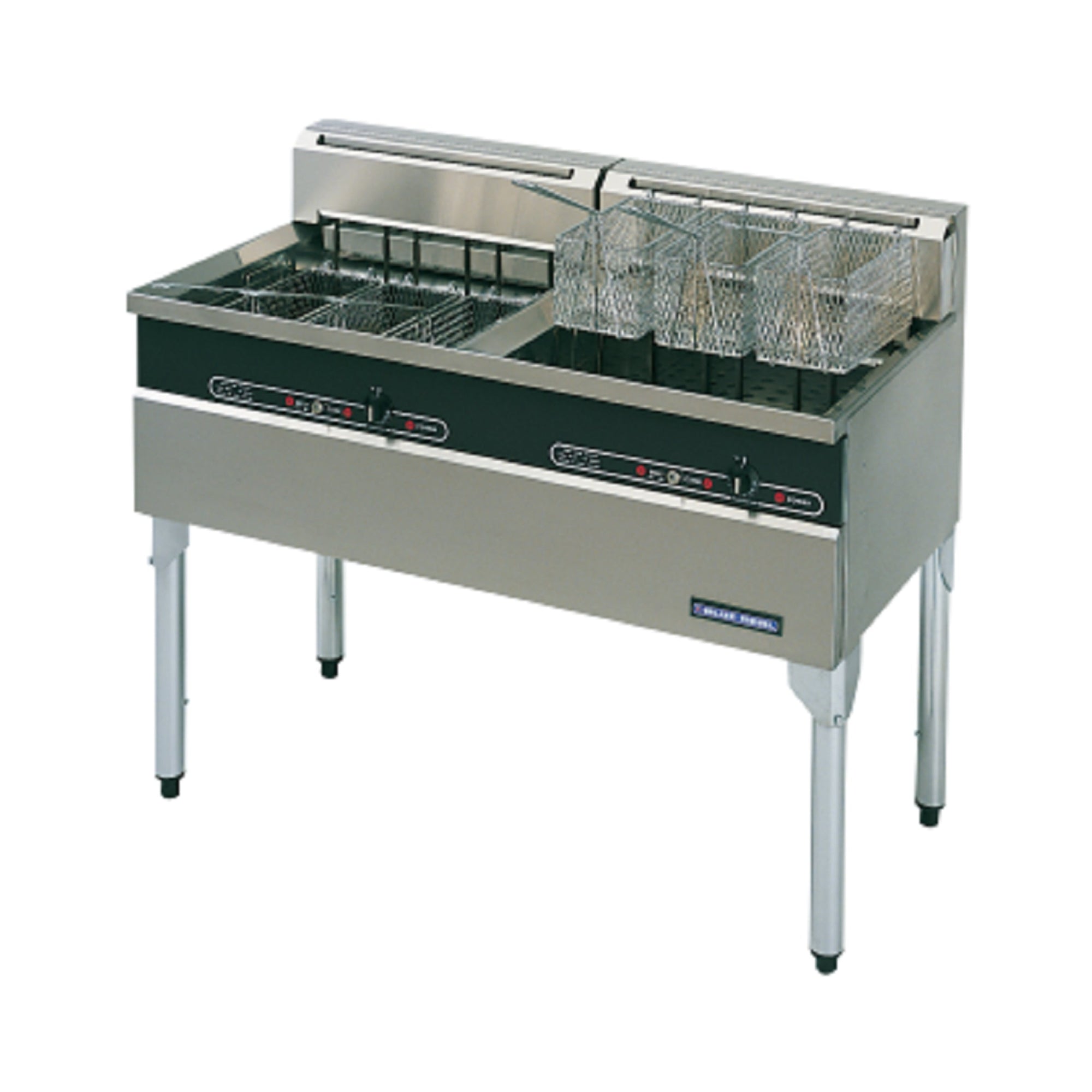

Blue Seal E604 Evolution Series 1200mm Twin Pan Electric Fish Fryer

The Blue Seal E604 Evolution Series is a 1200mm wide freestanding twin pan electric fish fryer purpose-built for high-volume commercial operations such as fish and chip shops, takeaway outlets, and busy institutional kitchens. Each of the two pans holds 30 litres of oil and is heated by a dedicated 17kW element, delivering a combined 34kW of power for rapid heat-up and fast recovery between loads, keeping pace with demand throughout even the most intense service periods.

Constructed from 304 stainless steel with a 165mm splashback, the E604 is built for durability and straightforward cleaning in demanding environments. A vitreous enamel control panel wipes clean effortlessly, while reinforced tank bash bars protect each pan from everyday knocks and extend service life. Each pan features independent variable thermostatic control with a melt cycle switch and over-temperature reset button, ensuring precise, consistent frying results and safe operation throughout the day. The unit stands on robust chrome-plated legs fitted with adjustable feet and ships with three standard baskets included.

Key Benefits

• Having two separate 30-litre pans means different products can be prepared at the same time across each side of the fryer, improving workflow and output during busy service periods.
• Two independent 17kW elements provide a combined 34kW of heating power, enabling fast heat-up and rapid oil temperature recovery between consecutive loads.
• Independent thermostatic controls on each pan let operators set and maintain precise frying temperatures, protecting oil quality and delivering consistent results.
• The melt cycle switch safely brings solid or semi-solid frying fats up to operating temperature without damaging elements or overheating oil.
• Over-temperature reset buttons on each pan provide an added safety layer, protecting the unit and operators in the event of a temperature fault.
• Reinforced tank bash bars absorb impact from baskets and utensils, reducing wear on the tanks and extending the working life of the fryer.
• The vitreous enamel control panel resists grease absorption and wipes down quickly, reducing cleaning time between service periods.
• Sturdy chrome-plated legs paired with individually adjustable feet allow the fryer to be levelled accurately on uneven kitchen floors, contributing to stable and safe operation.

Key Features

• 1200mm wide freestanding twin pan electric fryer from the Blue Seal Evolution Series
• 30-litre oil capacity per pan for continuous high-volume frying
• Two independent 17kW heating elements (34kW combined); 400-415V, 3P+N+E, 50/60Hz
• Independent variable thermostat on each pan; temperature range 90-185°C
• Melt cycle switch on each pan for safe start-up with solid fats
• Over-temperature reset button on each pan for operational safety
• Digital electronic temperature control
• Reinforced tank bash bar on each pan to protect against impact and extend tank life
• Easy-clean vitreous enamel control panel
• 165mm stainless steel splashback
• Constructed from 304 stainless steel
• Chrome-plated legs with individually adjustable feet
• Supplied with three standard baskets
• Country of origin: New Zealand
• Dimensions: 1200mm (W) x 585mm (D) x 1030mm (H)
• Unit weight: 151kg

Specifications

• Width (mm): 1200
• Depth (mm): 585
• Height (mm): 1030
• Weight (kg): 361.0
• Colour: Stainless Steel
• Shipping Weight: 165
• Packed Width (mm): 1345.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 690.0
• Shipping Cubic: 1164.702750000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 30
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Digital Electronic
• Temperature Control: Thermostat | 90-185°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 2
• Power Rating: 34kW|3P+N+E; Phase loading|400-415V
• Power Supply: 400-415 Vac | 3P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
