Overview

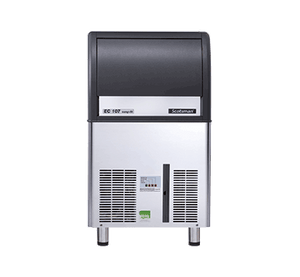

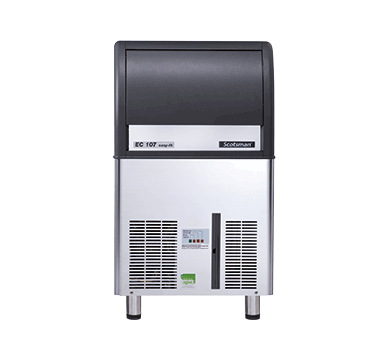

Scotsman ECM 107 AS OX Self-Contained Gourmet Ice Maker with EcoX and XSafe Technology – 51kg/24hr

The Scotsman ECM 107 AS OX is a self-contained, air-cooled gourmet ice maker that turns out up to 51kg of crystal-clear ice every 24 hours and holds up to 23kg in its integrated storage bin. Built for bars, cafés, and restaurants, it forms large gourmet cubes measuring 30mm in diameter by 34mm high and weighing 20g each — solid, slow-melting cubes that keep drinks cold and presentation sharp without watering down flavour. EcoX technology with R290 hydrocarbon refrigerant drives efficient energy use and a reduced global warming potential, while the PWD progressive water discharge system removes excess water through a pump capable of shifting it across a distance of up to 15 metres.

Hygiene is handled by the XSafe natural sanitation system working alongside Agion antimicrobial technology, together inhibiting microbial growth and odour development so every batch of ice is consistently pure and clear. A stainless steel exterior, an ergonomic disappearing-door bin access with a dampened closing mechanism, a front-serviceable removable and washable condenser filter, and straightforward electromechanical controls make this machine practical and hardwearing in demanding commercial settings. The compact, self-contained footprint installs easily under counters or in tight bar spaces without the need for a separate remote condenser.

Key Benefits

• Produces up to 51kg of gourmet ice per 24 hours, delivering a reliable, consistent supply suited to medium-volume bars, cafés, and restaurants.
• Large, solid, slow-melting cubes keep beverages cold for longer without rapid dilution, elevating cocktail and premium drink presentation.
• XSafe natural sanitation combined with Agion antimicrobial technology actively resists bacteria, mould, and odour development for persistently pure, hygienic ice.
• EcoX R290 hydrocarbon refrigerant achieves efficient energy consumption with a lower global warming potential, supporting more sustainable venue operations.
• The PWD progressive water discharge system routes excess water away via a pump with a reach of up to 15 metres, giving installation flexibility for drain positioning.
• The integrated 23kg storage bin features an ergonomically designed disappearing door with a dampened closing action, allowing smooth, easy ice retrieval during service.
• The front-access condenser air filter is fully removable and washable, simplifying routine maintenance without tools or repositioning the unit.
• A front-panel routine maintenance alarm indicator light alerts staff when servicing is due, reducing the risk of performance issues from overlooked upkeep.
• The self-contained, compact footprint allows straightforward under-counter or tight-space installation without requiring a separate remote condenser.

Key Features

• 51kg daily ice production capacity.
• 23kg integrated storage bin capacity.
• Gourmet ice cube size: 30mm diameter x 34mm high, 20g per cube — round, solid, and crystal-clear.
• Air-cooled, self-contained refrigeration system.
• EcoX technology using R290 hydrocarbon refrigerant gas for energy-efficient, eco-friendly operation.
• XSafe natural sanitation system for ongoing hygiene and odour control within the ice-making environment.
• Agion antimicrobial technology resists microbial growth and odour development to produce pure, clear, transparent ice.
• PWD progressive water discharge system: an integrated pump that transfers excess water across distances of up to 15 metres.
• Horizontal ice evaporator spray-system technology for consistent, clear cube formation.
• Simple, reliable electromechanical controls for straightforward day-to-day operation.
• Easy-access front-mounted ON/OFF switch.
• Routine maintenance visible alarm indicator light on the front panel.
• Ergonomically designed ice storage access door with disappearing-door mechanism and closing movement dampener.
• Front-access condenser air filter that is removable and washable.
• Durable stainless steel exterior finish.
• Integrated drain pump included.
• Includes removable air filter, ice scoop, water hose, and drain hose.
• Power supply: 230–240V, 50Hz, 580W, 10A cordset supplied.
• Compressor rated at 1300W; energy consumption 10.2kWh per 24 hours.
• Water consumption: 6 litres per hour.
• Maximum ambient operating temperature: 43°C.
• Refrigerant: R290.
• Dimensions: 531mm (W) x 600mm (D) x 930mm (H).
• Optional accessory: LVR073 adjus

Specifications

• Width (mm): 531
• Depth (mm): 600
• Height (mm): 930
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 6 liters per hour
• Shipping Weight: 56
• Packed Width (mm): 531.0
• Packed Height (mm): 939.0
• Packed Depth (mm): 600.0
• Shipping Cubic: 0.299165000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 10.2kW/hr
• Capacity (Litres): 200
• Ice Production: 200
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Gourmet (Large)
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
