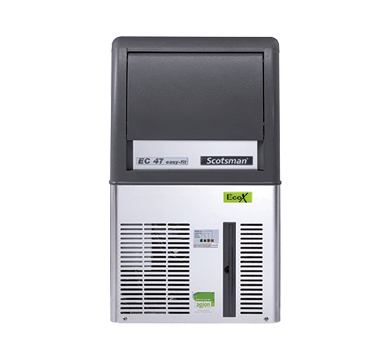

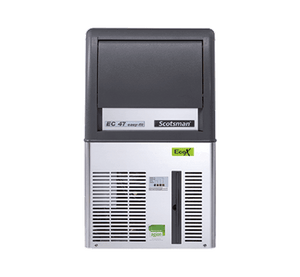

Scotsman ECM 47 AS OX Self-Contained Gourmet Ice Maker with EcoX R290 and XSafe Sanitation – 24kg/24hr

The Scotsman ECM 47 AS OX is an air-cooled, self-contained gourmet ice maker that turns out up to 24 kilograms of crystal-clear ice cubes every 24 hours, paired with a built-in 9kg storage bin so a service-ready supply is always within reach. Each cube is 30mm in diameter, 34mm high, and weighs 20 grams, forming a solid, slow-melting shape that suits cocktails, spirits, and premium beverages served in cafés, bars, restaurants, and boutique hotels.

Two core technologies set this unit apart: the EcoX system, which uses R290 hydrocarbon refrigerant for reduced global warming potential and outstanding energy efficiency, and the XSafe Natural Sanitation System, which continuously suppresses bacteria, mould, viruses, and odours without any chemical intervention. Horizontal ice evaporator spray-system technology, Agion antimicrobial treatment on ice-contact surfaces, and a Progressive Water Discharge pump rated to 15 metres all work together to deliver reliable ice quality and straightforward maintenance in demanding commercial settings.

Key Benefits

• Consistent output of up to 24kg of gourmet-grade, crystal-clear ice in every 24-hour cycle, sustaining supply through the busiest service periods.
• Integrated 9kg storage bin keeps ice immediately accessible without a separate bin purchase or extra floor space.
• XSafe Natural Sanitation System continuously works to neutralise bacteria, mould, and viruses in every batch, ensuring safe and hygienic ice at all times.
• R290 hydrocarbon refrigerant under the EcoX platform delivers a significantly lower global warming potential and superior energy efficiency compared with conventional refrigerants.
• Agion antimicrobial technology built into ice-contact surfaces actively resists microbe growth and odour development, supporting consistently pure and transparent cubes.
• Solid, slow-melting cube format preserves drink temperature for longer, limiting dilution and elevating the quality of premium serves.
• PWD Progressive Water Discharge pump handles excess water drainage over distances of up to 15 metres, giving venues flexibility in how they position the unit.
• Front-access, removable, washable condenser air filter and a front-panel maintenance alert light make routine upkeep quick and straightforward.
• A compact 386mm-wide footprint combined with quiet operation makes this machine well suited to front-of-house counters, back-bar positions, and small kitchen spaces alike.

Key Features

• 24kg daily ice production capacity with a 9kg integrated storage bin.
• Gourmet ice cube dimensions: 30mm diameter x 34mm high, 20g per cube.
• Air-cooled, self-contained design requiring no separate condensing unit.
• XSafe Natural Sanitation System providing automatic, chemical-free hygiene control.
• EcoX R290 hydrocarbon refrigerant for eco-friendly, energy-efficient operation.
• Agion antimicrobial technology incorporated into ice-contact surfaces to resist microbe growth and odour development.
• Horizontal ice evaporator spray-system technology for pure, clear, contaminant-free ice production.
• PWD Progressive Water Discharge integrated drain pump capable of pumping excess water up to 15 metres.
• Simple, reliable electromechanical controls for straightforward day-to-day operation.
• Front-panel routine maintenance alarm light that alerts operators when filter cleaning is required.
• External indicator lights displaying operational status at a glance.
• Ergonomically designed ice storage access featuring a disappearing door with a dampened closing mechanism.
• Front-access condenser air filter that is removable and washable.
• Durable stainless-steel exterior construction for longevity in commercial environments.
• Includes removable air filter, ice scoop, water hose, and drain hose.
• Optional leg kit available (part SC65067005, compatible with ECM 47 and ECM 57 models).
• Operates on 230-240V, 50Hz, single-phase supply with a 10A cordset.
• Maximum ambient operating temperature of 43°C.
• Water consumption of 3.2 litres per hour.
• Energy consumption of 8kWh per 24 hours.
• Water filter cartridge replacement recommended every 6 months; periodic de-scaling of the evaporator plate required to maintain ice shape and clarity.

Specifications

• Width (mm): 386
• Depth (mm): 600
• Height (mm): 645
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 3.2 liters per hour
• Shipping Weight: 44
• Packed Width (mm): 386.0
• Packed Height (mm): 645.0
• Packed Depth (mm): 600.0
• Shipping Cubic: 0.149382000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 8kW/hr
• Capacity (Litres): 200
• Ice Production: 200
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Gourmet (Large)
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
