Overview

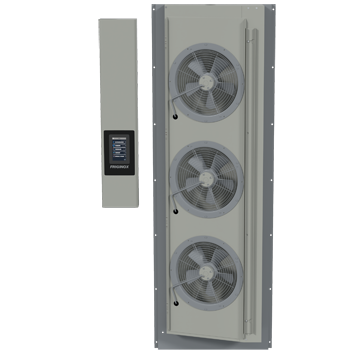

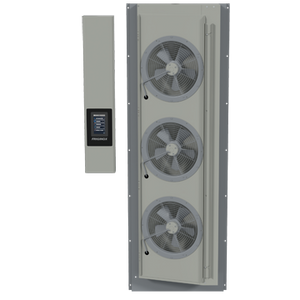

Friginox EF-A-MX1TS7-CF Blast Chiller and Freezer Refrigeration Package

The Friginox EF-A-MX1TS7-CF is a commercial refrigeration system engineered for blast chilling and blast freezing, purpose-built for incorporation into custom cold room constructions across restaurants, hotels, bakeries, hospitals, catering operations, and centralised production kitchens. It handles chilling loads up to 80 kg and freezing loads up to 40 kg, operating within a recommended trolley space of 760 mm W x 820 mm D x 1885 mm H, delivering the rapid temperature reduction necessary for HACCP compliance and consistent food safety outcomes.

Friginox supplies this unit as a complete refrigeration assembly comprising the control panel, electrical box, evaporator, piping, drip trays, solenoid valves, expansion valves, and air deflector, while all external insulated panels are to be constructed by the installing contractor on site. A remote condensing unit is compatible with this system but is not included in the supply and must be sourced separately, allowing flexible placement where the condensing unit needs to be positioned away from the cold room structure.

Key Benefits

• Rapidly lowers hot food temperatures to safe holding levels, minimising bacterial growth risk and supporting HACCP-compliant food safety programs.
• Self-Adaptive Intelligent Chilling technology automatically calibrates cooling intensity to the product being processed, preserving texture, moisture, flavour, and shelf life.
• Blast freezing capability extends preservation well beyond standard chilling, reducing food waste and providing greater flexibility for batch cooking operations.
• Specialist processing functions including ice cream hardening, ventilation drying, and raw fish sanitisation allow a wide variety of products to be handled within a single unit.
• Pre-chilling cycle functionality conditions the chamber prior to loading, maximising thermal efficiency and shortening overall cycle duration.
• Automatic hold mode engages at the conclusion of each cycle to keep products at safe temperatures until the operator is ready to remove or transfer them.
• Closed-door thawing and defrosting maintains temperature stability in the surrounding environment and simplifies workflow during high-volume service periods.
• The 7-inch ergonomic touchscreen featuring large keys and a favourites shortcut to the nine most recently used programs reduces operator training time and accelerates routine use.
• Modular contractor-installed construction enables the cold room to be tailored precisely to facility layouts and specific insulation requirements.

Key Features

• Blast Chiller/Freezer (CF) model offering the following operating modes: Soft Chill, Hard Chill, Soft Freeze, Hard Freeze, Self-Adaptive Intelligent Chilling, Probe mode, and Timer mode.
• Chilling capacity of up to 80 kg and freezing capacity of up to 40 kg per cycle; actual capacity may vary depending on the thermal conductivity of the food, product thickness, and container type used.
• Recommended usable trolley space: 760 mm W x 820 mm D x 1885 mm H.
• 7-inch ergonomic touchscreen control panel with large keys for intuitive operation.
• 40 programmable cycles supported, with a dedicated favourites key offering one-touch access to the nine most recently used programs.
• New specialist functions: ice cream hardening, ventilation drying, raw fish sanitisation, and multiple timers with fully customisable phases.
• Multi-point core temperature probe for precise internal product temperature monitoring throughout each cycle.
• Pre-chilling cycle key to bring the chamber to optimal temperature before product loading.
• Automatic hold mode activates upon completion of each cycle.
• Manual defrost with automatic control of defrost duration.
• Thawing and defrosting capability operable with the door closed.
• Supplied refrigeration components: control panel, electrical box, evaporator, air deflector, expansion valves, solenoid valves, drip trays, and internal piping.
• Pre-wired electrical box with connection terminal for simplified on-site installation.

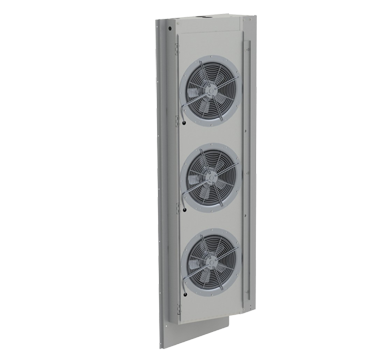

• Evaporator designed for vertical wall mounting on isothermal panels with injected polyurethane foam; alternative fittings for other panel types are available on request.
• Compatible with a remote condensing unit; condensing unit is not included and must be sourced separately.
• All external insulated panels to be supplied and installed by the contractor.
• On-site assembly required.

Specifications

• Width (mm): 760
• Depth (mm): 820
• Height (mm): 1885
• Weight (kg): 381.0
