Overview

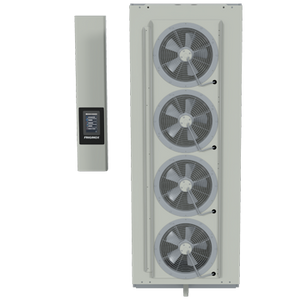

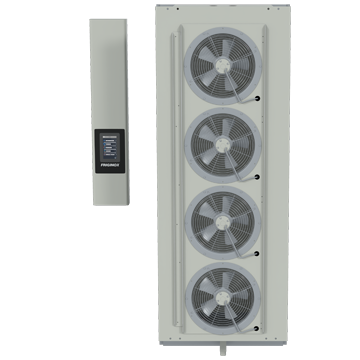

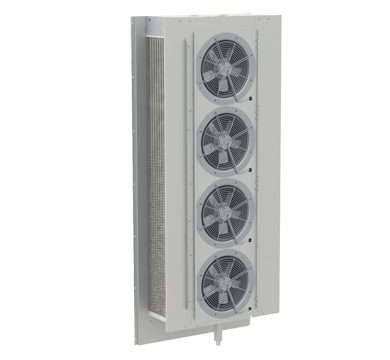

Friginox EF-B-MX2TS7-C Blast Chilling Refrigeration Assembly for Cold Room Integration

The Friginox EF-B-MX2TS7-C is a high-capacity blast chilling system built for integration into purpose-built cold rooms and production kitchen environments. Rated to a 160 kg load capacity with a recommended usable trolley space of 900 mm W x 1020 mm D x 1885 mm H, it is well suited to commissary kitchens, healthcare facilities, hotel kitchens, catering operations, and large hospitality businesses requiring dependable, high-throughput chilling performance. The unit is supplied as a remote condensing unit configuration, with assembly required on site.

The Friginox refrigeration assembly delivered with this unit comprises the control panel, electrical box, evaporator, air deflector, pressure-regulating and flow-control valves including expansion and solenoid types, drip trays, and interconnecting pipework. All external insulated panelling is to be contractor-supplied, giving installation teams full flexibility over cold room construction, while the factory pre-wired electrical box with connection terminal simplifies the commissioning process.

Key Benefits

• Rapidly reduces food temperatures to safe levels, supporting HACCP compliance and limiting bacterial proliferation during batch cooking and high-volume production cycles.
• Self-Adaptive Intelligent Chilling technology automatically calibrates cooling output to suit each specific product, preserving texture, moisture, flavour, and shelf life while cutting food waste.
• A 7-inch ergonomic touchscreen featuring large keys and a favourites shortcut that recalls the last 9 programs used simplifies daily operation and shortens staff training requirements.
• Forty stored program cycles plus specialist functions covering gelato and ice cream hardening, ventilation-based drying, raw fish sanitisation, and multiple programmable timers with fully customisable phases deliver versatility across a wide range of production requirements.
• Multi-point core temperature probe technology provides precise, product-centred chilling control via Probe mode, eliminating guesswork and delivering consistent outcomes regardless of load variation.
• Automatic hold mode activates at the conclusion of every cycle, maintaining safe food temperature until the product is collected and reducing the need for constant operator oversight.
• Thawing and defrost cycles can be carried out without opening the door, protecting food quality and preserving cold room hygiene throughout these processes.
• Remote condensing unit compatibility combined with contractor-fitted external panelling allows flexible installation across a broad range of commercial refrigeration project configurations.
• Optional accessories including a USB connectivity module, a printer and data transfer board, supplementary temperature probes, and a door-position detection sensor via optical fibre cable allow the system to be configured to meet specific operational and food safety documentation requirements.

Key Features

• 160 kg blast chilling load capacity (note: actual capacity may vary depending on thermal conductivity, product thickness, and container type used)
• Recommended usable trolley space: 900 mm W x 1020 mm D x 1885 mm H
• Blast Chiller (C) model operating modes: Soft Chill, Hard Chill, Self-Adaptive Intelligent Chilling, Probe mode, Timer mode
• Blast Chiller/Freezer (CF) model operating modes: Soft Chill, Hard Chill, Soft Freeze, Hard Freeze, Self-Adaptive Intelligent Chilling, Probe mode, Timer mode
• 7-inch ergonomic touchscreen control panel with large keys for intuitive operation
• 40 programmable cycles with a favourites key providing shortcuts to the last 9 programs used
• Specialist functions: gelato and ice cream hardening, ventilation drying, raw fish sanitisation, multiple timers with customisable phases
• Pre-chilling cycle function to maximise unit efficiency prior to loading
• Automatic hold mode engages at the conclusion of each chilling cycle
• Multi-point core temperature probe for precise product-centred temperature monitoring
• Manual defrost with automatic time control
• Thawing and defrosting capability operable with the door closed
• Friginox refrigeration assembly includes: control panel, electrical box, evaporator, air deflector, expansion valves, solenoid valves, drip trays, and interconnecting pipework
• All external insulated panels to be contractor-supplied and fitted on site
• Factory pre-wired electrical box with connection terminal for simplified commissioning
• Remote condensing unit configuration
• Optional accessories (must be nominated at the time of order): USB connectivity module; printer and data transfer board (part FX39271517); up to three additional temperature probes; door-position detection sensor via optical fibre (part FX39271518)

Specifications

• Width (mm): 900
• Depth (mm): 1020
• Height (mm): 1885
• Weight (kg): 562.0
