Overview

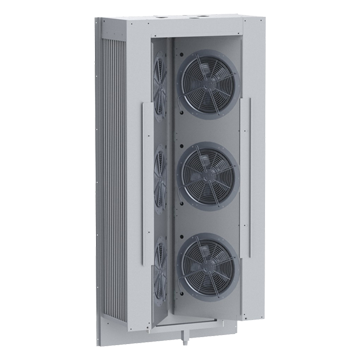

Friginox EF-C-MX3TS7-CF Blast Chiller and Blast Freezer Refrigeration System

The Friginox EF-C-MX3TS7-CF is a high-capacity refrigeration system engineered for integration into custom cold rooms across production kitchens, food manufacturing facilities, hotel operations, health care catering, large-scale hospitality venues, and industrial bakeries. Built to handle demanding high-volume food production, the unit delivers a chilling throughput of 240 kg and a freezing throughput of 110 kg, supporting rapid temperature reduction, HACCP compliance, and consistent product quality across every batch.

Supplied as a modular refrigeration package, the system includes the control panel, electrical box, evaporator, air deflector, expansion valves, solenoid valves, drip trays, and interconnecting piping. All external insulated panels are to be constructed and supplied by the installing contractor, and a remote condensing unit is required but not included, offering flexible placement options for commercial refrigeration fit-outs. The evaporator is designed for mounting onto vertical isothermal panels with injected polyurethane foam construction, with full assembly completed on site.

Key Benefits

• Rapidly reduces the temperature of large batches of hot food, minimising time spent in the danger zone and supporting HACCP food safety compliance.
• Preserves texture, moisture, colour, and nutritional quality by using controlled chilling and freezing cycles rather than slow ambient cooling.
• Self-Adaptive Intelligent Chilling technology automatically adjusts the cycle to the thermal load, reducing guesswork and improving consistency across varying batch sizes.
• Specialist functions including ice cream hardening, raw fish sanitisation, and ventilation drying expand operational capability beyond standard blast chilling and freezing.
• Multi-point core temperature probe and probe-controlled operation ensure each product reaches the target internal temperature safely, regardless of thickness or container type.
• Thawing and defrosting with the door closed maintains hygiene and temperature stability throughout the process, reducing cross-contamination risk.
• Pre-chilling cycle functionality maximises equipment efficiency before loading, ensuring the cabinet is at optimal temperature when product enters.
• Automatic hold mode activates after each cycle to maintain product at the target temperature until the operator is ready to remove or transfer it.
• Modular design with contractor-supplied external panels gives complete flexibility for custom cold room dimensions and construction methods to suit individual site requirements.

Key Features

• Chilling throughput rated at 240 kg; freezing throughput rated at 110 kg. Note: load capacities vary depending on the thermal conductivity, thickness, and container type of the product being processed.
• Recommended usable trolley space: W 900 mm x D 1120 mm x H 1885 mm.
• CF model operating modes include Soft Chill, Hard Chill, Soft Freeze, Hard Freeze, Self-Adaptive Intelligent Chilling, Probe mode, and Timer mode.
• 40 fully programmable chilling and freezing cycles with a favourites key providing shortcuts to the last 9 programs used.
• Specialist functions: ice cream hardening, ventilation drying, raw fish sanitisation, and multiple timers with fully customisable phases.
• 7-inch ergonomic touchscreen control panel with large keys for ease of use in busy kitchen environments.
• Multi-point core temperature probe for accurate internal product temperature monitoring throughout the cycle.
• Pre-chilling cycle key to bring the unit to optimal operating temperature before product loading.
• Automatic hold mode activates at the end of each cycle to maintain target temperature until the operator intervenes.
• Thawing and defrosting functions operable with the door closed.
• Manual defrosting with automatic control of defrost time.
• Refrigeration system package comprises the control panel, electrical box, evaporator, air deflector, expansion valves, solenoid valves, drip trays, and interconnecting piping.
• All external insulated panels to be constructed and supplied by the installing contractor.
• Remote condensing unit required but not included, allowing flexible siting within the facility.
• Evaporator designed for mounting onto vertical isothermal panels with injected polyurethane foam construction.
• Optional accessories must be nominated at the time of order; available options include USB connection and printer.

Specifications

• Width (mm): 900
• Depth (mm): 1120
• Height (mm): 1885
• Weight (kg): 617.0
