Friginox EF-D-MX4TS7-C Large-Capacity Blast Chilling System for Cold Room Integration

The Friginox MX4TS7-C is a high-capacity blast chilling refrigeration system built for integration into purpose-built cold rooms across production kitchens, hotels, bakeries, hospitals, and large-scale catering operations. Rated at 320 kg load capacity and sized to accommodate a recommended usable trolley space of 900 mm (W) x 1440 mm (D) x 1885 mm (H), it is engineered to meet the rigorous demands of centralised food production and commissary environments where rapid, consistent chilling underpins both food safety and product quality.

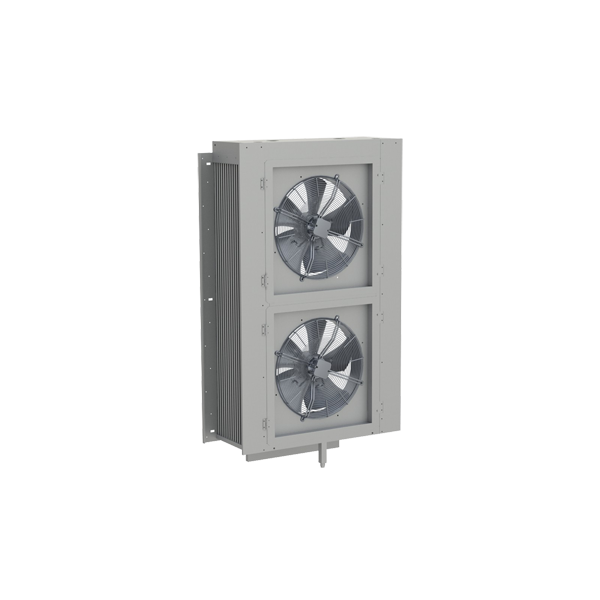

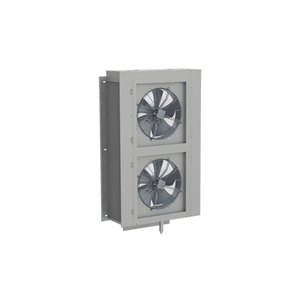

Supplied as a modular refrigeration package, the system delivers the core components — the touchscreen control panel, pre-wired electrical enclosure, evaporator unit, and air deflector — while all external insulated panels are sourced and installed by the site contractor. The unit is designed to operate with a remote condensing unit (not included), offering flexibility in plant room configuration and service routing. The evaporator is fixed vertically to isothermal panels using injected polyurethane foam, with fitment options for alternative panel types available on request. Assembly on site is required.

Key Benefits

• Rapidly reduces the core temperature of large food batches to safe levels, directly supporting HACCP compliance and lowering food safety risk in high-output production settings.
• Self-Adaptive Intelligent Chilling technology continuously adjusts the cooling process to match the specific food product being chilled, preserving texture, moisture retention, and shelf life without any manual input from the operator.
• The 7-inch ergonomic touchscreen with large, clearly labelled keys simplifies programming in fast-paced kitchen environments, reducing the likelihood of operator error during busy periods.
• A library of 40 programmable chilling cycles, combined with a favourites shortcut key giving instant access to the nine most recently used programs, streamlines repetitive workflow and saves time during peak service.
• Dedicated functions for ice cream hardening, ventilation drying, raw fish sanitisation, and multi-stage timers with user-defined phases broaden the system's application across a wide range of food production tasks.
• Automatic hold mode engages at the conclusion of each cycle, keeping product at a safe holding temperature without requiring immediate operator attention and providing greater flexibility for kitchen teams.
• Thawing and defrost operations can be carried out with the door closed, minimising temperature fluctuation inside the cell and supporting a hygienic working environment.
• The pre-wired electrical enclosure fitted with a connection terminal reduces on-site commissioning effort and simplifies the installation process for contractors.
• Modular construction with contractor-supplied external insulated panels allows the cold room footprint and configuration to be tailored precisely to the available space and operational requirements of each individual site.

Key Features

• 320 kg blast chill load capacity (actual capacity may vary depending on thermal conductivity, product thickness, and container type)
• Recommended usable trolley space: 900 mm (W) x 1440 mm (D) x 1885 mm (H)
• Blast chill only (C) model offering three chilling modes: Soft Chill, Hard Chill, and Self-Adaptive Intelligent Chilling; selectable operation in either Probe or Timer mode
• 7-inch ergonomic touchscreen control panel with large keys for straightforward operation
• 40 programmable chilling cycles with a favourites key providing one-touch access to the nine most recently used programs
• Specialist functions including ice cream hardening, ventilation drying, multi-stage timers with individually configurable phases, and raw fish sanitisation
• Multi-point core temperature probe for accurate monitoring of food centre temperature
• Pre-chilling cycle key to optimise cell temperature before product is loaded
• Automatic hold mode activates at the end of each cycle to maintain product at a safe temperature
• Manual defrost with automatic time control
• Thawing and defrosting operable with the door closed
• Modular refrigeration package comprising the touchscreen control panel, pre-wired electrical enclosure, evaporator unit, and air deflector; all external insulated panels are supplied and installed by the site contractor
• Configured for remote condensing unit installation; remote condensing unit is not included in supply
• Pre-wired electrical enclosure with connection terminal for simplified on-site installation
• Evaporator mounted vertically to isothermal panels using injected polyurethane foam; fitment solutions for other panel types available on request
• Assembly required on site

Specifications

• Width (mm): 900
• Depth (mm): 1440
• Height (mm): 1885
• Weight (kg): 793.0
