Overview

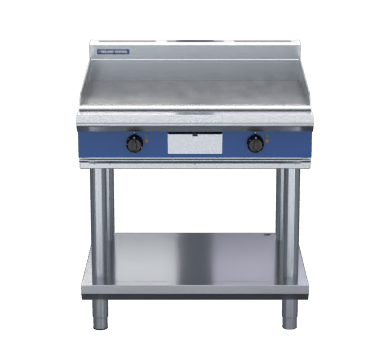

Blue Seal EP516-LS Evolution Series 900mm Electric Griddle on Leg Stand

The Blue Seal EP516-LS is a heavy-duty 900mm electric griddle mounted on a dedicated leg stand, forming part of the fully modular Evolution Series range. Manufactured in New Zealand from 304 stainless steel, it features a solid 20mm thick mild steel cooking plate with top weld sealed construction for maximum heat retention and even heat distribution across the 900 x 480mm cooking surface, with precise thermostatically controlled temperatures ranging from 90 to 300°C. Powered by 12kW heating elements on a 400-415V three-phase supply, the EP516-LS is engineered for high-volume commercial kitchens handling breakfasts, burgers, seafood and more.

The leg stand is built from 63mm diameter heavy-duty 304 stainless steel tube at 1.2mm wall thickness, configured with a pair of adjustable feet positioned at the front and a pair of rollers at the rear to allow easy repositioning while maintaining stability. A suite-matching undershelf and a 165mm splashback are included as standard, and the framed top design allows direct connection to adjacent Evolution Series units, making the EP516-LS a practical freestanding solution that integrates seamlessly across 450mm, 600mm, 900mm and 1200mm suite configurations.

Key Benefits

• The 20mm thick mild steel cooking plate retains and distributes heat evenly across the full surface, reducing hot spots and improving cooking consistency.
• Thermostatically controlled temperatures from 90 to 300°C allow accurate adjustment to suit different ingredients and cooking styles.
• Top weld sealed plate construction prevents food debris and grease from penetrating joints, simplifying cleaning and extending plate life.
• A stainless steel grease drawer collects drippings for quick, hygienic disposal and fast turnaround between service periods.
• The rear roller and front adjustable-foot configuration makes repositioning the unit straightforward while keeping it stable on uneven floors.
• Fully modular design with a framed top allows direct connection to adjacent Evolution Series griddle units for a matched suite finish.
• Optional ribbed mild steel or chrome mirror plate surfaces provide versatility for different menu items, with the mirror chrome option minimising heat loss by trapping more heat at the cooking surface.
• Heavy-duty reinforced control knobs withstand the demands of continuous commercial use and remain easy to operate in high-pressure service environments.

Key Features

• 900 x 480mm smooth mild steel cooking surface, 20mm thick for superior heat retention and distribution
• Top weld sealed plate construction prevents grease and debris ingress at joints
• Single temperature control zone with thermostat, adjustable from 90 to 300°C
• 12kW heating elements; 400-415Vac, 3P+N+E, 50/60Hz, 17A
• Heavy-duty reinforced control knobs for reliable, high-frequency use
• Stainless steel grease drawer for efficient fat collection and easy cleaning
• 165mm splashback included as standard
• Leg stand constructed from 63mm diameter 304 stainless steel tube at 1.2mm wall thickness, with front feet that are individually adjustable for levelling and rear rollers for mobility
• Fully modular framed stand with suite-matching undershelf in 0.9mm 304 stainless steel finish
• Framed top designed for connection to adjacent Evolution Series griddle units
• Optional ribbed machine-finished mild steel plate or chrome mirror plate (smooth or ribbed) available
• Freestanding installation; overall height including splashback 1085mm
• 304 stainless steel construction throughout
• Manufactured in New Zealand
• Part of the fully modular Blue Seal Evolution Series, compatible with 450mm, 600mm, 900mm and 1200mm suite configurations

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 223
• Packed Width (mm): 994.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.085299000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 6
• Power Rating: 12kW 400-415Vac|3P+N+E; Phase loading|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
