Overview

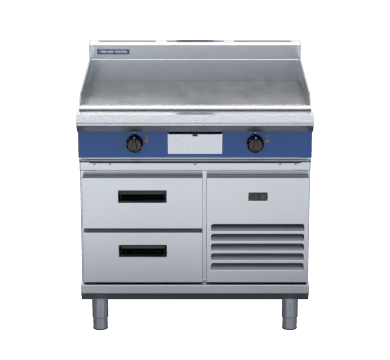

Blue Seal EP516-RB Evolution Series 900mm Electric Griddle with Refrigerated Base

The Blue Seal EP516-RB Evolution Series combines a high-performance 900mm electric griddle with an integrated refrigerated base, delivering a compact, self-contained cooking solution purpose-built for busy commercial kitchens. The 12kW griddle features a 20mm thick smooth mild steel plate for exceptional heat retention and even distribution, while the refrigerated base maintains ingredients at a safe -2°C to +8°C with a tropical climate rating, keeping produce close at hand throughout a demanding service.

Constructed from 304 stainless steel inside and out, the EP516-RB is engineered for durability and hygiene. The suite-matched modular design allows it to integrate seamlessly with other Evolution Series equipment, and the ventilated R134a refrigeration system requires no condensate drain, simplifying installation. Optional ribbed or chrome mirror plate surfaces extend the griddle's versatility, making this unit an efficient all-in-one workstation for high-volume griddle cooking.

Key Benefits

• Integrated refrigerated base keeps prepped ingredients within arm's reach, reducing travel time during service and improving food safety.
• The 20mm thick griddle plate delivers superior heat retention and even distribution, ensuring consistent cooking results across the full 900 x 480mm cooking surface.
• Tropical climate-rated refrigeration (-2°C to +8°C) maintains safe holding temperatures even in hot, demanding kitchen environments.
• No condensate drain required simplifies installation and reduces ongoing maintenance requirements.
• Self-contained, suite-matched modular design integrates cleanly with other Evolution Series equipment for a professional, cohesive kitchen layout.
• Top weld-sealed plates and a stainless steel grease drawer make cleaning fast and thorough, reducing downtime between services.
• Heavy-duty European telescopic drawer guides and reinforced control knobs stand up to the rigours of continuous commercial use.
• Optional ribbed or chrome mirror plate surface allows operators to adapt the griddle to different menu requirements without investing in additional equipment.

Key Features

• 900 x 480mm smooth mild steel griddle cooking surface with 20mm thick plate for maximum heat retention and distribution.
• 12kW heating elements with single temperature control zone; thermostatically controlled across a 90–300°C range.
• Top weld-sealed plate construction for structural integrity and easy cleaning.
• Refrigerated base operating at -2°C to +8°C; ventilated system using R134a refrigerant; tropical climate rated.
• Two GN 1/1 drawers with 100mm deep pan capacity, fitted with heavy-duty European telescopic drawer guides.
• Self-contained refrigeration unit with no condensate drain required.
• Anti-corrosion treated evaporator for long-term reliability.
• 304 stainless steel exterior and interior construction throughout.
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet and 2 additional rollers for mobility and levelling.
• 165mm splashback included; overall height with splashback 1085mm.
• Stainless steel grease drawer for simple, hygienic grease collection.
• Heavy-duty reinforced control knobs designed for frequent commercial use.
• Suite-matched modular base for seamless integration with Evolution Series equipment.
• Freestanding, free-standing installation; country of origin New Zealand.
• Electrical supply: 12kW, 400–415V AC, 3P+N+E, 50/60Hz; 17A with 3-pin 10A plug cordset fitted.
• Optional ribbed or chrome mirror plate available (mirror chrome surface traps additional heat on the cooking surface).
• 12-month warranty (supplier specification); some sources indicate 2 years parts and labour.

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 223
• Packed Width (mm): 994.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.085299000m3
• Material: 304 Stainless Steel
• Undershelf: Refrigerated Base
• Door Type: Drawer
• Splash Back: Yes (165mm)
• No. of Doors: 2
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Ventilated | R134a
• Cooling Type: Ventilated | Tropical Rated
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Display Type: Digital Electronic
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 6
• Power Rating: 12kW 400-415Vac|3P+N+E; Phase loading|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
