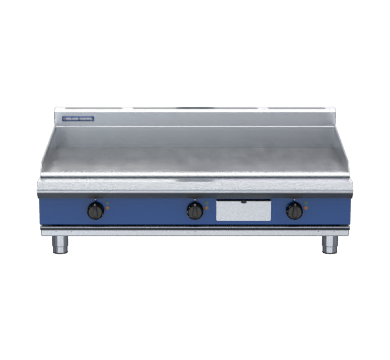

Blue Seal EP518-B Evolution Series 1200mm Electric Griddle – Bench Model

The Blue Seal EP518-B is a 1200mm bench model electric griddle from the Evolution Series, designed for high-volume commercial kitchens requiring consistent, reliable cooking performance. Built in New Zealand from 304 stainless steel, it features a 20mm thick mild steel griddle plate with solid, seamless weld construction that delivers superior heat retention and uniform heat distribution across its 1200 x 480mm cooking surface.

Powered by 16.2kW heating elements operating on a three-phase supply (400–415Vac, 3P+N+E), the EP518-B offers thermostatically controlled temperature adjustment from 90°C to 300°C, making it equally suited to delicate breakfast items and high-heat searing. The smooth mild steel plate is the standard configuration, with optional ribbed or chrome mirror plate finishes available to suit different menus and cooking styles.

Key Benefits

• The 20mm thick griddle plate retains and distributes heat evenly, reducing hot spots and delivering consistent cook results across the full 1200mm surface during busy service periods.
• Thermostatically controlled temperature range of 90–300°C allows precise adjustment for a wide variety of foods, from eggs and pancakes to burgers and steaks.
• Top weld sealed plates prevent grease and food debris from penetrating joints, making the cooking surface faster and easier to clean between service periods.
• The stainless steel grease drawer captures run-off efficiently and slides out for quick emptying and cleaning, supporting rapid kitchen turnaround.
• Heavy-duty reinforced control knobs withstand the rigours of a busy commercial environment, reducing the likelihood of operational downtime from control failures.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned within the kitchen as required.
• Optional ribbed plate or chrome mirror plate configurations offer flexibility to match the griddle to specific menu requirements, with the chrome mirror finish also helping to trap heat and reduce energy loss.
• A 165mm splashback is included as standard, protecting walls and adjacent equipment from grease splatter during cooking.
• Bench model design suits kitchens with existing counter or equipment stands, providing a compact footprint without sacrificing the full 1200mm cooking width.

Key Features

• 1200mm wide bench model electric griddle in the Blue Seal Evolution Series
• 20mm thick smooth mild steel griddle plate for maximum heat retention and distribution
• Cooking surface area: 1200 x 480mm
• 16.2kW total heating element output
• Single temperature control zone with thermostat
• Temperature range: 90–300°C
• Electrical supply: 16.2kW, 400–415Vac, 50/60Hz, 3P+N+E, 25A
• Top weld sealed plate construction for a seamless, hygienic cooking surface
• Stainless steel grease drawer for efficient fat collection and easy removal
• Heavy-duty reinforced control knobs for durability in demanding service environments
• Adjustable feet plus two additional rollers for levelling and repositioning
• 165mm splashback included as standard
• Four 63mm diameter heavy-duty 304 stainless steel bench legs with adjustable feet; adjustable height range 80–105mm
• 304 stainless steel body construction
• Optional ribbed machine-finished mild steel plate available
• Optional chrome mirror plate available in smooth or ribbed finish, minimising heat loss by trapping heat on the cooking surface
• Freestanding, freestanding installation type
• Country of origin: New Zealand
• Designed for straightforward cleaning, installation and servicing

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 192
• Packed Width (mm): 1245.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.720295000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 1200 x 480
• Number of Burners: 8
• Power Rating: 16.2kW|3P+N+E; Phase loading|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
