Overview

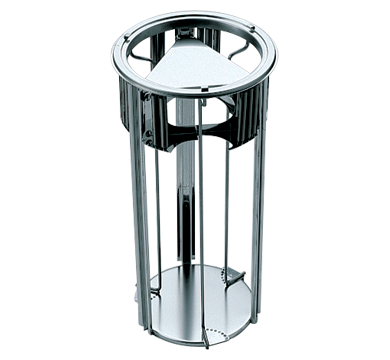

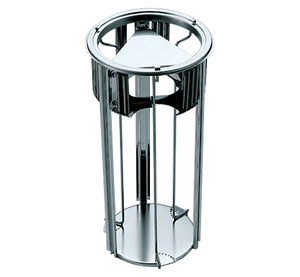

Rieber ERRV-190-320-640 75kg Built-In Tubular Dispenser - No Heating

The Rieber ERRV-190-320-640 is a single-tube, built-in tubular plate dispenser designed for high-volume commercial kitchens and professional food service operations. With a 75kg load capacity and an installation depth of 640mm, it integrates neatly into counters or servery lines to keep stacked crockery accessible and at a consistent dispensing height without requiring any heating element.

Accommodating plates ranging from 190mm to 320mm in diameter and supporting a stacking height of 495mm, this dispenser suits a wide variety of standard commercial crockery. Adjustable fixing rods and spring-loaded height adjustment ensure smooth, reliable plate dispensing throughout service, while the anti-tilt platform safeguard protects both the crockery and staff during busy periods.

Key Benefits

• Handles up to 75kg of stacked crockery, reducing the frequency of restocking during peak service.
• Spring-assisted dispensing height adjustment keeps the top plate at a consistent, ergonomic level as the stack depletes, minimising strain on staff.
• Adjustable fixing rods accommodate plate diameters from 190mm to 320mm, providing flexibility across different crockery sets.
• Anti-tilt platform safeguard prevents the plate stack from toppling, reducing the risk of breakage and workplace injury.
• Built-in tubular design integrates flush into countertops or servery units, making efficient use of limited kitchen space.
• No heating element simplifies installation, reduces energy consumption and lowers maintenance requirements.
• 495mm stacking height maximises crockery capacity within the unit for uninterrupted service.

Key Features

• Single-tube built-in tubular dispenser configuration
• 75kg load capacity
• No heating function
• Compatible crockery diameter range: 190mm to 320mm
• 495mm maximum stacking height
• 640mm installation depth
• Unit dimensions: 372mm (W) x 372mm (D) x 640mm (H)
• Adjustable fixing rods to suit varying plate diameters
• Platform safe-guarded against tilting
• Dispensing height adjustable via springs

Specifications

• Weight (kg): 340.0
