Overview

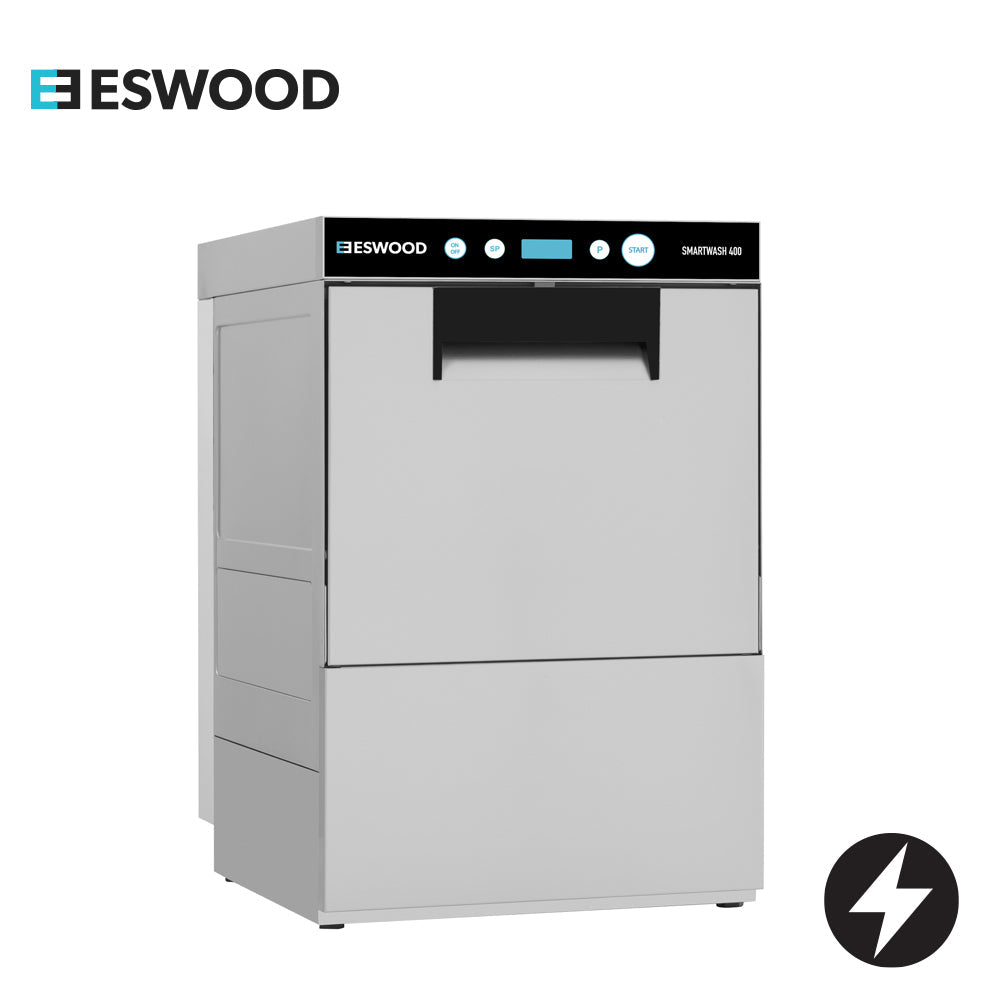

Eswood SW400 Smartwash Undercounter Front-Load Glasswasher / Dishwasher

The Eswood SW400 Smartwash is a compact undercounter front-load glasswasher and warewasher purpose-built for bars, pubs, clubs and cafes where throughput, hygiene and limited bench space are everyday realities. Accepting a standard 400 x 400 mm rack and capable of washing up to 1,200 glasses per hour, it delivers professional cleaning performance in a footprint that suits both back-of-house and bar-side installation. A double-skinned insulated door keeps heat and noise to a minimum, while quality European construction built to Eswood specifications ensures long-term reliability in demanding commercial environments.

Operation is straightforward thanks to a one-touch advanced electronic soft-pad control panel with digital wash and rinse temperature displays, making HACCP temperature recording simple and accurate. Four wash cycles ranging from 90 to 150 seconds plus a special operator-selected time-variable cycle handle varying levels of soiling, and a Thermostop function guarantees the set rinse temperature is always reached. With water consumption of just 1.9 litres per cycle and a recirculating wash system that reduces both water and energy use, the SW400 is one of the most economical and eco-conscious glasswashers available in Australia.

Key Benefits

• Washes up to 1,200 glasses per hour, keeping bar and cafe service moving during peak periods
• Uses only 1.9 litres of water per cycle with no cold rinse, significantly reducing water and energy running costs
• Double-skinned insulated door drastically cuts heat and sound emissions, making it suitable for open bar-side placement
• One-touch control with digital temperature displays simplifies daily operation and makes HACCP temperature logging fast and compliant
• Thermostop function ensures the set rinse temperature is always achieved, guaranteeing hygienic, streak-free glassware every cycle
• Self-diagnostic system pinpoints faults quickly, minimising downtime and reducing the overall cost of ownership
• Simple, quick installation with no commissioning required, supplied complete with power cord, water hose, drain hose and consumable pumps ready to go
• Easily removable spray arms, filters and pressed wash tank make routine cleaning fast and straightforward
• Compartmented racks available separately to accommodate tall stemware, adding flexibility for cocktail bars and fine-dining venues

Key Features

• Accepts 400 x 400 mm racks; also compatible with 430 x 360 mm and 390 x 390 mm racks
• Supplied with a 430 x 360 mm glass rack as standard
• Four wash cycles: 90, 120 and 150 seconds, plus a special time-variable cycle (operator-selectable, up to 12 minutes)
• Advanced electronic soft-pad one-touch control panel with digital wash and rinse temperature displays
• HACCP approval (PE-388-GE-09) and WaterMark approval (WMKT25317)
• Thermostop function to confirm set rinse temperature is reached before cycle completion
• Self-diagnostic system for accurate fault finding and reduced ownership costs
• Self-cleaning cycle for simple routine maintenance
• Easily removable hydrodynamic parallel wash and rinse arms for cleaning and inspection
• Easily removable filters and pressed wash tank
• Double-skinned door construction to reduce heat and sound emissions
• Built-in detergent pump, rinse aid pump and drain pump all fitted as standard
• Recirculating wash system reduces water and energy consumption without compromising cleaning results
• Water consumption of approximately 1.9 litres per cycle; no cold rinse
• Door entry clearance of 320 mm
• Requires hot water supply at 65°C, 2 to 4 bar (28 to 58 psi)
• Single-phase 240 V / 50 Hz electrical connection; 15 A supply
• Rating of 3.6 kW
• Four adjustable 150 mm legs included for optional use
• Stainless steel cabinet construction
• Supplied with power cord, water hose, drain hose, and detergent, rinse aid and drain pumps ready for installation
• No commissioning required; quick and simple to install
• Quality European manufacture built to Eswood specifications
• Compartmented racks available separately to suit tall stem glasses

Specifications

• Width (mm): 436
• Depth (mm): 535
• Height (mm): 670
• Weight (kg): 32
• Colour: Stainless Steel
• Gas Connection: N/A (Electric)
• Water Consumption: 1.9L Per Cycle
• Shipping Weight: 40
• Packed Width (mm): 640.0
• Packed Height (mm): 890.0
• Packed Depth (mm): 730.0
• Shipping Cubic: 0.415808000m3
• Capacity (Litres): 30 light meals or 1200 glasses/hr
• Power / Gas Input: 3.6 kW
• Power Supply: 230V 1ph
• Power Rating: 2.8kW|240V/50Hz/1 Phase

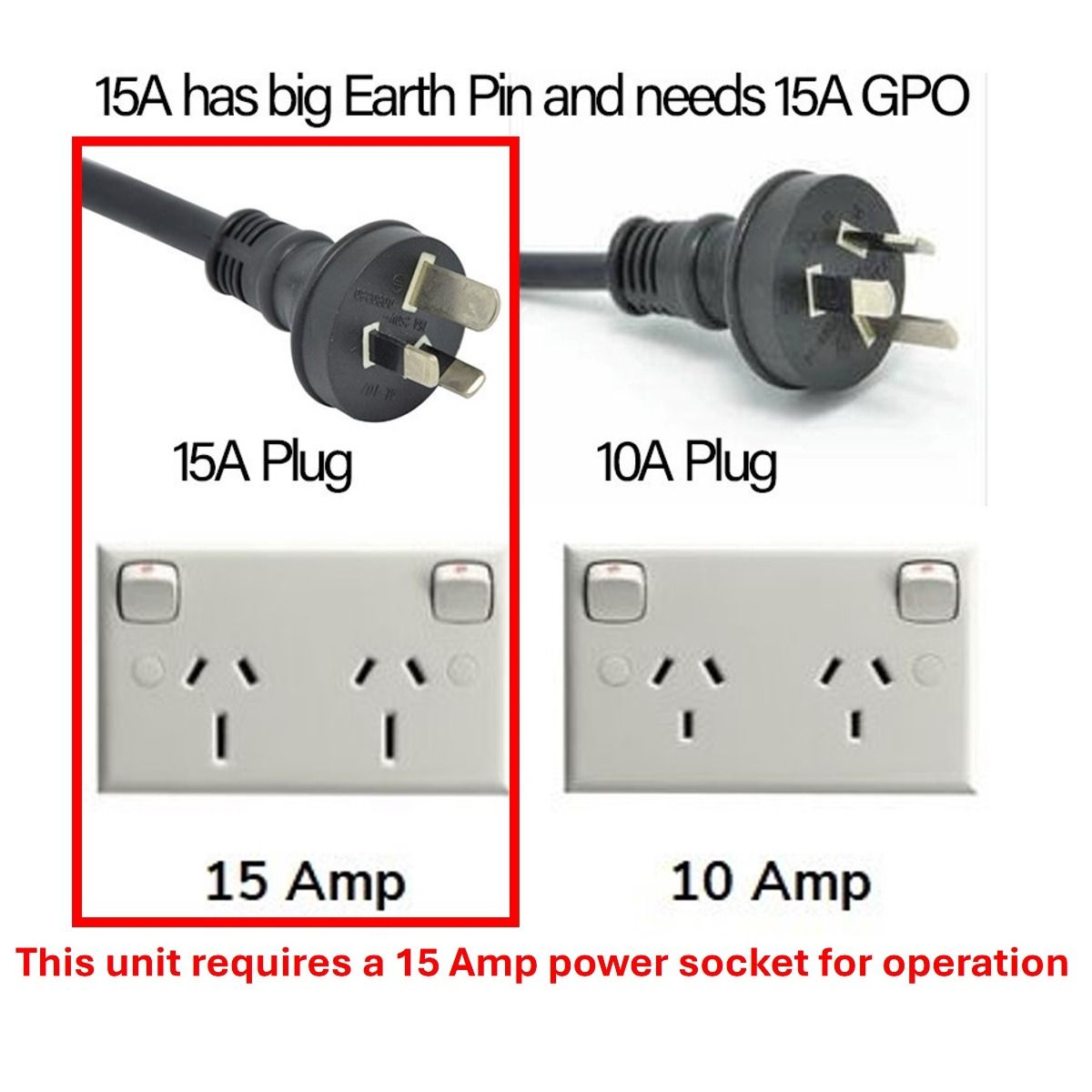

• Voltage/Phase: 240V 50Hz Single Phase 15A
• Country of Origin: Australia (Made)
• Warranty (months): 24
• Material: Stainless Steel
• Installation Type: Electric
• Control Type: Digital
• Fuel Type: Electric
