Overview

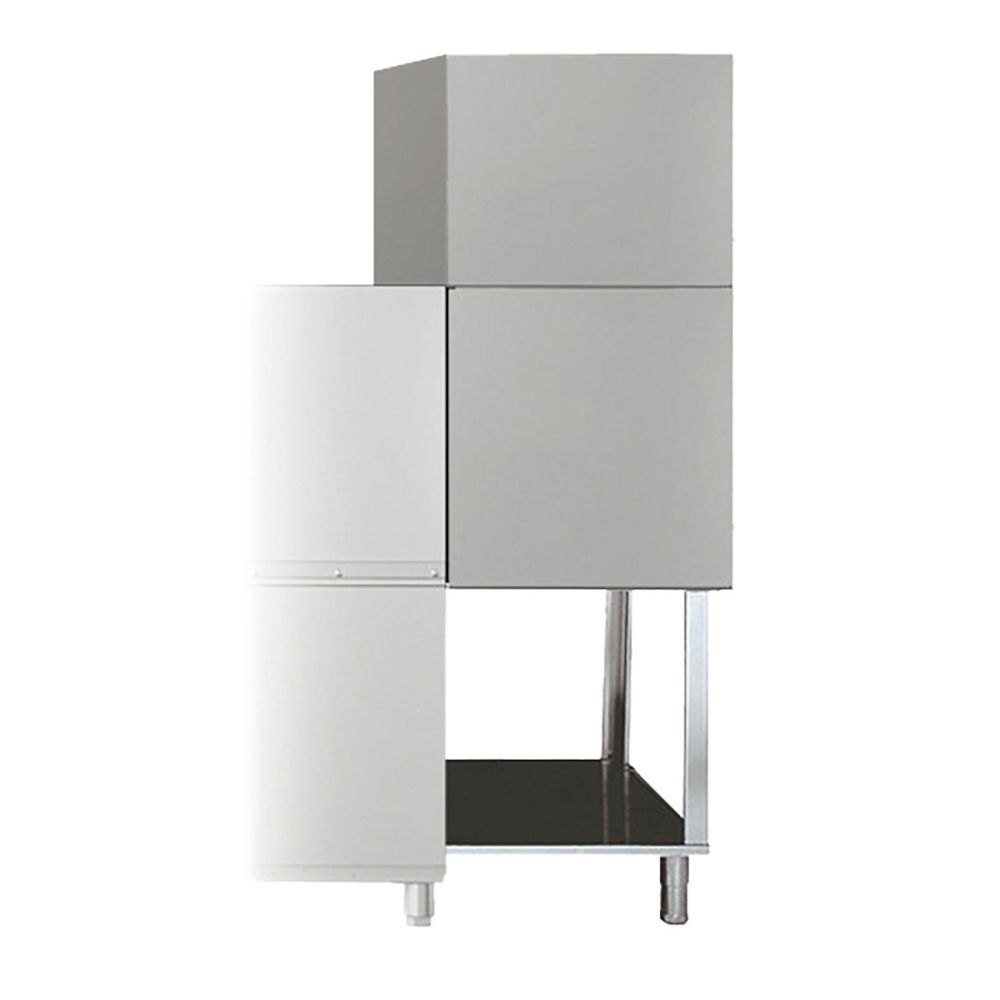

Fagor TS8-COO Drying Tunnel TS for Compact Conveyor Dishwasher

The Fagor TS8-COO is a purpose-built drying tunnel designed specifically for use with Fagor Rack Conveyor Dishwasher modular models in the CCO-320 range. It integrates seamlessly as a supplementary module within the compact conveyor dishwasher system, making it an ideal addition for medium to large restaurants, cafes, and commercial kitchens that require a complete warewashing and drying solution in a single line.

Powered by a 13.5kW heating element box combined with an upper fan driven by a 1.1kW motor, the TS8-COO delivers fast, consistent drying performance to keep ware flowing during busy service periods. With a total electric power draw of 14.6kW and a 2-year parts and labour warranty, it offers a reliable and cost-effective upgrade to any Fagor compact conveyor dishwashing setup.

Key Benefits

• Accelerates throughput by drying dishes immediately after the wash cycle, reducing handling time and keeping service running smoothly
• Eliminates the need for manual towel drying, improving hygiene outcomes and reducing labour costs
• Integrated upper fan distributes heat evenly across ware for consistent drying results with every rack
• Modular design connects directly to compatible Fagor CCO-320 rack conveyor dishwasher models, simplifying installation and workflow
• 13.5kW heating capacity handles the demands of high-volume service in medium to large establishments
• Compact footprint of 800mm wide suits tight kitchen layouts without sacrificing throughput capacity
• 2-year parts and labour warranty provides peace of mind and protects the investment in a commercial kitchen environment

Key Features

• Specifically designed for use with Fagor Rack Conveyor Dishwasher modular models CCO-320
• 13.5kW heating element box provides powerful, rapid drying heat
• Upper fan with 1.1kW motor circulates heated air across dishes for thorough, even drying
• Total electric power: 14.6kW
• Motor/engine power: 1.1kW
• Heating power: 13.5kW
• Amperage: 25A
• Power supply: 380-415V, 3N, 50/60Hz
• Operating noise level: 72dB
• Dimensions: 800mm (W) x 790mm (D) x 1930mm (H)
• Packed dimensions: 800mm (W) x 955mm (D) x 2200mm (H)
• Weight: 697.75kg
• 2-year parts and labour warranty

Specifications

• Width (mm): 800
• Depth (mm): 790
• Height (mm): 1930
• Weight (kg): 697.75
• Packed Width (mm): 800
• Packed Depth (mm): 955
• Packed Height (mm): 2200
• Power Delivery: 380-415V - 3N; 25A; 50/60Hz
• Warranty (months): 2 Years Parts and Labour
