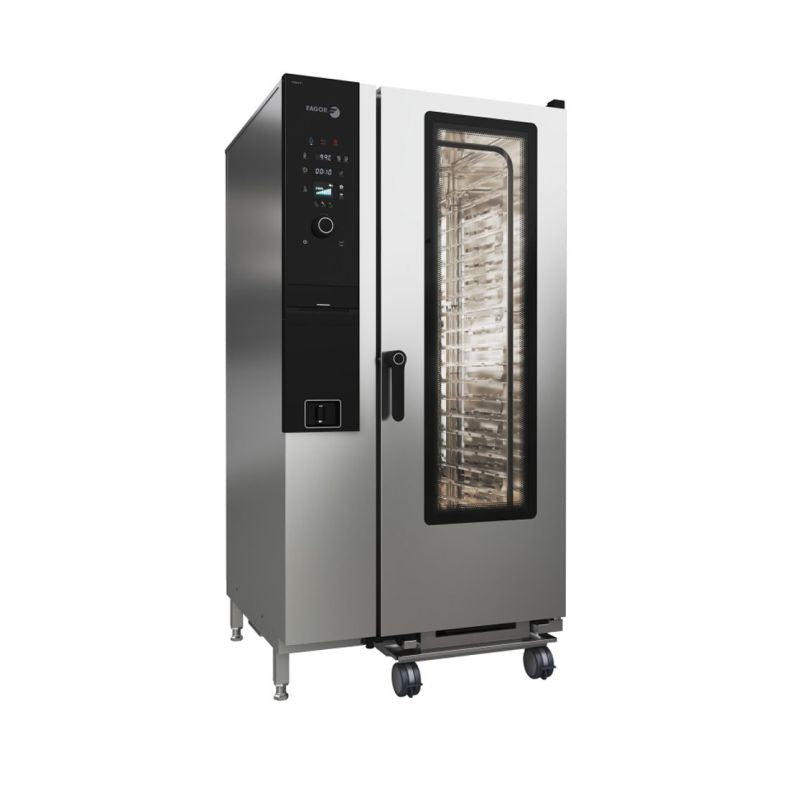

Fagor CW-201ERSWS iKORE Concept 20 Tray Combi Oven

The Fagor CW-201ERSWS is a professional, fully configurable 20-tray combi oven from the iKORE Concept generation, engineered for precision cooking through an advanced steam saturation system and intelligent climate management. It operates across five distinct cooking modes that range from gentle low-temperature steam through to full convection, handling roasting, steaming, baking, and regeneration within a single unit, making it one of the most versatile platforms available for high-volume commercial kitchens.

The iKORE generation introduces autonomous operation with intelligent recipe management, remote control capability, and self-diagnostic apps, while the integrated iWashing system ensures maximum hygiene after every service. Constructed entirely from AISI 304 stainless steel, certified to IPX5 splash and jet protection, and backed by a 2-year parts and labour warranty, the CW-201ERSWS is designed to deliver consistent, repeatable results across the most demanding kitchen environments.

Key Benefits

• A suite of five cooking modes covering low-temperature steam, standard steam, super steam, mixed, and convection gives chefs complete flexibility from gentle sous vide-style cooking through to high-heat roasting, all within one oven.
• The iClima humidity sensor with 10% regulation capacity, together with integrated moisture addition and moisture removal capability, maintains the precise atmospheric conditions required for each dish, including chamber dehumidification for achieving crispy roasts via Delta cooking.
• The Fagor Recipe Centre stores 100 factory-tested preset recipes plus more than 100 custom 9-stage recipes, enabling consistent, repeatable results across different shifts and skill levels without relying on individual technique.
• Remote monitoring and control capability, combined with a Monitor App, a Maintenance App for proactive fault management, and a Logging App that records cycle history and error history, reduces downtime and supports planned maintenance.
• The iWashing system provides a selection of either solid-format or liquid-format intelligent washing programs, offering cleaning cycles that cover basic cleaning, automatic cleaning, rinsing, and polishing, keeping hygiene standards high while minimising manual effort and chemical waste.
• Automatic adaptation to installation site characteristics including altitude adjustments, initial self-testing, and automatic boiling point adjustment ensures reliable performance regardless of where the oven is installed.
• A four-point internal temperature probe with a built-in positioning aid provides accurate core temperature monitoring across large or multiple loads, reducing the risk of under- or over-cooking.

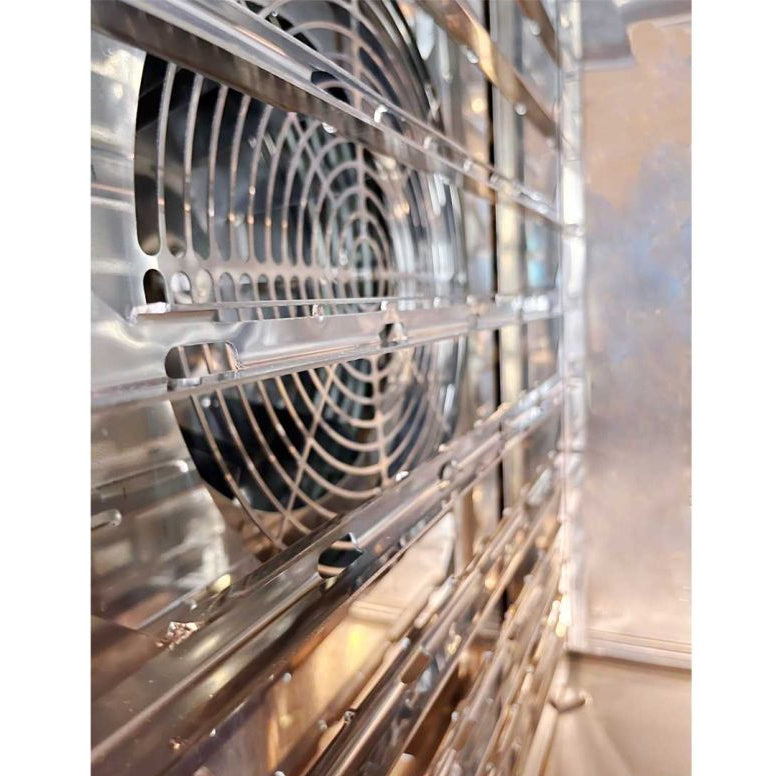

• An integrated turbine brake, auto-reverse fan rotation, and indirect combustion via HA-Control improve both operator safety and cooking uniformity throughout the chamber.
• Dual-mode rapid cabinet cooling using both air and water, combined with delayed programming and 12 power selection options including a half-power setting, gives operators precise control over energy use and workflow timing.

Key Features

• 20-tray capacity combi oven suitable for high-volume commercial kitchen operations
• 8-inch screen with rotary knob and push-to-confirm function for intuitive navigation and input
• iClima system: humidity management and control via direct humidity sensor measurement, with 10% regulation capacity
• DirectSteam: steam generated by injecting water directly into the turbine, atomising it and converting it to steam for rapid, consistent moisture delivery
• Five cooking modes: low-temperature steam (30–98°C), standard steam (99°C), super steam (100–130°C), mixed (30–300°C), and convection (30–300°C)
• Chamber dehumidification function for crispy roasting results via Delta cooking
• Fagor Recipe Centre: 100 factory preset, culinarily tested recipes; storage for more than 100 custom 9-stage recipes
• Rapid cabinet cooling system utilising both air-based and water-based cooling methods
• Internal temperature probe featuring four separate measurement points and a positioning aid for accurate core temperature monitoring
• Manual steam injection

Specifications

• Width (mm): 898
• Depth (mm): 817
• Height (mm): 1841
• Weight (kg): 315
• Packed Width (mm): 1095
• Packed Depth (mm): 1015
• Packed Height (mm): 2070
• Power Delivery: 415V/50Hz; 37.2kW;3N
• Power (kW): 415
• Warranty (months): 2 Years Parts and Labour
