Overview

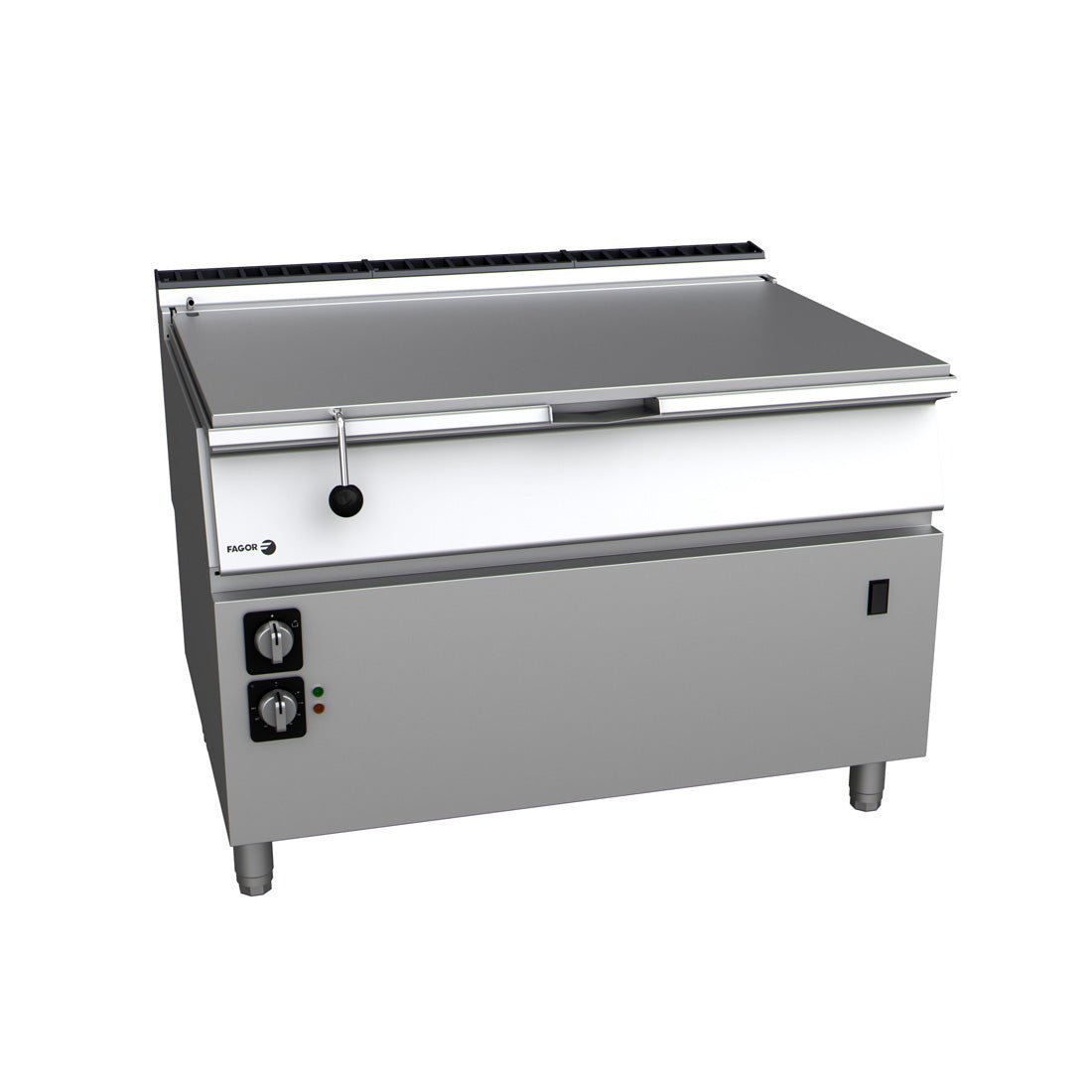

Fagor SB-E915IM Kore 900 Series Electric 120L Bratt Pan

The Fagor SB-E915IM is a heavy-duty electric tilting bratt pan from the Kore 900 Series, offering a generous 120-litre capacity designed to handle the demands of busy commercial kitchens. With a maximum output of 22.5 kW and a temperature range of 100 to 310°C, it delivers precise, consistent heat across a wide variety of cooking tasks, all from a single, compact unit.

This versatile unit functions effectively as a fryer, fry-top, boiling pan, or bain-marie, making it a true four-in-one cooking solution. Built to European food contact and electrical safety standards, and rated IPX5 for water protection, the SB-E915IM combines robust stainless steel construction with thoughtful hygiene and safety features that reduce downtime and simplify daily kitchen operations.

Key Benefits

• Four cooking modes in one unit — frying, grilling, wet boiling and bain-marie — reduce equipment costs and free up valuable kitchen floor space.
• A 10 mm thick pan base distributes heat evenly across the entire cooking surface, minimising hot spots and producing consistent results batch after batch.
• Automatic 90-degree tilting system allows total emptying of the pan quickly and safely, speeding up service turnaround and reducing manual handling risk.
• Automatic heating shut-off when the container is tilted prevents accidental overheating and protects both the equipment and kitchen staff.
• Front-panel electro valve switch for filling, combined with a rear filling tap, allows fast and convenient water loading without repositioning around the unit.
• Double-walled hood with a rear condensation drain redirects moisture back into the pan, retaining heat and reducing mess on surrounding surfaces.
• IPX5-rated water protection and watertight controls allow confident use in wet commercial kitchen environments and thorough washdown cleaning.
• Minimum pan edge radius of 3.5 mm and a wide discharge opening simplify cleaning and help maintain strict food hygiene standards.
• Compliance with EN-60335, EN-203, and EN-202-3 standards confirms the unit meets European electrical safety, efficiency, combustion, and food contact material regulations.

Key Features

• 120-litre stainless steel pan capacity, part of the Kore 900 Series modular range.
• Maximum power output of 22.5 kW via shielded stainless steel electrical resistances mounted at the pan base.
• Temperature range of 100 to 310°C, controlled by a primary thermostat with an independent safety thermostat as backup.
• Very thick 10 mm container base for uniform heat distribution and even cooking.
• Minimum pan edge radius of 3.5 mm to facilitate thorough cleaning and support food hygiene compliance.
• Automatic tilting system allows the pan to tilt 90 degrees for complete emptying.
• Heating element automatically shuts off when the container is tilted.
• Electro valve water filling system operated by a front-panel switch; filling tap positioned at the rear of the unit.
• Double-walled hood with a rear drain channel to redirect condensation water back into the pan.
• Lid-balancing springs and a front access cover handle for easy operation.
• Wide discharge opening for straightforward food transfer and cleaning access.
• Laser-cut panels and automatic welding ensure precise module alignment with a square-angle finish.
• High-temperature chimney protector constructed from enamelled cast iron.
• Watertight and protective support controls.
• Front access to internal components for simplified servicing and maintenance.
• IPX5 grade water ingress protection rating.
• Compliant with EN-202-3 (materials in contact with food), EN-60335 (electrical safety), and EN-203 (gas appliance efficiencies and combustion — applied here to overall European standards compliance).
• Dimensions: 1,200 x 930 x 850 mm (W x D x H).
• Warranty: 2 Years Parts and Labour plus 2 Years Parts Only for products registered within 14 days of invoice.

Specifications

• Width (mm): 1200
• Depth (mm): 530
• Height (mm): 850
• Weight (kg): 254.107
• Packed Width (mm): 1022
• Packed Depth (mm): 1240
• Packed Height (mm): 1140
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
