Overview

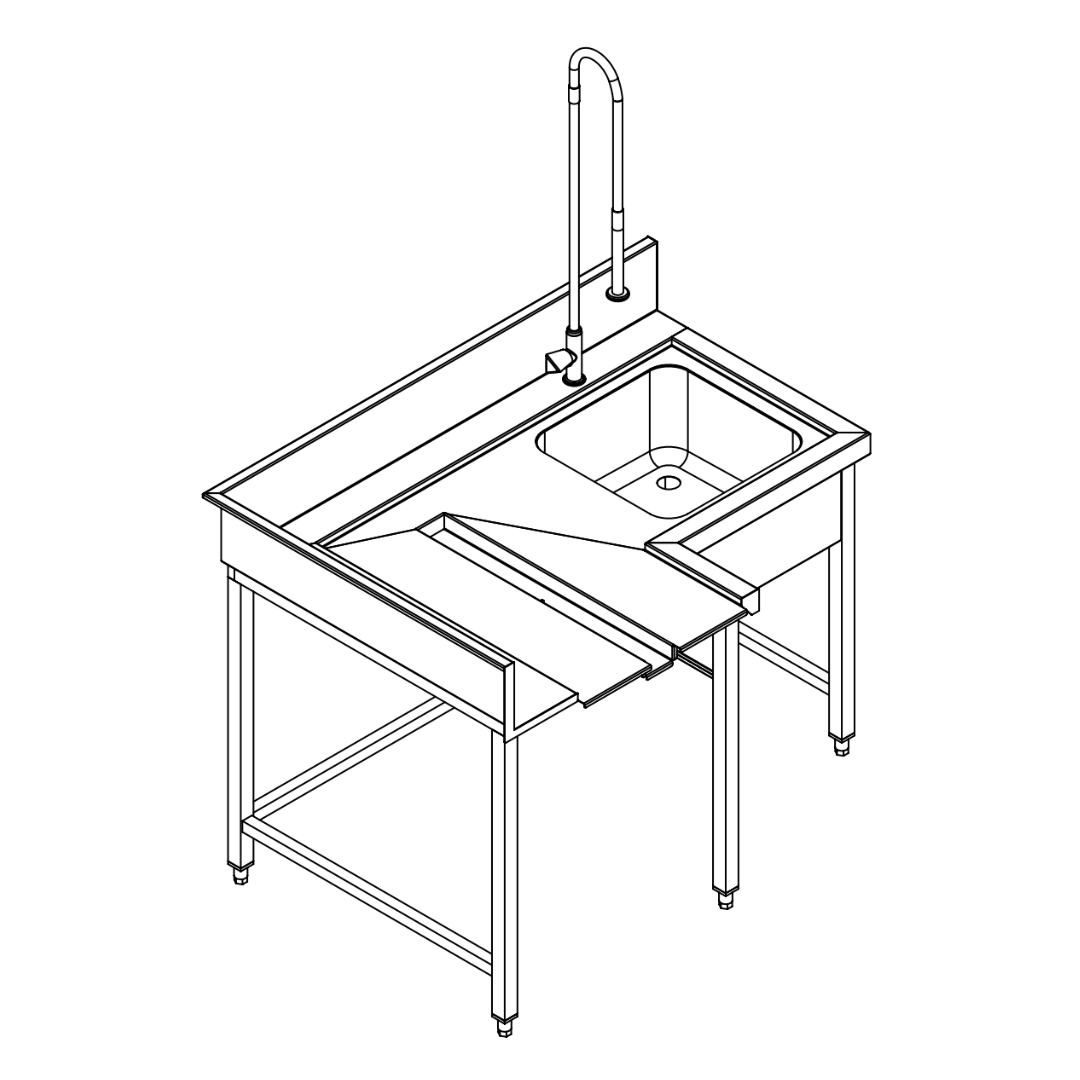

Fagor MCFD-1000D Pre-Rinsing Sink Bench with Introductor of Baskets

The Fagor MCFD-1000D is a heavy-duty pre-rinsing sink bench with an integrated basket introductor, purpose-built for use with Fagor CCO rack conveyor dishwashers in medium to large commercial kitchens, restaurants and cafés. Constructed entirely from AISI-304 (18/10) stainless steel, it forms a seamless entry point in a conveyor dishwashing line, allowing staff to pre-rinse soiled ware and feed 500mm x 500mm baskets directly into the basket advancement system with minimal effort.

Designed as a corner unit to be positioned on the left of the dishwasher, the bench features an angled table that connects the basket loader to the machine, a dedicated pre-wash sink, a flexible shower tap, and deep anti-drip profiles for controlled water runoff and straightforward cleaning. Height-adjustable square tubular legs and a hole-free worksurface further simplify daily sanitation routines, while the unit's compatibility with Fagor's broad range of entry, exit and pre-wash table configurations means it can be integrated into a solution tailored to virtually any kitchen layout.

Key Benefits

• Speeds up the dishwashing workflow by giving staff a dedicated pre-rinsing station directly ahead of the conveyor entry point, reducing basket turnaround time during busy service.
• The integrated basket introductor aligns with the conveyor's advancement system, allowing baskets to be loaded and fed through smoothly without manual lifting or repositioning.
• Height-adjustable legs allow the bench to be set at the most ergonomic working height for staff, reducing fatigue during extended service periods.
• All-stainless AISI-304 construction resists corrosion, withstands heavy commercial use and meets the hygiene demands of professional kitchen environments.
• A hole-free worksurface eliminates crevices where food debris and moisture can accumulate, making routine cleaning faster and more thorough.
• Deep anti-drip profiles with fully folded lower edges contain water runoff and direct it safely away from the floor, reducing slip hazards around the dishwashing area.
• Quick installation and straightforward connection to the dishwasher minimises downtime during fit-out or equipment changeover.
• Compatible with Fagor's wide range of complementary entry, exit and pre-wash tables, supporting a fully configured conveyor dishwashing line suited to any kitchen footprint.

Key Features

• Corner pre-wash table with basket introductor, oriented to be placed on the left of the dishwasher
• Compatible with Fagor CCO rack conveyor dishwashers
• Accepts standard 500mm x 500mm dishwashing baskets
• Integrated element to introduce baskets into the conveyor advancement system
• Angled table section prepared to connect the basket loader directly to the dishwasher
• Flexible shower tap for pre-rinsing soiled ware
• Pre-wash sink measuring 450mm x 450mm
• Sink area: 1,400mm L x 700mm W
• Loader area: 950mm L x 800mm W
• Rear guard: 200mm
• Water inlet diameter: 3/4 inch
• Drain diameter: 30 x 25mm
• Hole-free worksurface for improved hygiene and easier cleaning
• Deep anti-drip profiles, completely folded with a lower edge, to safely contain and direct water runoff
• Full AISI-304 (18/10) stainless steel construction throughout
• 40mm x 40mm square tubular legs in AISI-304 stainless steel, adjustable in height
• Part of Fagor's wide range of entry, exit and pre-washing table configurations

Specifications

• Width (mm): 1450
• Depth (mm): 1000
• Height (mm): 900
• Weight (kg): 371.5
• Packed Width (mm): 1510
• Packed Depth (mm): 800
• Packed Height (mm): 1230
• Warranty (months): 2 Years Parts and Labour
