Overview

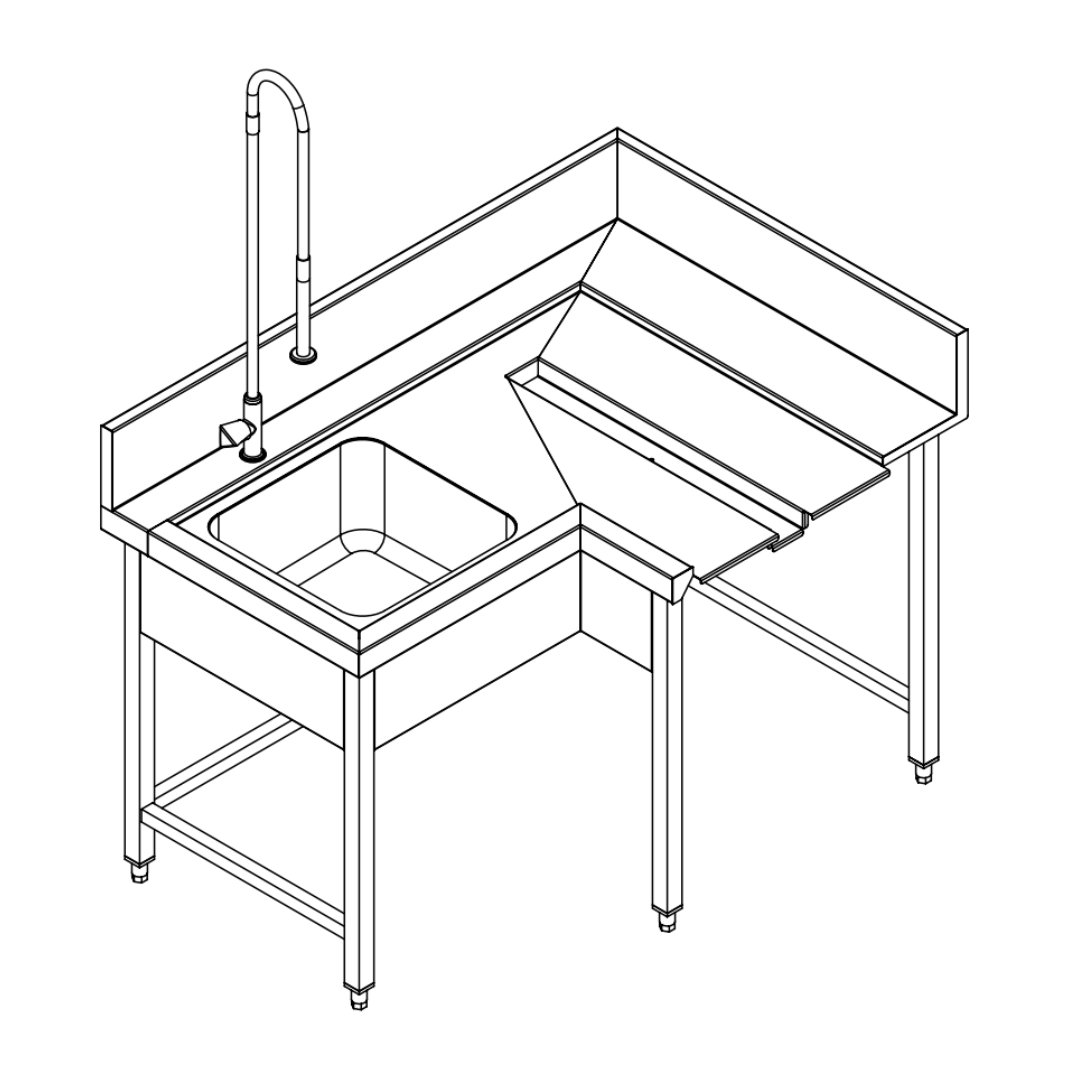

Fagor MCFD-1000I Pre-Rinsing Sink Bench with Introductor of Baskets

The Fagor MCFD-1000I is a commercial pre-rinsing sink bench with an integrated basket introductor, purpose-built to partner with Fagor CCO rack conveyor dishwashers in medium to large foodservice operations. Constructed entirely from AISI-304 (18/10) stainless steel, it is designed for right-hand corner placement and connects the basket loading system directly to the dishwasher, streamlining the flow of soiled ware through the warewashing line.

Accommodating the standard 500 mm x 500 mm dishwashing basket format, this bench features a dedicated sink area, a loader zone, a flexible shower tap for pre-rinsing, and deep anti-drip profiles for safe, easy cleaning. Height-adjustable legs, a no-hole bench surface, and a rear guard make it a practical, hygienic, and low-maintenance addition to any high-throughput kitchen.

Key Benefits

• Smooth integration with Fagor CCO rack conveyor dishwashers keeps the warewashing line moving efficiently during peak service periods.
• Right-hand corner angle configuration optimises kitchen floor space and supports logical workflow from scraping through pre-rinsing to the dishwasher.
• The basket introductor element synchronises with the conveyor advancement system, reducing manual handling and keeping staff focused on other tasks.
• A flexible shower tap allows thorough, targeted pre-rinsing of heavily soiled items before they enter the dishwasher, improving wash results and protecting machine components.
• Height-adjustable AISI-304 stainless steel legs accommodate varying bench heights and uneven floors, reducing operator fatigue and simplifying installation.
• A continuous no-hole bench surface and fully folded anti-drip profiles with a lower edge prevent water pooling and make daily cleaning fast and thorough.
• Quick installation and straightforward plumbing connections (3/4-inch water inlet, 30x25 drain) minimise downtime during setup or replacement.

Key Features

• Pre-rinsing sink bench with integrated basket introductor, designed for right-hand corner placement
• Compatible exclusively with Fagor CCO rack conveyor dishwashers
• Accepts standard 500 mm x 500 mm dishwashing baskets
• Basket introductor element works in concert with the conveyor advancement system for continuous basket flow
• Angle table configuration prepared to connect the basket loader directly to the dishwasher
• Flexible shower tap included for pre-rinsing soiled ware
• Sink dimensions: 450 mm x 450 mm
• Sink area: 1,400 mm (L) x 700 mm (W)
• Loader area: 950 mm (L) x 800 mm (W)
• 200 mm rear guard along the back edge
• Water inlet: 3/4-inch diameter
• Drain diameter: 30 x 25
• No holes on the bench surface, maintaining hygiene and structural integrity
• Deep anti-drip profiles completely folded with a lower edge for safe containment and easy cleaning
• Full AISI-304 (18/10) stainless steel construction throughout
• 40 mm x 40 mm square tubular legs in AISI-304 stainless steel, adjustable in height
• Part of a wide range of entry, exit, and pre-rinsing tables offering solutions for varied kitchen layouts and throughput requirements

Specifications

• Width (mm): 1660
• Depth (mm): 1000
• Height (mm): 900
• Weight (kg): 371.5
• Packed Width (mm): 1510
• Packed Depth (mm): 800
• Packed Height (mm): 1230
• Warranty (months): 2 Years Parts and Labour
