Overview

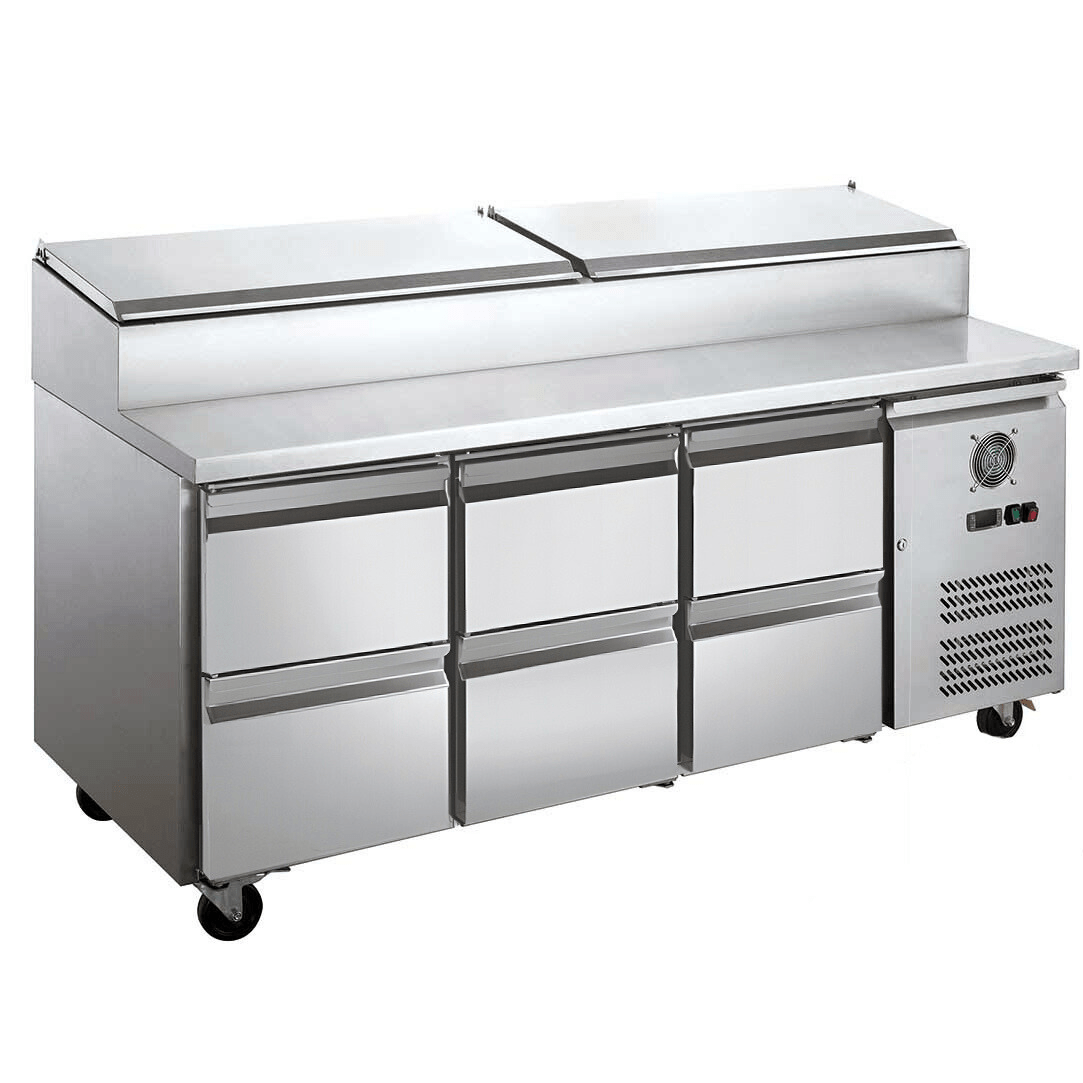

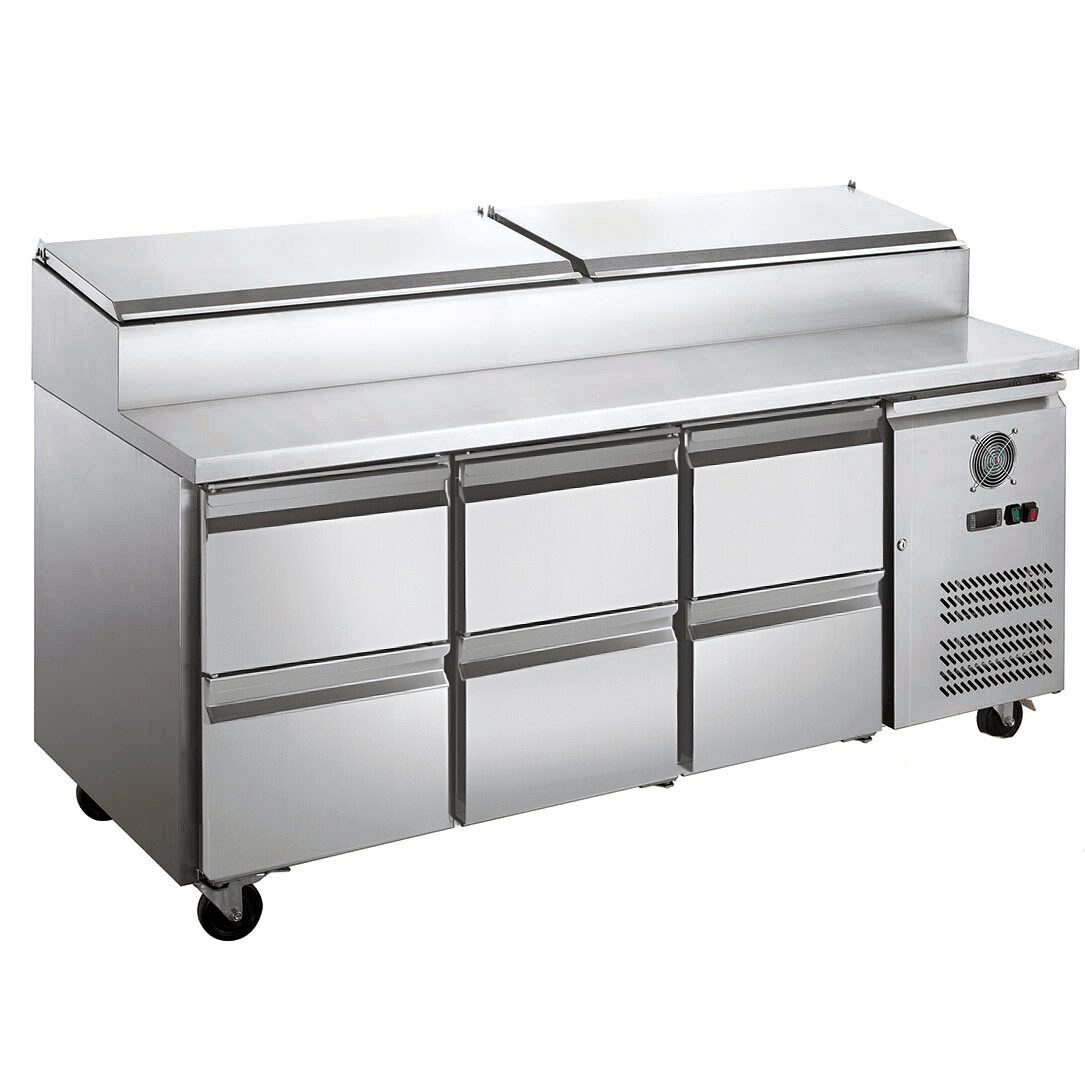

FED-X XSS7C18S3V-6D Six Drawer Refrigerated Salad Prep Counter

The FED-X XSS7C18S3V-6D is a 417-litre stainless steel refrigerated prep counter fitted with six heavy-duty drawers, purpose-built for high-volume commercial kitchens, pizzerias, and salad and sandwich preparation stations. Fan-forced cooling maintains a consistent temperature range of +2°C to +8°C, and the unit is fully tropicalised to operate in ambient temperatures up to 43°C at 60% relative humidity, making it well suited to the demands of the Australian foodservice environment.

Built with stainless steel interior and exterior surfaces and rounded corners for straightforward cleaning, the counter accommodates up to 8 x 1/3 GN pans up to 150mm deep on the prep rail, keeping toppings and ingredients within easy reach during service. The eco-friendly R290 refrigerant, 60mm HFC and CFC-free foam insulation, and Ebm-papst evaporator and condenser fans contribute to efficient, low-maintenance operation, while heavy-duty lockable castors with front wheel brakes allow the unit to be positioned and secured wherever needed on the kitchen floor.

Key Benefits

• Six refrigerated drawers provide organised, accessible ingredient storage, reducing retrieval time and keeping food at safe temperatures throughout service.
• Fan-forced cooling delivers even temperature distribution across the entire cabinet, eliminating warm spots and protecting ingredient quality.
• The pre-chilled prep rail display maintains its temperature for a four-hour window, supporting continuous service even during brief power interruptions.
• Tropicalised design rated to 43°C ambient temperature ensures reliable performance in hot, busy Australian commercial kitchen conditions.
• Dixell digital controller with user-friendly digital controls allows precise temperature management and easy monitoring at a glance.
• Rounded interior corners and stainless steel surfaces on both inside and outside speed up cleaning and support strict hygiene standards.
• R290 refrigerant and CFC/HFC-free insulation foam reduce environmental impact while maintaining excellent thermal efficiency.
• Heavy-duty castors with front wheel brakes make repositioning simple and keep the unit stable during prep work.
• Plug-and-play 10A connection means the unit can be operational quickly without specialist electrical installation.

Key Features

• Gross volume 417 litres; net volume 400 litres
• Six heavy-duty refrigerated drawers for ingredient storage
• Fan-forced cooling system for consistent, even temperature distribution
• Temperature range: +2°C to +8°C
• Maximum ambient operating temperature: 43°C at 60% relative humidity
• Cubigel compressor
• Dixell digital controller with user-friendly digital controls
• Ebm-papst evaporator and condenser fans
• Automatic defrost system
• Refrigerant: R290 (eco-friendly, low global warming potential)
• 60mm HFC and CFC-free foam body insulation
• Stainless steel interior and exterior construction
• Rounded interior corners for fast, thorough cleaning
• Compatible with 8 x 1/3 GN pans up to 150mm deep on the prep rail
• Pre-chilled prep top display rail retains temperature for four hours after loss of power
• Removable stainless lid on the topping rail
• Weight loading capacity: 40kg per shelf
• Heavy-duty castors with front wheel brakes for mobility and stability
• Tropicalised for Australian conditions
• Rapid temperature recovery rate after door openings
• 240V, 50Hz, 10A, 320W power supply; plug-and-play connection
• Warranty: 2 years labour and parts coverage, followed by a further 2 years covering parts only, when the product is registered within 14 days of invoice

Specifications

• Width (mm): 1795
• Depth (mm): 700
• Height (mm): 1406
• Weight (kg): 387.5
• Packed Width (mm): 1830
• Packed Depth (mm): 730
• Packed Height (mm): 1160
• No. of Doors: 6
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• Cooling Type: Fan Forced
• Power Delivery: 240V; 50V; 10A; 320W
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 417
