Overview

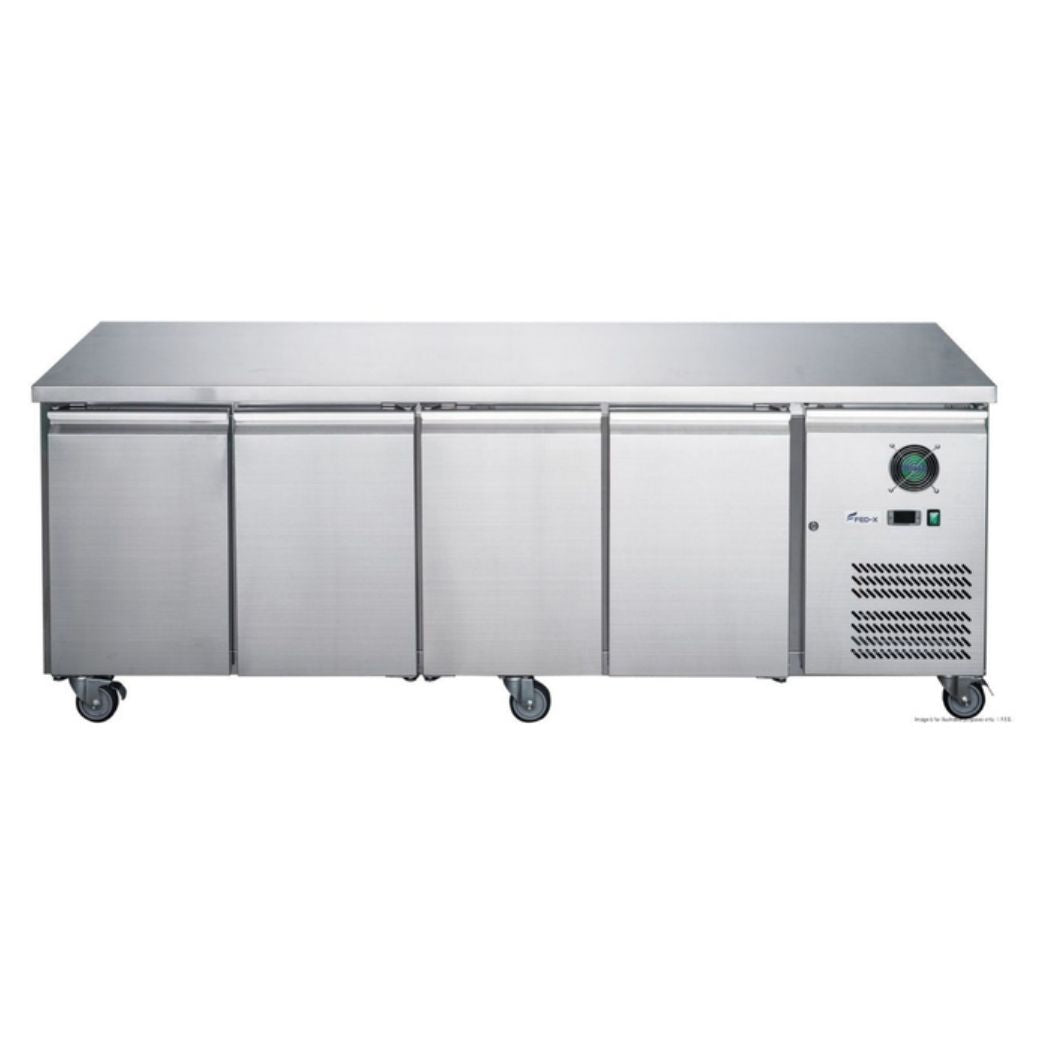

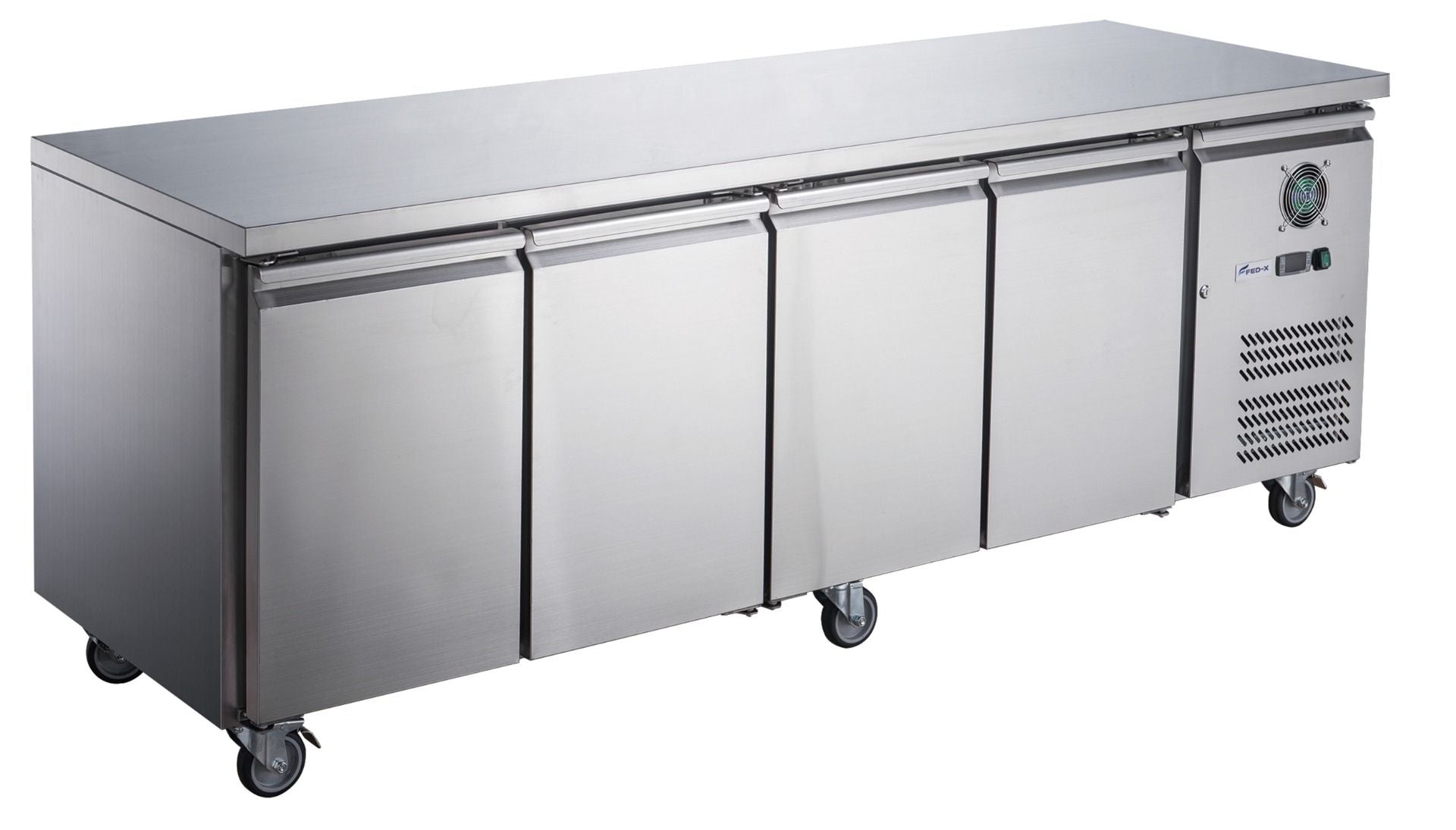

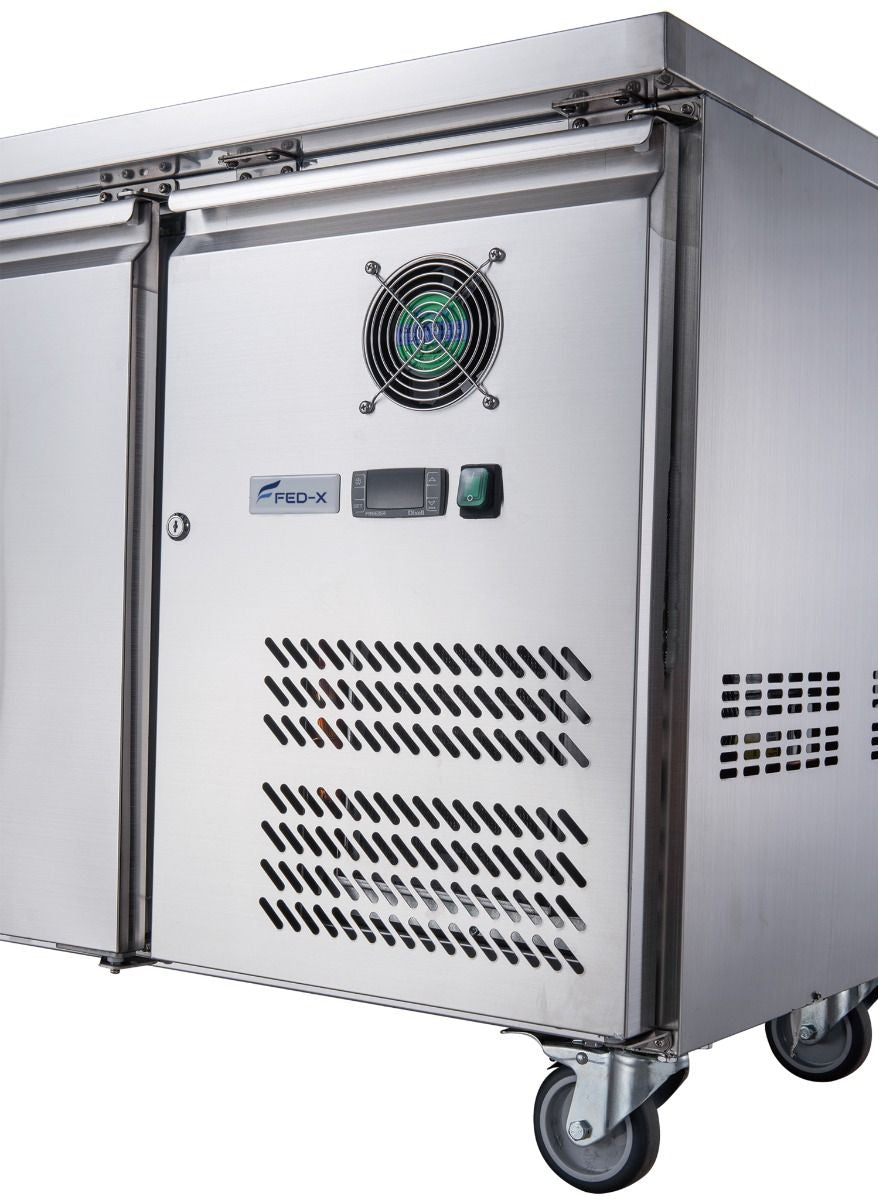

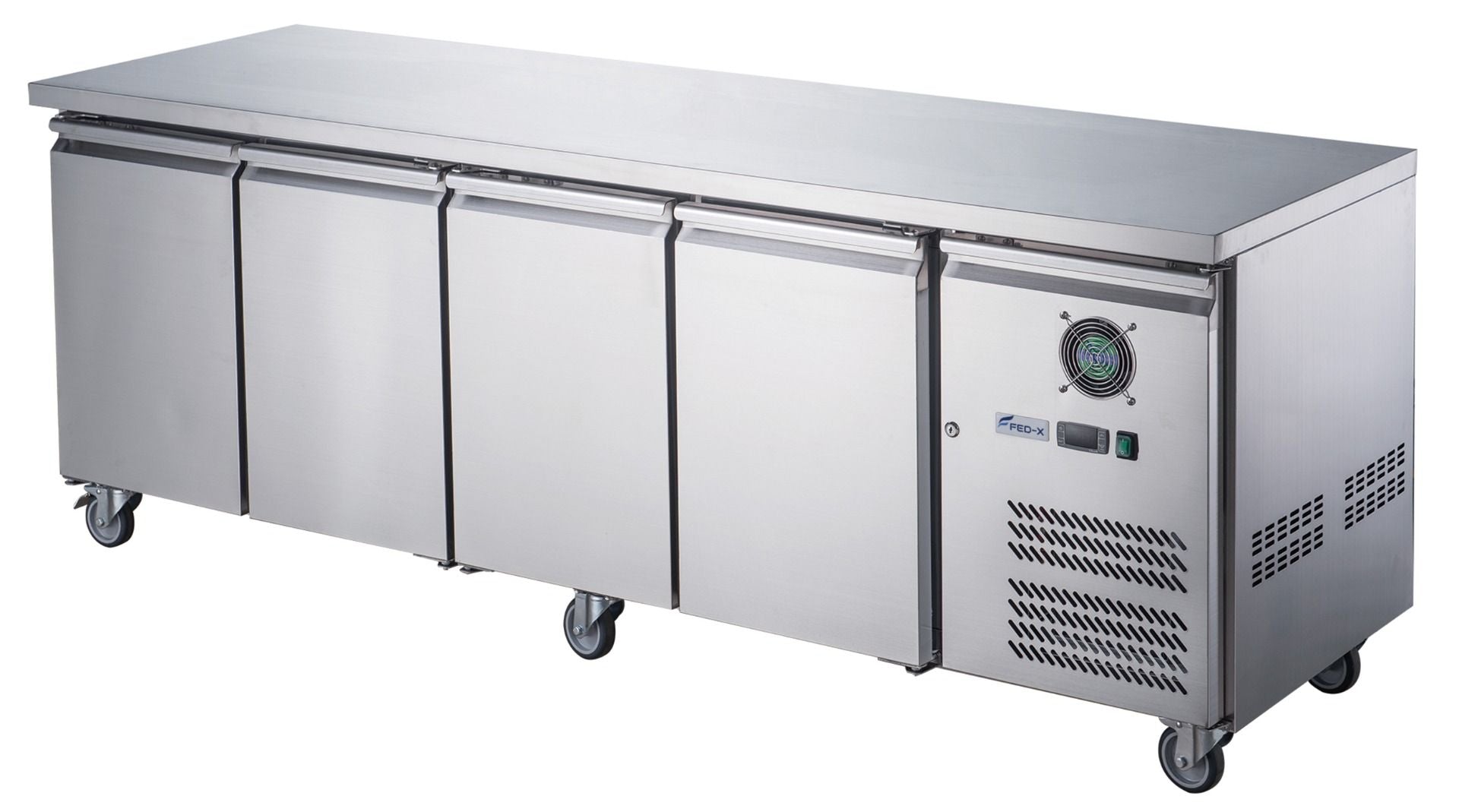

FED-X XUB6C22S4V Stainless Steel Four Door Bench Fridge

The FED-X XUB6C22S4V is a heavy-duty four door bench fridge built for the demands of busy commercial kitchens, restaurants, cafes, catering venues, and food retail environments. With a 449L gross capacity and a wide 2230mm footprint, it delivers substantial refrigerated storage while the stainless steel top provides a hygienic, ready-to-use food preparation surface. Tropicalised for Australian conditions, the unit operates reliably in ambient temperatures up to 43°C at 60% relative humidity, making it well suited to the full range of Australian hospitality settings.

Constructed from stainless steel inside and out with rounded internal corners for straightforward cleaning, this bench fridge uses a fan-forced cooling system powered by a Cubigel compressor and controlled by a Dixell digital controller to maintain a precise temperature range of -2°C to 8°C. The R290 refrigerant and HFC and CFC free 60mm foam insulation reflect a commitment to environmentally responsible refrigeration. Self-closing doors with heavy-duty magnetic seals, automatic defrost, self-evaporating drainage, and heavy-duty castors with front-wheel brakes round out a package designed for low-maintenance, high-reliability daily operation.

Key Benefits

• Fan-forced cooling distributes cold air evenly throughout the cabinet, eliminating warm spots and protecting food safety during high-traffic service periods.
• The stainless steel bench top doubles as a dedicated food preparation surface, maximising the value of every square metre of kitchen floor space.

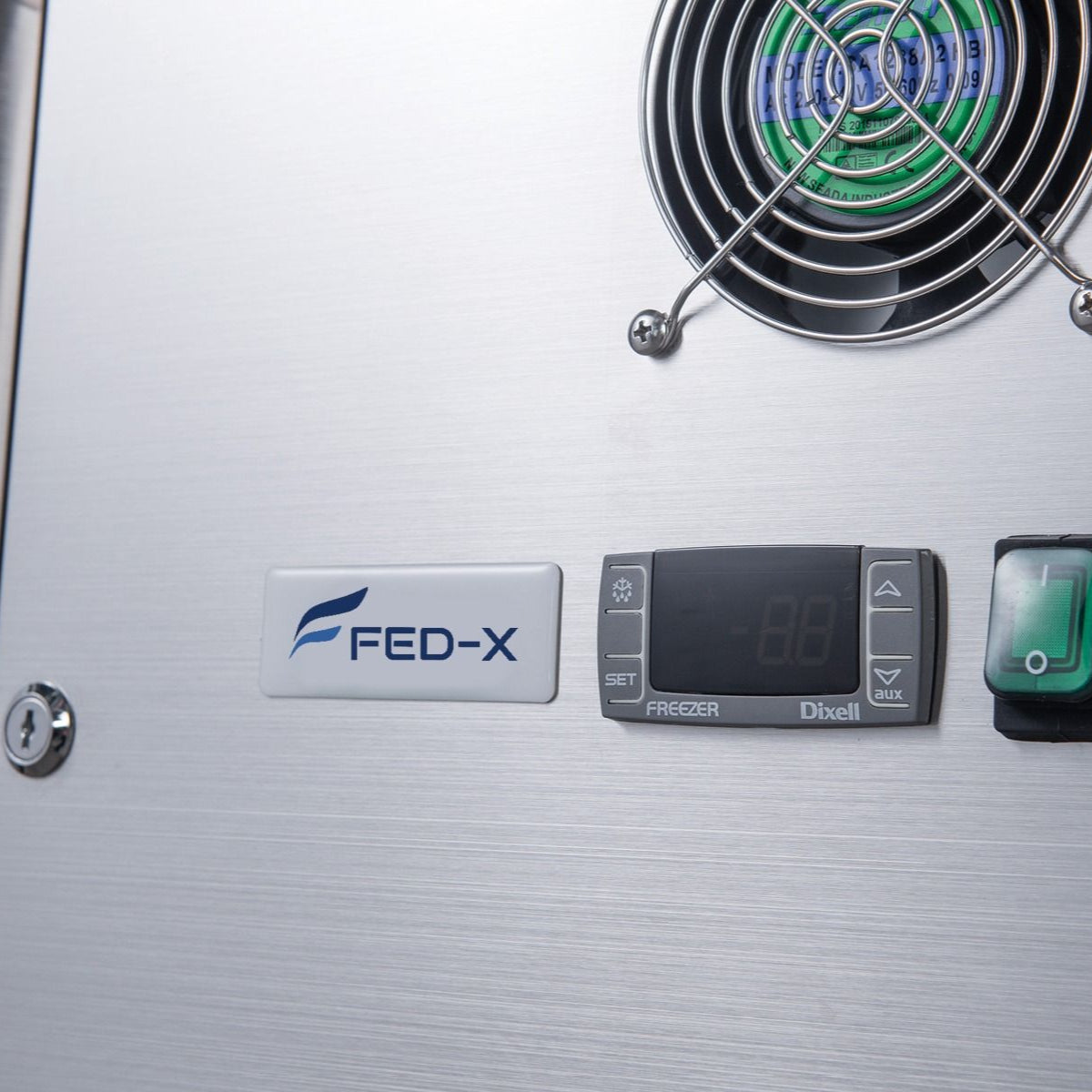

• Dixell digital controller provides accurate, user-friendly temperature management so staff can monitor and adjust settings quickly without specialist training.
• Auto defrost and self-evaporating drainage reduce routine maintenance demands, keeping the unit running efficiently with minimal staff intervention.
• Self-closing doors with heavy-duty magnetic seals limit cold air loss during busy service, supporting rapid temperature recovery and consistent food safety compliance.
• Heavy-duty castors with front-wheel brakes make repositioning the unit straightforward for thorough cleaning underneath and around the cabinet.
• R290 refrigerant combined with HFC and CFC free foam insulation meets contemporary environmental standards without compromising cooling performance.

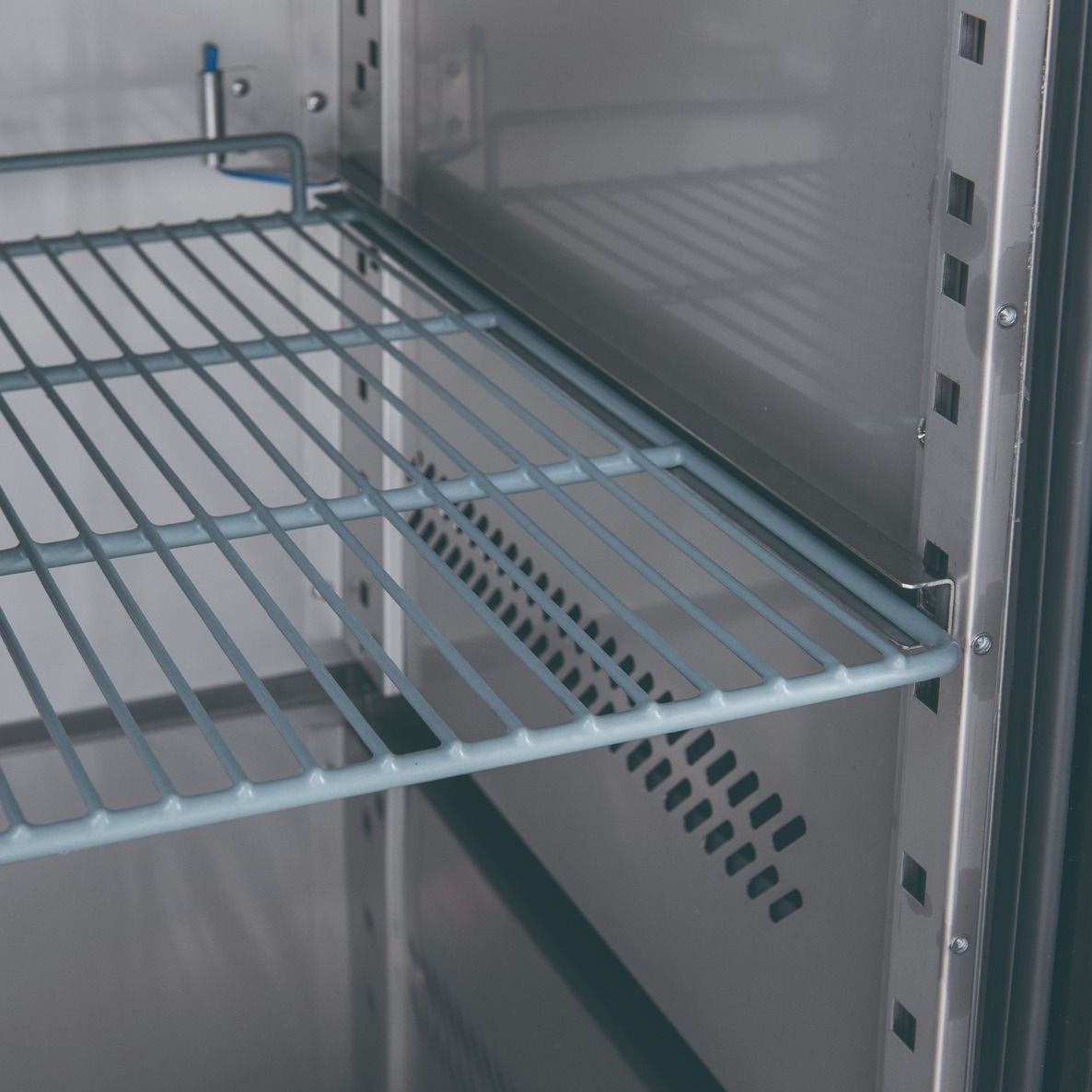

• Each door includes one shelf rated to 40kg, with additional shelf sets available, allowing flexible storage configuration to suit changing menu needs.
• Tropicalised design and a maximum ambient operating temperature of 43°C ensure reliable performance in warm Australian kitchen environments year-round.

Key Features

• Gross volume 449L; net volume 339L
• Temperature range: -2°C to 8°C
• Maximum ambient operating temperature: 43°C at 60% relative humidity
• Fan-forced cooling system with heavy-duty evaporator and condenser fans for even airflow
• Cubigel compressor for reliable, efficient refrigeration
• Dixell digital controller with user-friendly interface
• R290 refrigerant
• 60mm HFC and CFC free foam body insulation
• Stainless steel interior and exterior construction
• Rounded internal corners for easy cleaning
• Integrated stainless steel worktop serves as a food preparation surface
• Four self-closing doors with heavy-duty magnetic door seals
• One shelf included per door; additional shelf sets available separately
• Weight loading capacity of 40kg per shelf
• Automatic defrost
• Self-evaporating drainage system
• Heavy-duty castors with front-wheel brakes for mobility and stability
• Unit can be positioned directly against a wall (100mm wall clearance required for ventilation)
• Internal dimensions: 1669mm W x 480mm D x 564mm H
• External dimensions: 2230mm W x 600mm D x 850mm H
• Power supply: 240V, 50Hz, 10A, 345W
• Tropicalised for Australian climate conditions
• 2 Years Parts and Labour plus 2 Years Parts Only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 2230
• Depth (mm): 600
• Height (mm): 850
• Weight (kg): 324
• Packed Width (mm): 2260
• Packed Depth (mm): 630
• Packed Height (mm): 910
• Shipping Weight: 121
• Shipping Cubic: 0.882000000m3
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• No. of Doors: 5714
• Mobility: 5810
• Power Delivery: 240V; 50V; 10A; 345W
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 449
• Cooling Type: 5806
• Defrost Type: 5805
