Overview

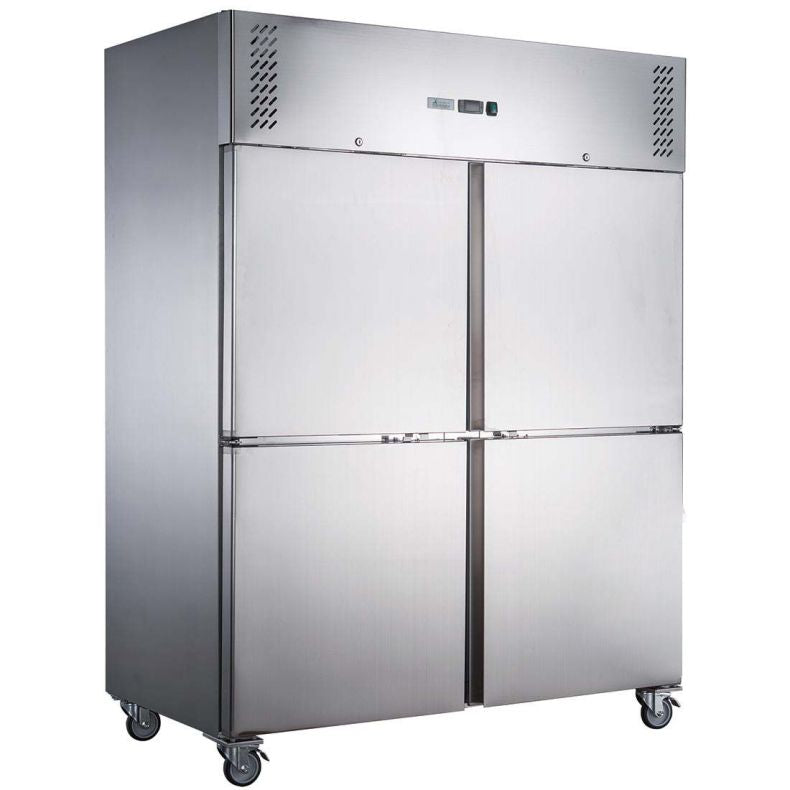

FED-X XURF1200S2V Stainless Steel Split Four-Door Upright Freezer 1200L

The FED-X XURF1200S2V is a heavy-duty stainless steel split four-door upright freezer purpose-built for high-volume commercial kitchens. With a gross volume of 1236L and a net usable capacity of 791L, it delivers generous frozen storage in a robust cabinet finished in stainless steel inside and out, complete with rounded internal corners for effortless cleaning. The unit operates across a temperature range of -22 to -18°C and is tropicalised for Australian conditions, rated to perform in ambient temperatures up to 43°C at 60% relative humidity.

The half-split door configuration is a standout operational feature, allowing staff to access only the section they need rather than exposing the entire cabinet to warm air. This design can reduce yearly running costs by up to 30% through faster temperature recovery and reduced energy consumption. Controlled by a Dixell digital controller and cooled by a fan-forced system using eco-friendly R290 refrigerant, the XURF1200S2V combines precise temperature management with a straightforward 10A plug-in installation, making it a practical and efficient choice for busy service environments.

Key Benefits

• The 1/2 split door design limits cold air loss to only the section being accessed, enabling rapid temperature recovery and cutting yearly running costs by up to 30%.
• Fan-forced cooling circulates air evenly throughout the entire cabinet, maintaining consistent freezing temperatures across all sections even during peak service.
• Tropicalised construction and a 43°C ambient rating mean reliable, stable performance in hot Australian kitchen environments without compromising food safety.
• Self-closing lockable doors with heavy-duty magnetic seals help maintain set temperatures automatically, reducing energy waste and improving food safety compliance.
• Each shelf is rated to hold up to 40kg and is designed to accommodate two 1/1 GN pans, providing organised, high-density storage compatible with standard commercial kitchenware.
• R290 refrigerant is HFC and CFC free, making this unit a more environmentally responsible choice without sacrificing cooling performance.
• Auto defrost and self-evaporating drainage minimise maintenance requirements, keeping the unit running efficiently without manual intervention.
• Heavy-duty castors with front-wheel brakes allow easy repositioning for cleaning underneath and around the unit, while still keeping it securely in place during service.
• Simple 10A plug-in power connection means fast, hassle-free installation with no specialist electrical work required.

Key Features

• Gross volume 1236L; net volume 791L
• Operating temperature range: -22 to -18°C
• Maximum ambient temperature: 43°C at 60% relative humidity, tropicalised for Australian conditions
• Fan-forced cooling system for even temperature distribution throughout the cabinet

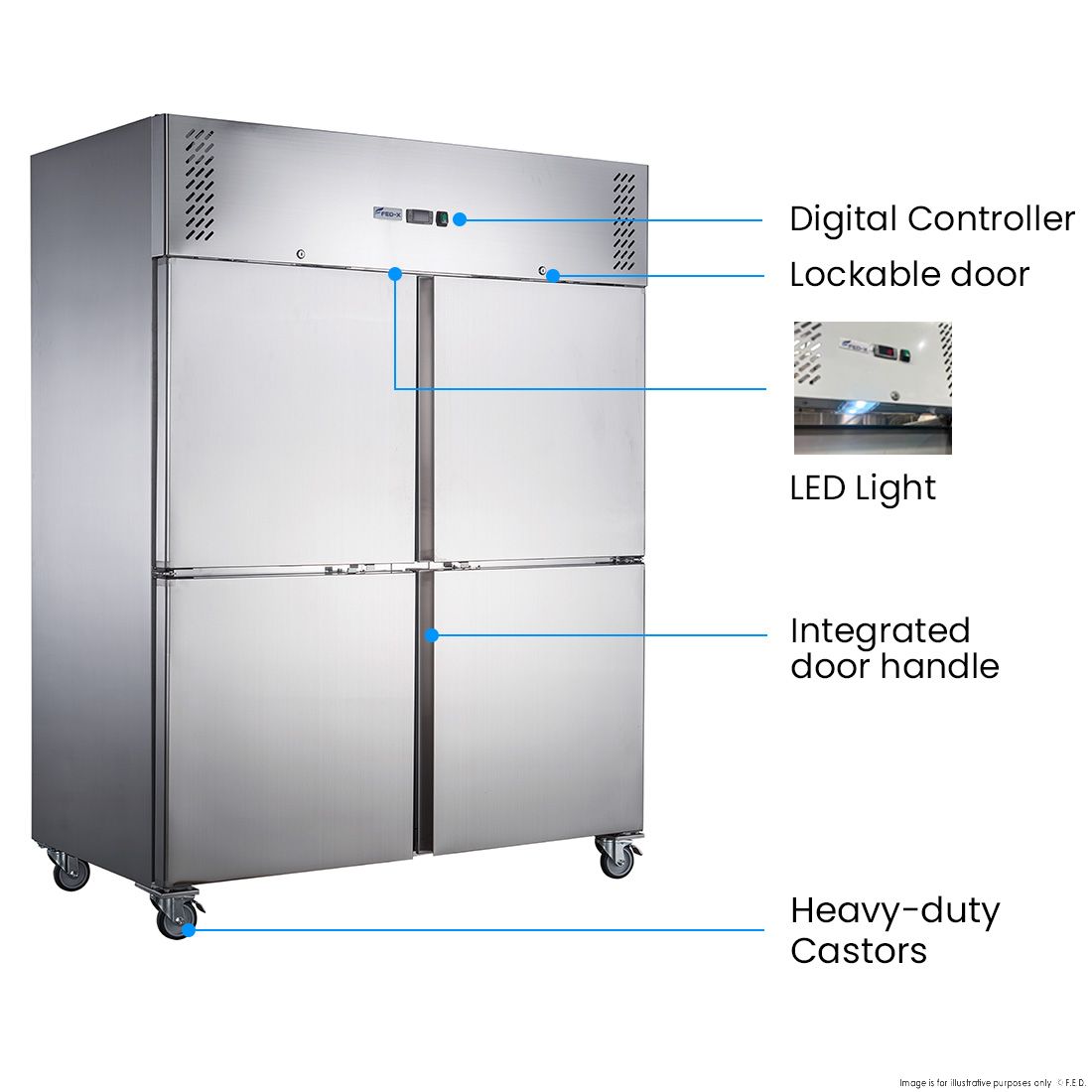

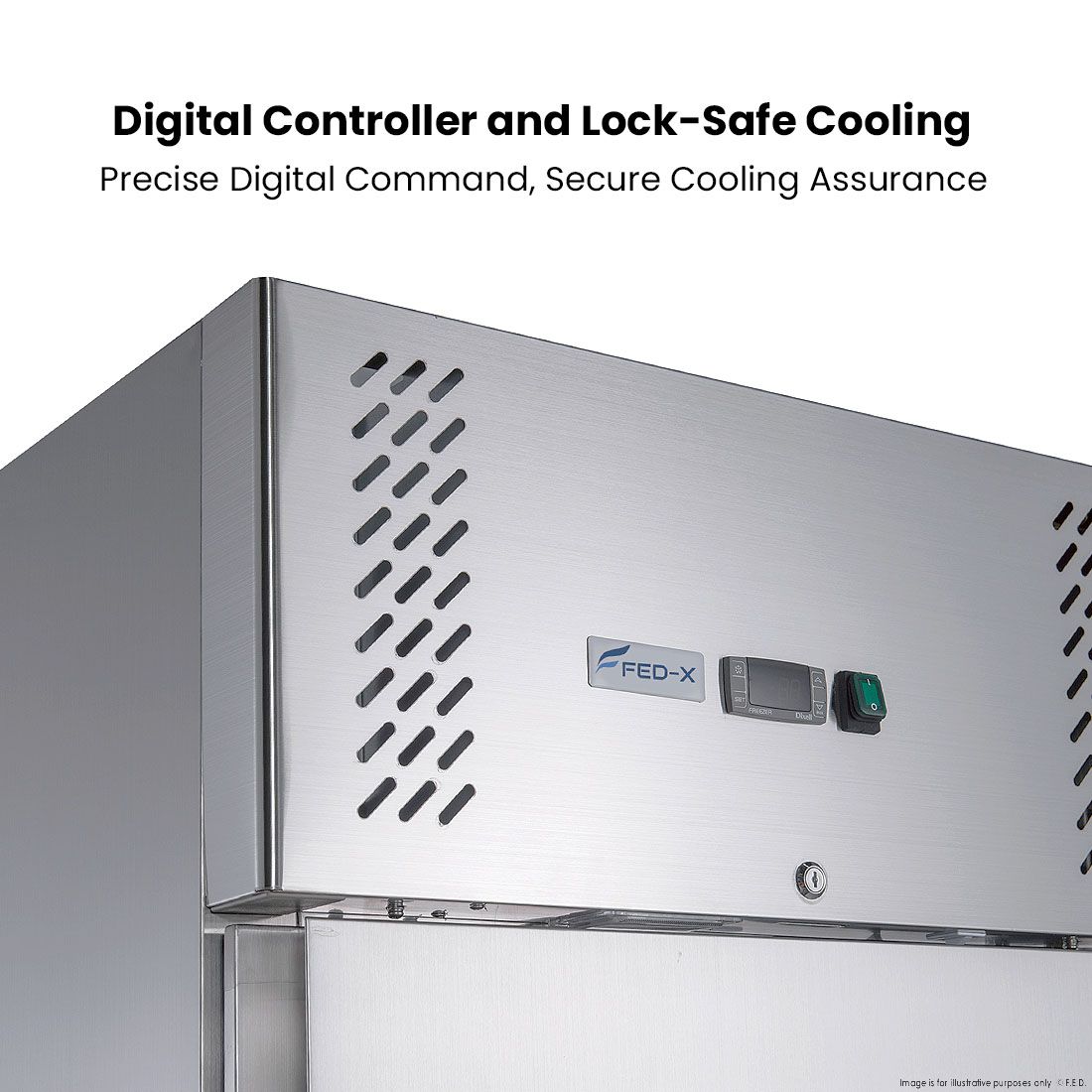

• Dixell digital controller with user-friendly digital display for precise temperature monitoring
• Cubigel compressor
• R290 refrigerant; HFC and CFC free foam body insulation
• Stainless steel interior and exterior construction
• Rounded internal corners for simplified cleaning
• 1/2 split four-door configuration for rapid temperature recovery and energy saving
• Self-closing lockable doors with heavy-duty magnetic door seals

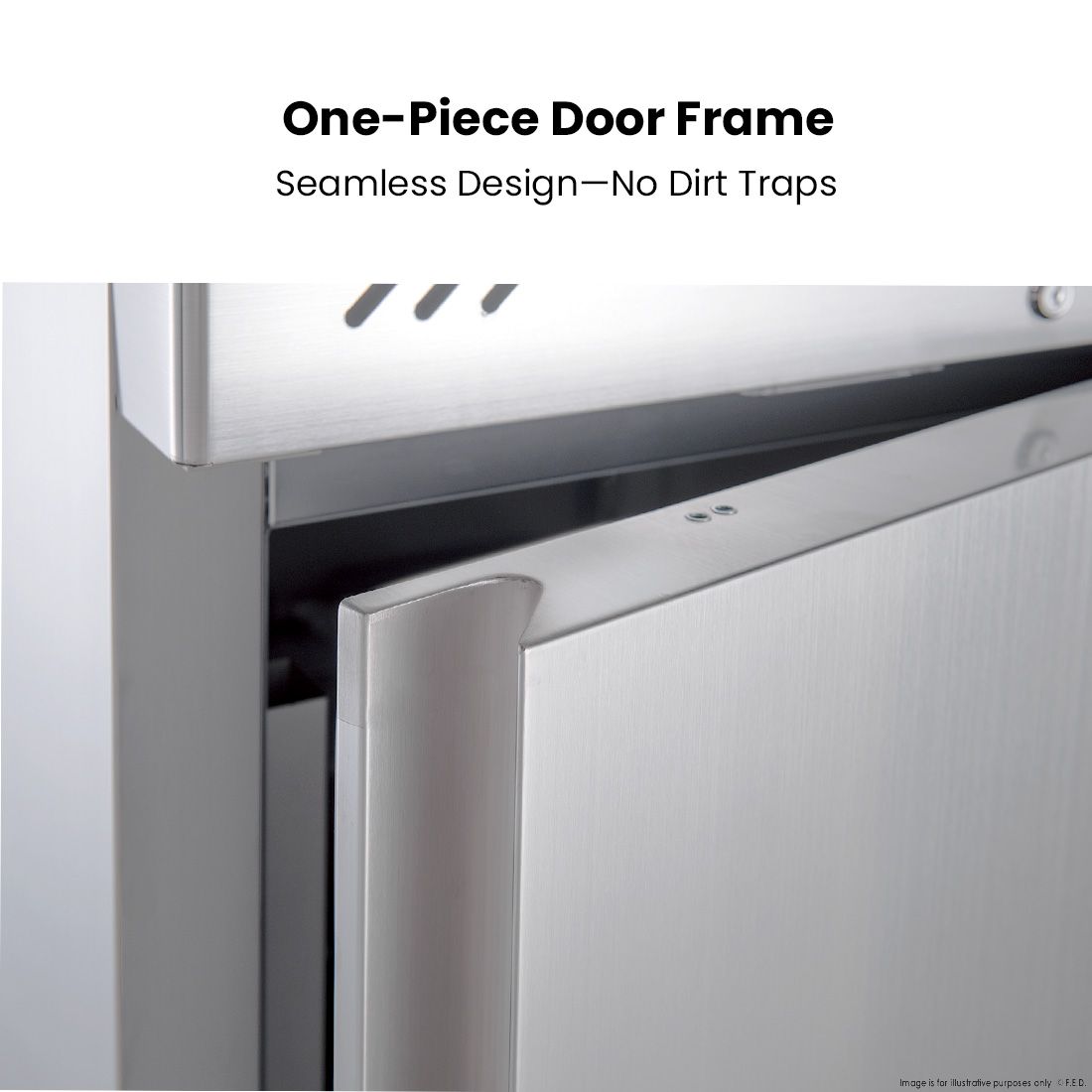

• Integrated flush door handles for unobstructed, easy-to-clean surfaces

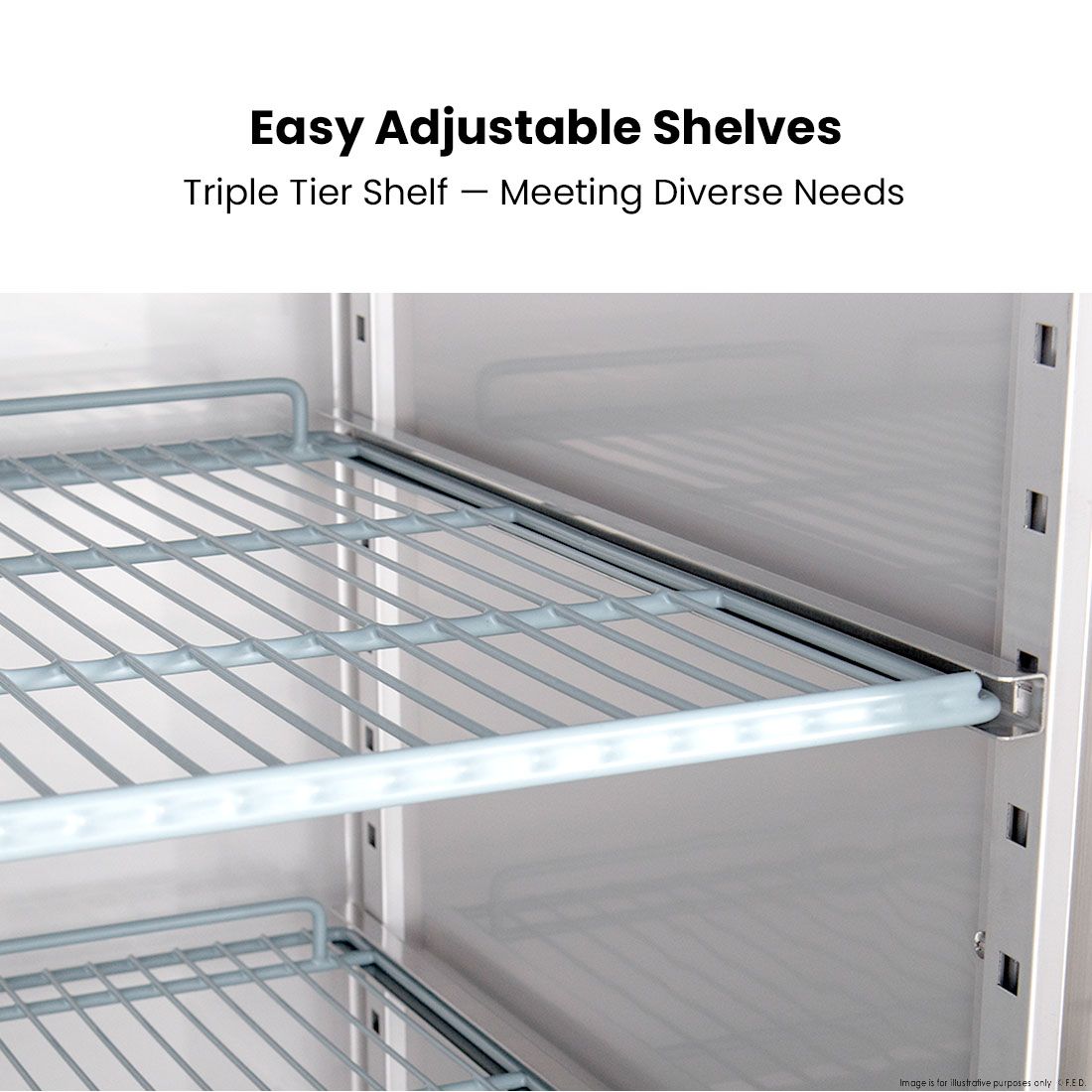

• Three levels of shelving plus a base level; shelves and supports accommodate 2 x 1/1 GN pans
• Weight loading capacity of 40kg per shelf
• Internal dimensions: 1224mm W x 682mm D x 1394mm H
• Internal lighting for clear visibility of cabinet contents
• Auto defrost for low-maintenance operation
• Heavy-duty evaporator and condenser fans
• Heavy-duty castors with front-wheel brakes for secure placement and easy repositioning
• 240V / 50Hz / 10A power supply; 730W power consumption
• 2 Years Parts and Labour plus 2 Years Parts Only warranty when the product is registered within 14 days of invoice

Specifications

• Width (mm): 1340
• Depth (mm): 810
• Height (mm): 2000
• Weight (kg): 604
• Packed Width (mm): 1365
• Packed Depth (mm): 855
• Packed Height (mm): 2150
• Shipping Weight: 177
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• No. of Doors: 5714
• Defrost Type: Auto
• Cooling Type: Fan Forced
• Power Delivery: 240V; 50V; 10A; 730W
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 1200
