Overview

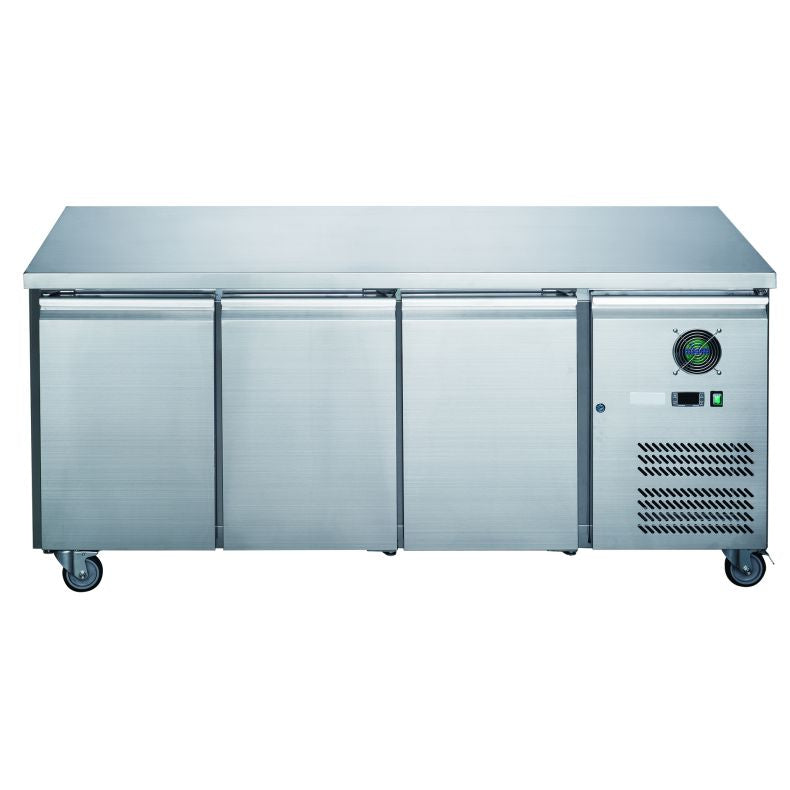

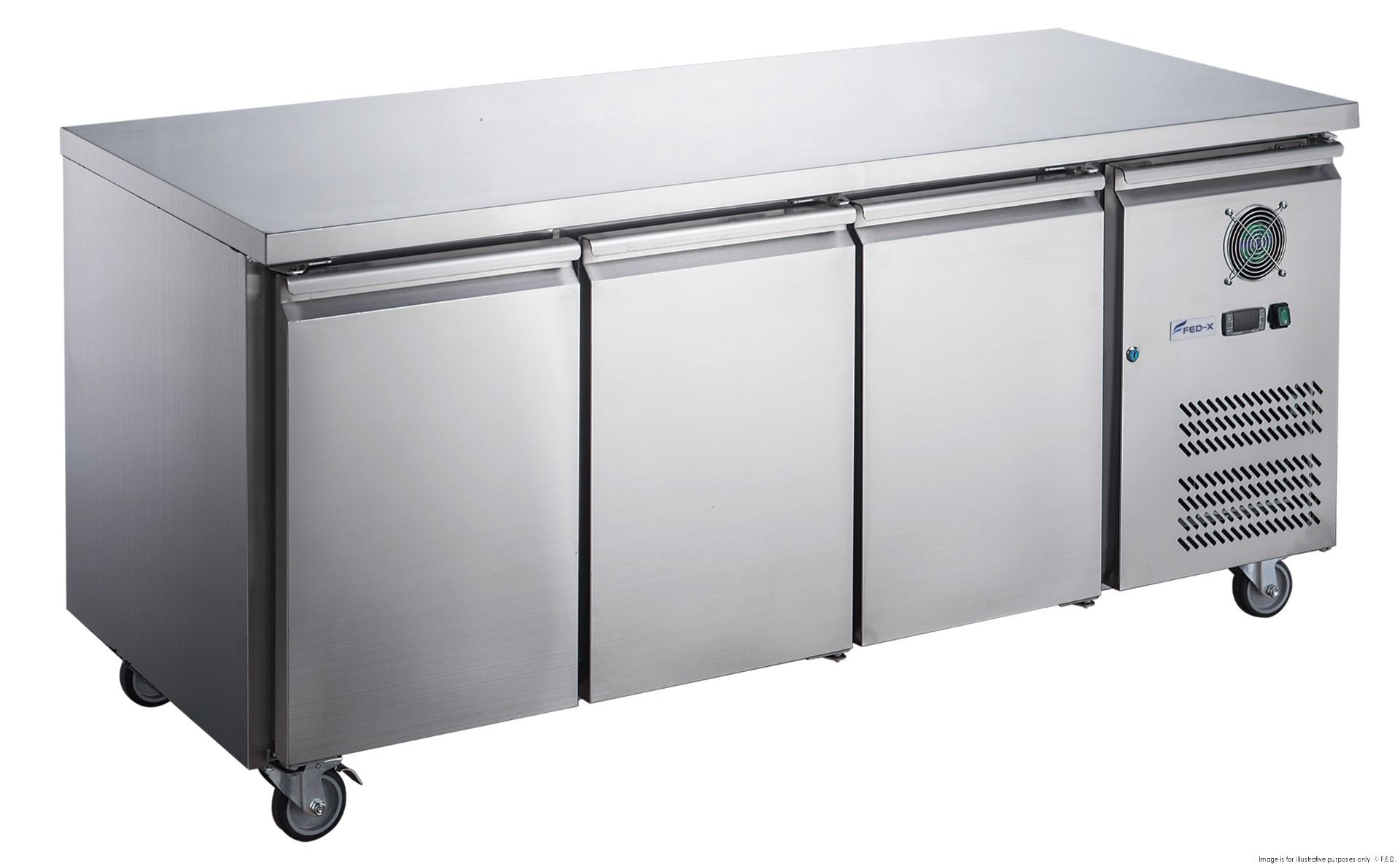

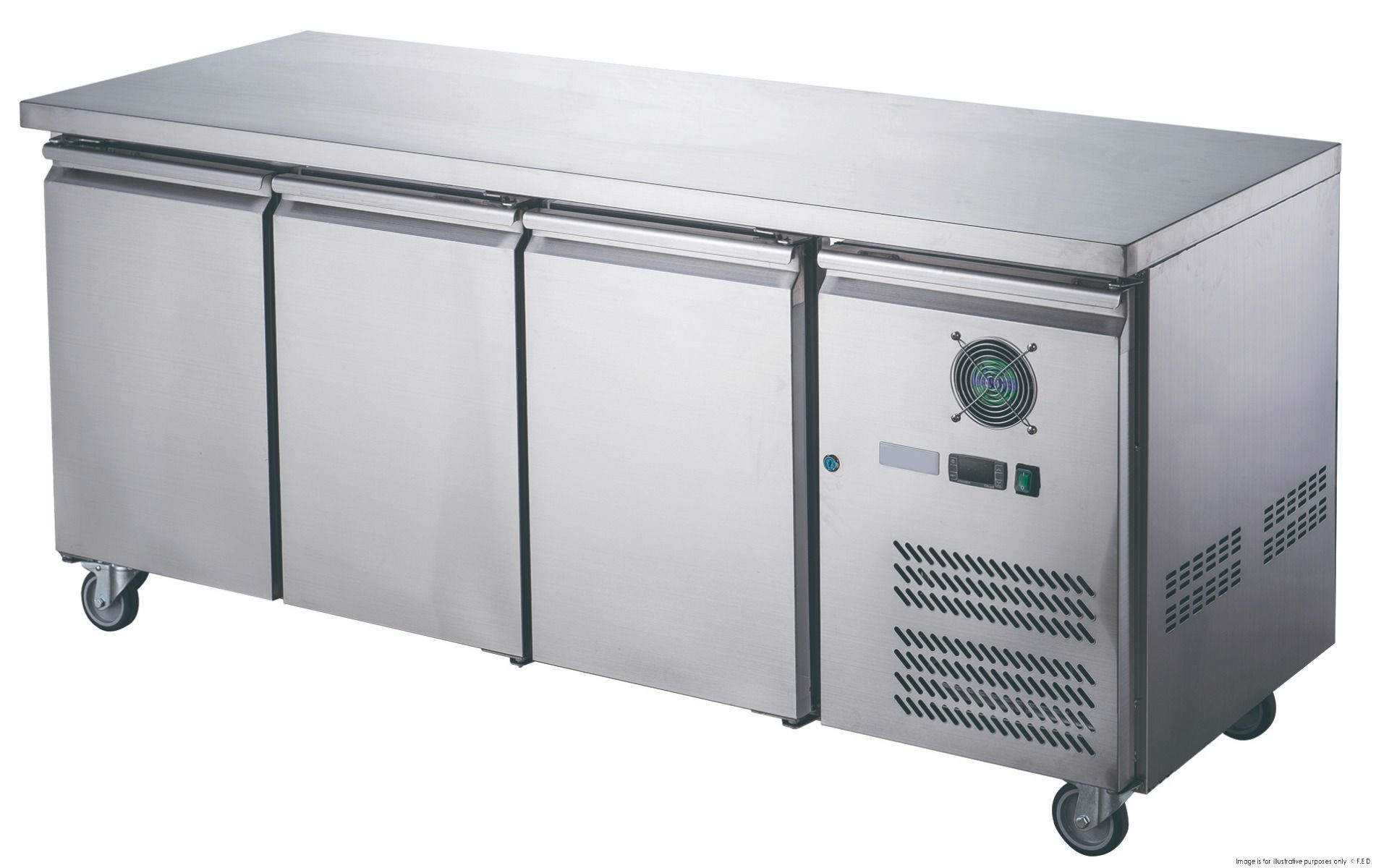

FED-X XUB7F18S3V Stainless Steel Three Door Bench Freezer

The FED-X XUB7F18S3V is a commercial-grade three door bench freezer built for the demands of busy kitchens, cafes, restaurants, fast food operations, butcheries, and convenience stores. With a 417L gross capacity, fan-forced cooling, and a temperature range of -18°C to -22°C, it delivers consistent, reliable freezing performance across the entire cabinet. The stainless steel worktop doubles as a valuable food preparation surface, making this unit a highly practical addition to any commercial kitchen layout.

Designed to fit neatly under an existing counter or flush against the wall, the XUB7F18S3V maximises use of floor space without sacrificing storage capacity. Its full stainless steel interior and exterior, rounded internal corners, CFC and HCFC free foam insulation, and Dixell digital controller reflect a build quality that meets food safety and hygiene standards. Tropicalised for Australian conditions, it handles ambient temperatures up to 38°C with ease, while the R290 refrigerant keeps its environmental footprint in check.

Key Benefits

• Fan-forced cooling circulates cold air evenly throughout the cabinet, eliminating warm spots and keeping all stored product at a safe, consistent temperature during busy service periods.
• The integrated stainless steel worktop provides an additional food preparation surface right where frozen ingredients are accessed, improving kitchen workflow and reducing handling time.
• Heavy-duty castors with front-wheel brakes allow the unit to be repositioned quickly for thorough cleaning underneath and behind, supporting kitchen hygiene compliance.
• Self-closing doors with heavy-duty magnetic seals minimise temperature fluctuations and reduce energy consumption, protecting food quality even during high-traffic service.
• GN1/1 pan compatibility with one shelf per door and optional additional slides means gastronorm pans slot straight in and out, streamlining mise en place and stock rotation.
• The Dixell digital controller allows temperature adjustment one degree at a time, giving kitchen staff precise control over freezing conditions for different product types.
• 60mm CFC and HCFC free foam insulation combined with auto defrost and self-evaporating drainage reduces maintenance demands and supports efficient, uninterrupted operation.
• Optional 2 and 3-drawer configurations and splashback tops are available upon request, allowing the unit to be tailored to specific operational needs without requiring additional equipment.
• Tropicalised for Australian conditions and rated to a maximum ambient temperature of 38°C at 60% relative humidity, ensuring dependable performance in warm commercial environments.

Key Features

• Gross capacity 417L; net volume 311L
• Temperature range -18°C to -22°C
• Fan-forced cooling system with Ebm-Papst evaporator and condenser fans

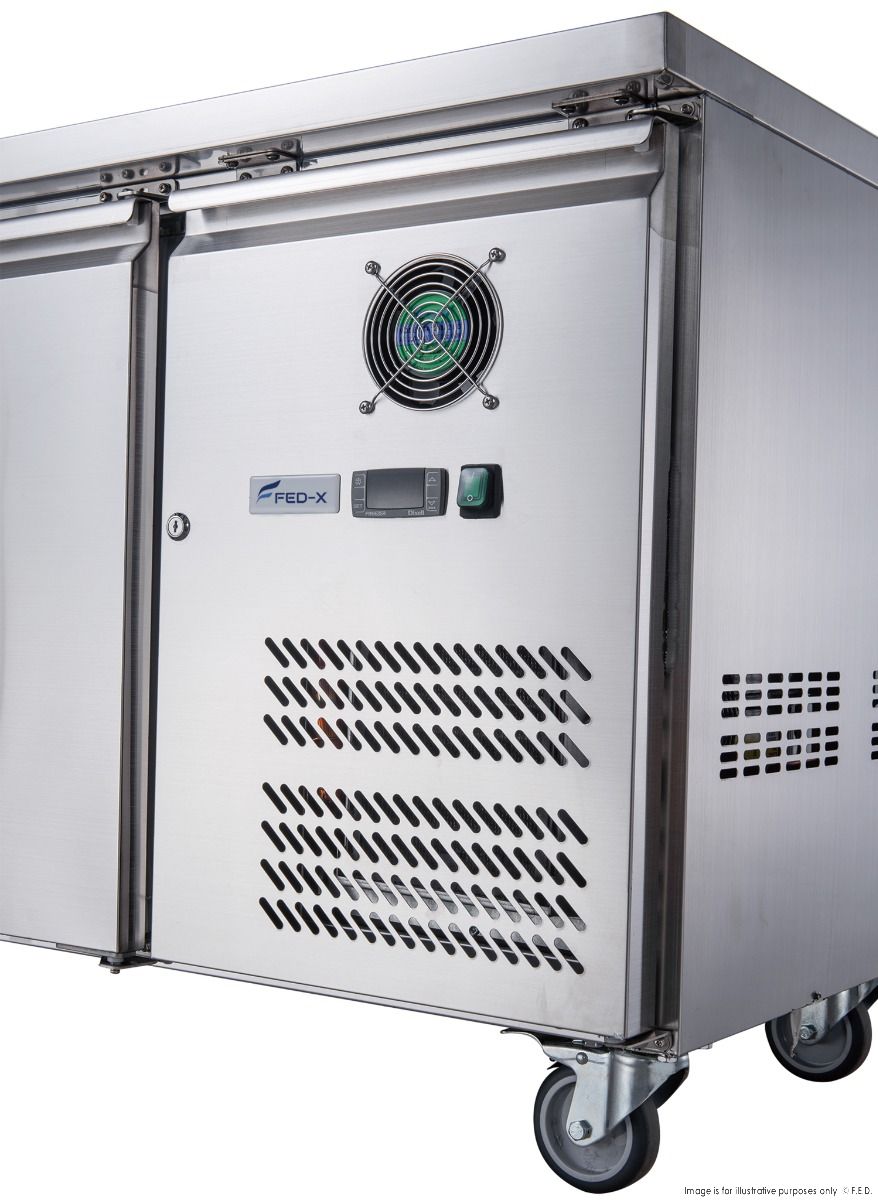

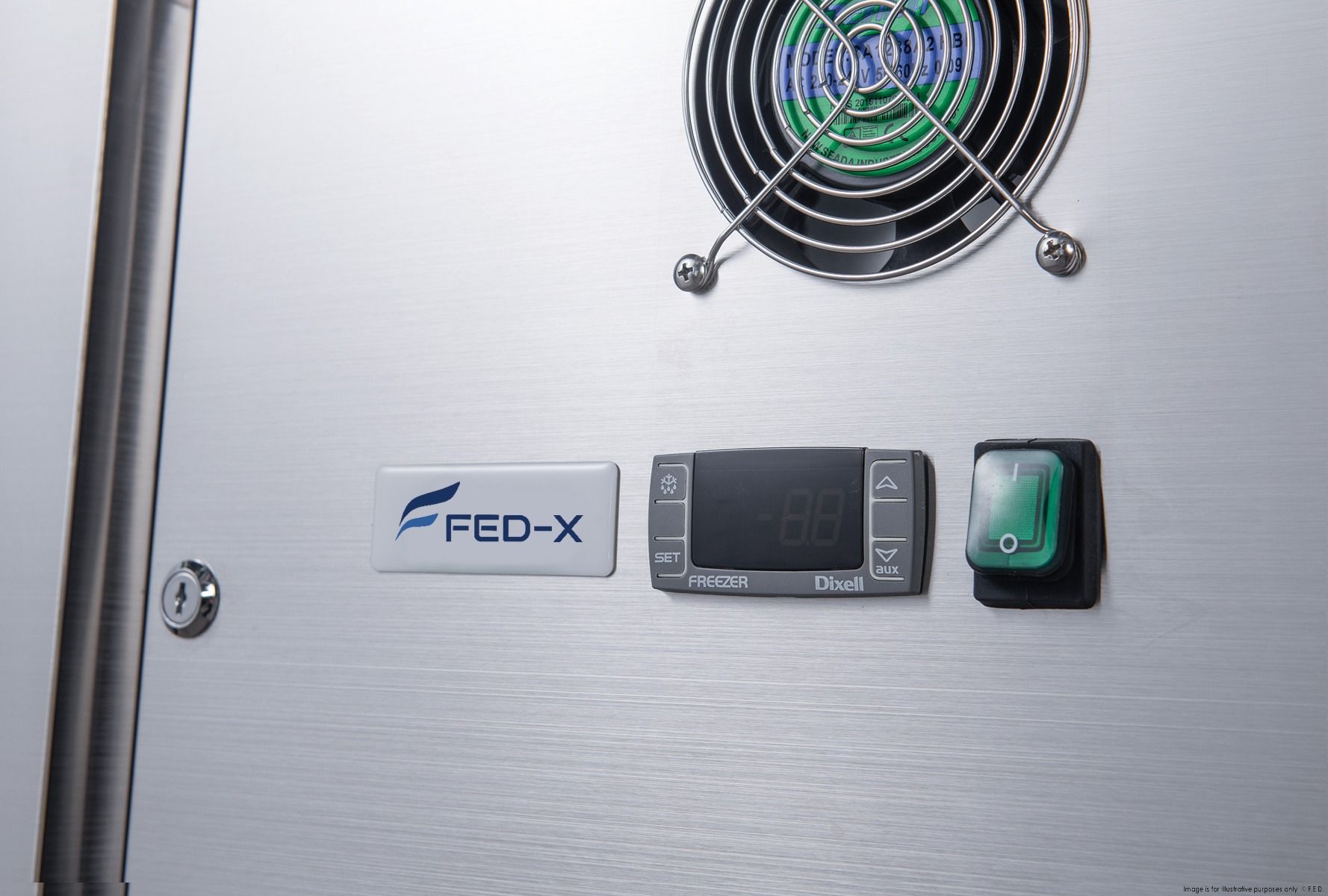

• Dixell digital controller with single-degree temperature adjustment
• Full stainless steel interior and exterior construction
• Rounded internal corners for quick and thorough cleaning

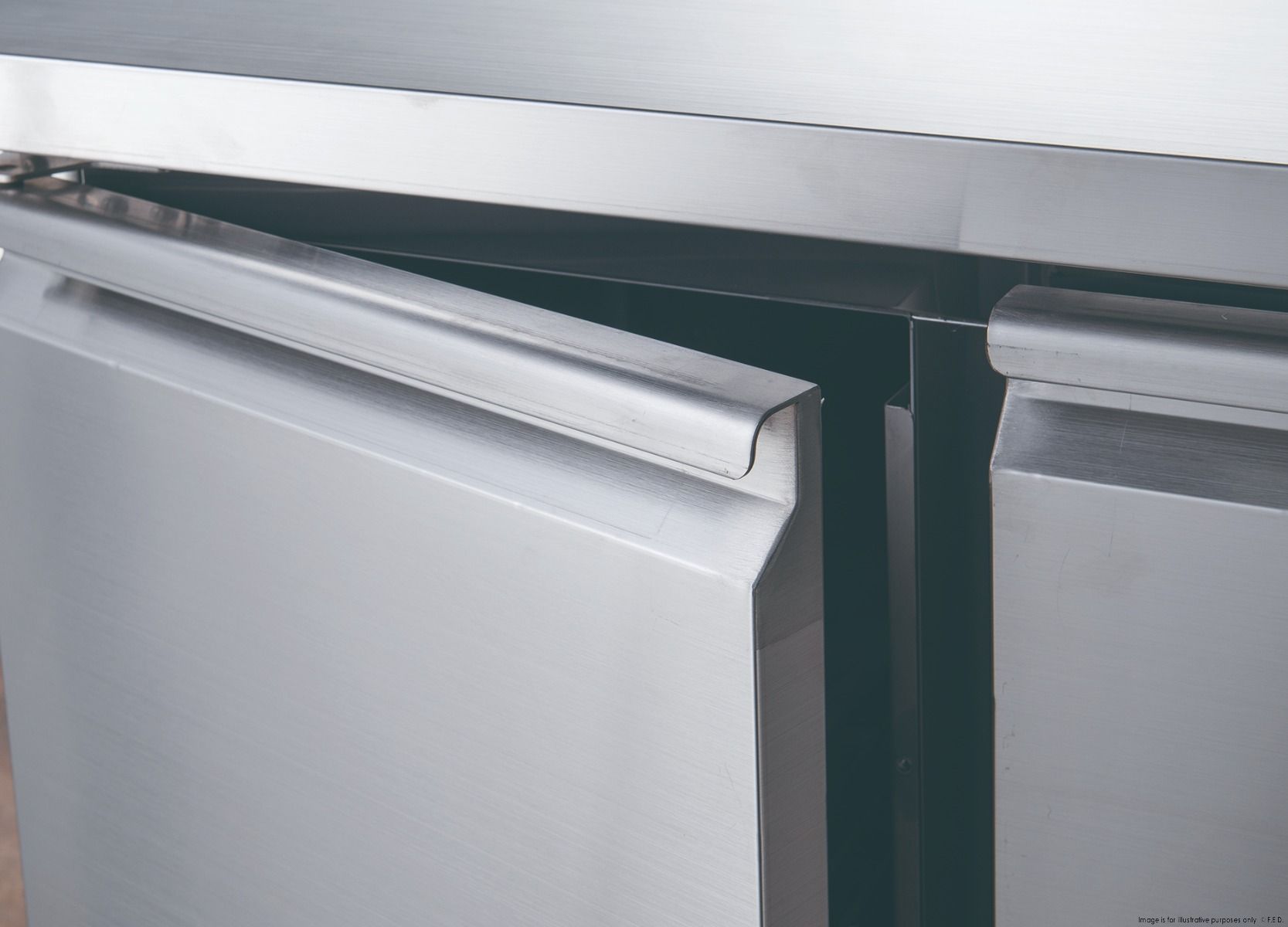

• Three self-closing doors fitted with heavy-duty magnetic door seals
• One GN1/1 compatible shelf per door section; additional slides available
• 60mm HFC and CFC free foam body insulation
• R290 refrigerant
• Embraco/Secop compressor
• Auto defrost with self-evaporating drainage
• Stainless steel worktop suitable for food preparation
• Heavy-duty castors with front-wheel brakes for easy mobility and cleaning access
• Designed to be placed against the wall; requires 100mm wall clearance for ventilation
• Tropicalised for Australian conditions; rated to 38°C ambient at 60% RH
• Maximum shelf load 40kg per shelf
• Internal dimensions: 1234mm W x 580mm D x 564mm H
• Power supply: 240V; 560W / 3.4A
• Optional splashback tops, and 2 or 3-drawer units available in lieu of doors upon request
• Warranty: 2 years parts and labour plus 2 years parts only when registered within 14 days of invoice
• Meets food, health, and safety standards

Specifications

• Width (mm): 1795
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 165
• Packed Width (mm): 1825
• Packed Depth (mm): 730
• Packed Height (mm): 910
• Shipping Weight: 146
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• No. of Doors: 5713
• Cooling Type: Fan Forced
• Power Delivery: 240V; 560W/3.4A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 417
